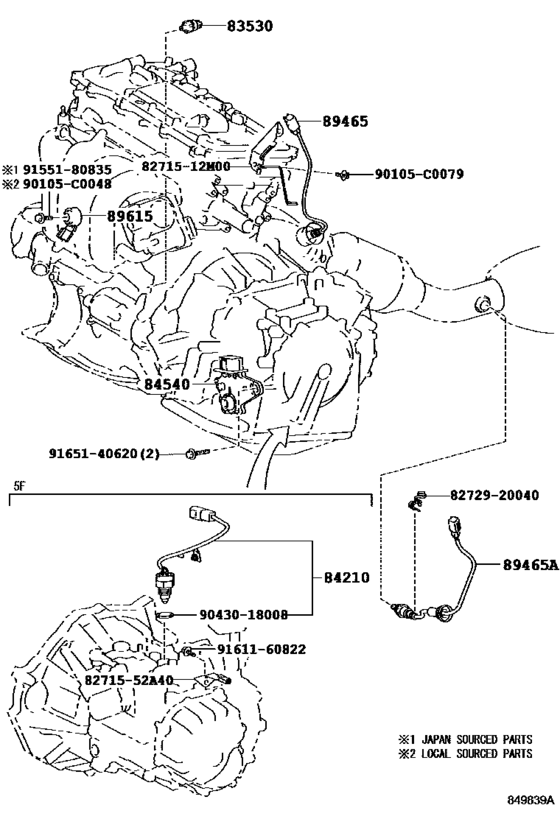

Switch & Relay & Computer ([05.2008 - ] ENGINE & TRANSMISSION (0805- )ZSP91) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.2008 -] NCP90,ZSP91..STD DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2008 -] NCP90,ZSP91..STD DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.2008 -] NCP90,ZSP91..STD DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2008 -] NCP90,ZSP91..STD YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-52080 Switch Assy, Neutral Start[05.2008 - 08.2013] ZSP91..4FC |
84540-52080 |
US $232.96 |
||
|
89465
|
89465
89465-12880
Sensor, Oxygen
[05.2008 - 02.2011] ZSP91 |
89465-12880 |
— | ||
|
89465
|
89465
89467-52060 Sensor, OxygenAIR FUEL RATIO [02.2011 -] ZSP91 |
89467-52060 |
from US $146.52 |
||
|
89465A
|
89465A
89465-0D200
Sensor, Oxygen No.2
[05.2008 -] ZSP91 |
89465-0D200 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[05.2008 -] NCP90,ZSP91..STD |
89615-20090 |
from US $36.02 |
||
|
90105C0048
|
90105C0048
90105-C0048
New Genuine Part
|
90105-C0048 |
— | ||
|
90105C0079
|
90105C0079
90105-C0079
New Genuine Part
|
90105-C0079 |
— | ||
|
8271512M00
|
8271512M00
82715-12M00
Bracket,wiring Harness Clamp
|
82715-12M00 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8272920040
|
8272920040
82729-20040 New Genuine Part |
82729-20040 |
US $2.91 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
