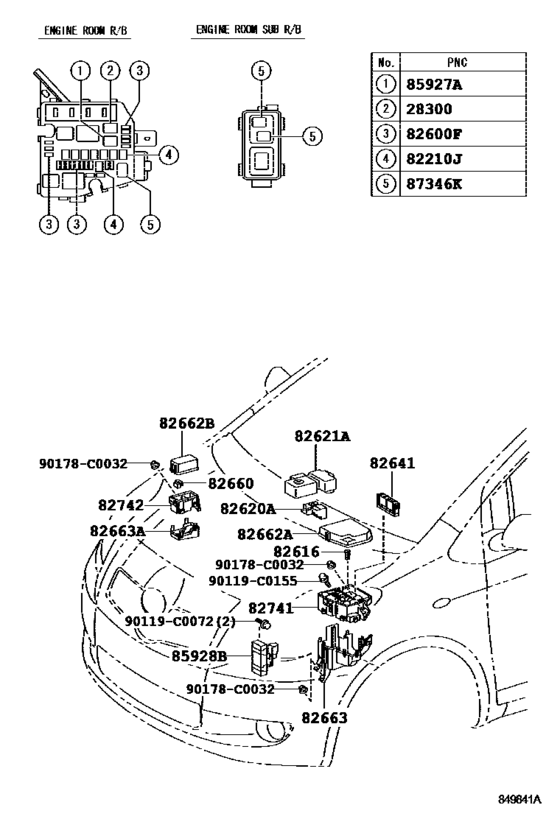

Switch & Relay & Computer ([05.2008 - ] ENGINE ROOM (0805- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[05.2008 -] 2NZFE,1ZRFE..NCP90,ZSP91..STD |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[05.2008 -] 2NZFE,1ZRFE..NCP90,ZSP91..STD |
28300-21020 |
from US $40.58 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[05.2008 -] NCP90,ZSP91 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[05.2008 -] NCP90,ZSP91 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[05.2008 -] NCP90,ZSP91 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[05.2008 -] NCP90,ZSP91 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[05.2008 -] NCP90,ZSP91 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[05.2008 -] NCP90,ZSP91 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-52050 Block Assy, Fusible Link[05.2008 -] NCP90,ZSP91 |
82620-52050 |
from US $9.77 |
||
|
82621A
|
82621A
82621-52120 Cover, Fusible Link[05.2008 -] NCP90,ZSP91 |
82621-52120 |
from US $25.56 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[05.2008 -] NCP90,ZSP91 |
82641-47020 |
from US $79.92 |
||
|
82660
|
82660
82660-52010 Block Assy, Relay[05.2008 -] NCP90,ZSP91 |
82660-52010 |
US $7.13 |
||
|
82662A
|
82662A
82662-52540
Cover, Relay Block, Upper, No.1
[05.2008 -] NCP90,ZSP91 |
82662-52540 |
— | ||
|
82662B
|
82662B
82662-52550
Cover, Relay Block, Upper, No.2
[05.2008 -] NCP90,ZSP91 |
82662-52550 |
— | ||
|
82663
|
82663
82663-52031 Cover, Relay Block, Lower[05.2008 -] NCP90,ZSP91 |
82663-52031 |
US $45.25 |
||
|
82663A
|
82663A
82663-52060 Cover, Relay Block, Lower, No.2[05.2008 -] NCP90,ZSP91 |
82663-52060 |
US $6.41 |
||
|
82741
|
82741
82741-52031 Block, Engine Room Relay[05.2008 -] NCP90,ZSP91 |
82741-52031 |
US $57.22 |
||
|
82742
|
82742
82741-52050 Block, Engine Room Relay, No.2[05.2008 -] NCP90,ZSP91 |
82741-52050 |
US $13.54 |
||
|
85927A
|
85927A
90987-T4001
Relay Assy, Starter
[05.2008 -] NCP90,ZSP91..STD |
90987-T4001 |
— | ||
|
85928B
|
85928B
85928-52030
Resistor, Cooling Fan
[05.2008 -] NCP90,ZSP91..STD |
85928-52030 |
— | ||
| replacement | |||||
|
85928B
|
85928B
85928-52032 Resistor, Cooling Fan[05.2008 -] NCP90,ZSP91..STD |
85928-52032 |
from US $71.90 |
||
|
87346K
|
87346K
90987-T2005
Relay, Water Pump
[05.2008 -] NCP90,ZSP91..STD |
90987-T2005 |
— | ||
|
90119C0072
|
90119C0072
90119-C0072
New Genuine Part
|
90119-C0072 |
— | ||
|
90119C0155
|
90119C0155
90119-C0155
New Genuine Part
|
90119-C0155 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
