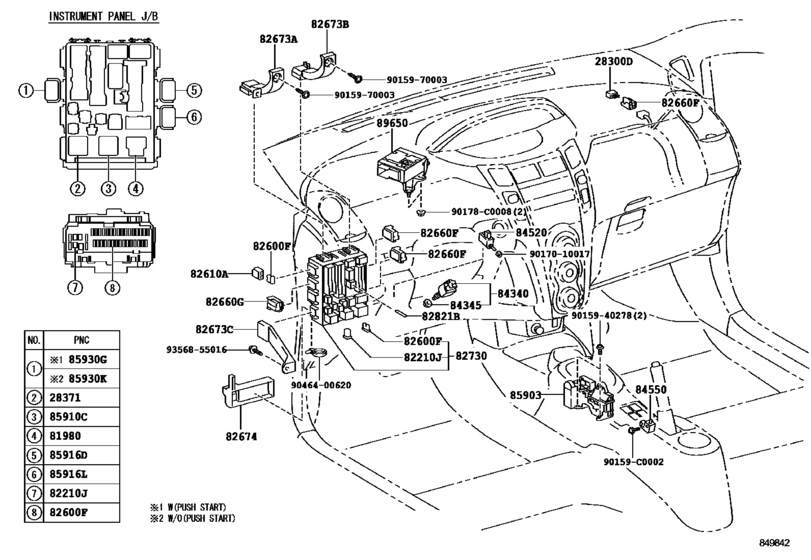

Switch & Relay & Computer ([05.2008 - ] COWL (0805- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300D
|
28300D
90987-T2005
Relay, Water Pump
[05.2008 - 08.2010] 1ZRFE..ZSP91..RS; 1ZRFE..ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
90987-T2005 |
— | ||
|
28371
|
28371
90987-C2001
Relay, Ignition, No.1
[05.2008 -] 2NZFE,1ZRFE..NCP90,ZSP91..STD |
90987-C2001 |
— | ||
|
81980
|
81980
81980-0D030
Flasher Assy, Turn Signal
[05.2008 -] NCP90,ZSP91..STD |
81980-0D030 |
— | ||
|
82210J
|
82210J
90982-08294 Fusible Link[05.2008 -] NCP90,ZSP91 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[05.2008 -] NCP90,ZSP91 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[05.2008 -] NCP90,ZSP91 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[05.2008 -] NCP90,ZSP91 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[05.2008 -] NCP90,ZSP91 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[05.2008 -] NCP90,ZSP91 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82610A
|
82610A
82610-52010 Block Assy, Fuse[05.2008 -] NCP90,ZSP91..STD |
82610-52010 |
US $3.06 |
||
|
82660F
|
82660F
82660-52030 Block Assy, Relay[05.2008 -] NCP90,ZSP91..STD |
82660-52030 |
US $5.82 |
||
|
82660G
|
82660G
82660-52030 Block Assy, Relay[05.2008 - 08.2010] ZSP91..RS; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
82660-52030 |
US $5.82 |
||
|
82660G
|
82660G
82660-52040 Block Assy, Relay[05.2008 -] NCP90,ZSP91..STD |
82660-52040 |
US $6.41 |
||
|
82673A
|
82673A
82673-52050 Bracket, Junction BlockJUNCTION BLOCK [05.2008 -] NCP90,ZSP91..STD |
82673-52050 |
US $13.69 |
||
|
82673B
|
82673B
82673-52060 Bracket, Junction BlockJUNCTION BLOCK [05.2008 -] NCP90,ZSP91..STD |
82673-52060 |
US $12.81 |
||
|
82673C
|
82673C
82673-52070 Bracket, Junction BlockJUNCTION BLOCK [05.2008 -] NCP90,ZSP91..STD |
82673-52070 |
US $9.61 |
||
|
82674
|
82674
82674-46010 Cover, Junction Block Lower[05.2008 -] NCP90,ZSP91..STD |
82674-46010 |
US $6.41 |
||
|
82730
|
82730
82730-0D210
Block Assy, Instrument Panel Junction
[05.2008 -] NCP90,ZSP91..STD |
82730-0D210 |
— | ||
|
82730
|
82730
82730-0D230
Block Assy, Instrument Panel Junction
[05.2008 - 08.2010] ZSP91..4FC..RS; ZSP91..4FC..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
82730-0D230 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-0D231
Block Assy, Instrument Panel Junction
[05.2008 - 08.2010] ZSP91..4FC..RS; ZSP91..4FC..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
82730-0D231 |
— | ||
|
82730
|
82730
82730-0D231
Block Assy, Instrument Panel Junction
[11.2012 -] ZSP91..4FC 1.6GS GRADE |
82730-0D231 |
— | ||
|
82821B
|
82821B
82821-52020 Cover, Connector[05.2008 -] NCP90,ZSP91..STD |
82821-52020 |
US $0.44 |
||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[10.2009 -] NCP90,ZSP91..STD |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[10.2009 -] NCP90,ZSP91..STD |
84340-19026 |
from US $21.28 |
||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[05.2008 - 10.2009] NCP90,ZSP91 |
84340-69025 |
from US $26.56 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[05.2008 -] NCP90,ZSP91..STD |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[05.2008 - 08.2013] NCP90,ZSP91 |
84550-33010 |
from US $18.39 |
||
|
85903
|
85903
85903-60020 Computer Sub-Assy, Shift Lock ControlSHIFT LOCK CONTROL [05.2008 - 08.2013] NCP90,ZSP91..4FC |
85903-60020 |
US $160.74 |
||
|
85910C
|
85910C
90987-T4002
Relay Assy (For Heater Blower Motor)
[05.2008 -] NCP90,ZSP91..STD |
90987-T4002 |
— | ||
|
85916D
|
85916D
90987-T2005
Relay, Water Pump
[05.2008 -] ZSP91..STD; ZSP91..STD 1.6E GRADE |
90987-T2005 |
— | ||
|
85916L
|
85916L
90987-T2005
Relay, Water Pump
[05.2008 -] NCP90,ZSP91..STD |
90987-T2005 |
— | ||
|
85930G
|
85930G
90987-T2005
Relay, Water Pump
[05.2008 - 08.2010] ZSP91..RS; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
90987-T2005 |
— | ||
|
85930K
|
85930K
90987-T4001
Relay Assy, Starter
[05.2008 -] NCP90,ZSP91..STD; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
90987-T4001 |
— | ||
|
89650
|
89650
89650-0D150
Computer Assy, Power Steering
[05.2008 - 04.2012] NCP90,ZSP91 |
89650-0D150 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-0D151
Computer Assy, Power Steering
[05.2008 - 04.2012] NCP90,ZSP91 |
89650-0D151 |
— | ||
|
89650
|
89650
89650-0D151
Computer Assy, Power Steering
[05.2012 -] NCP90,ZSP91 |
89650-0D151 |
— | ||
|
90159C0002
|
90159C0002
90159-C0002
New Genuine Part
|
90159-C0002 |
— | ||
|
90178C0008
|
90178C0008
90178-C0008
New Genuine Part
|
90178-C0008 |
— | ||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9046400620
|
9046400620
90464-00620 New Genuine Part |
90464-00620 |
US $1.92 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
