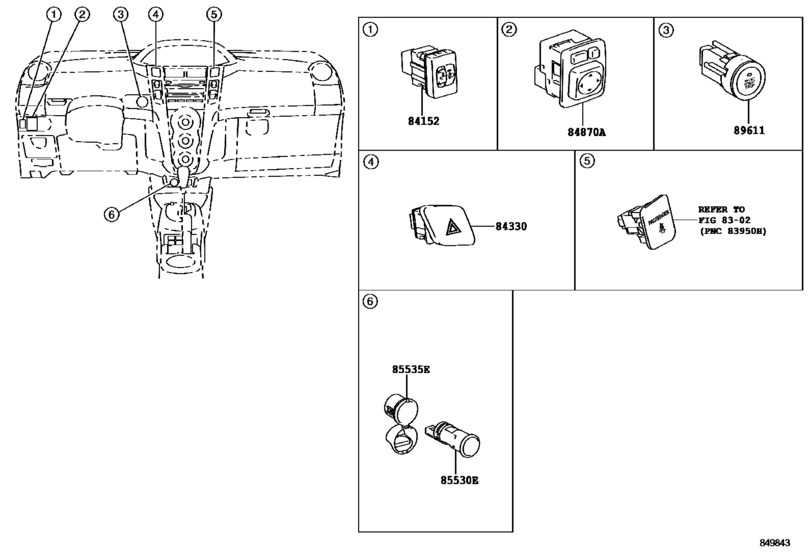

Switch & Relay & Computer ([05.2008 - ] INSTRUMENT PANEL (0805- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-0D060
Switch, Headlamp Leveling
[05.2008 -] NCP90,ZSP91..STD |
84152-0D060 |
— | ||
|
84330
|
84330
84332-0D040
Switch Assy, Hazard Warning Signal
[05.2008 -] NCP90,ZSP91..STD |
84332-0D040 |
— | ||
|
84870A
|
84870A
84870-0D060
Switch Assy, Outer Mirror
[05.2008 - 08.2010] ZSP91 |
84870-0D060 |
— | ||
|
84870A
|
84870A
84870-0D070
Switch Assy, Outer Mirror
[03.2009 - 08.2010] ZSP91..STD 1.6E GRADE |
84870-0D070 |
— | ||
|
85530E
|
85530E
85530-06040
Socket Assy, Power Outlet, No.1
[05.2008 -] NCP90,ZSP91..STD |
85530-06040 |
— | ||
|
85535E
|
85535E
85535-0D040
Cover, Power Outlet Socket, No.1
[05.2008 -] NCP90,ZSP91..STD |
85535-0D040 |
— | ||
|
89611
|
89611
89611-0D020
Switch, Push Start
[05.2008 - 08.2010] ZSP91..RS; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
89611-0D020 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0D023
Switch, Push Start
[05.2008 - 08.2010] ZSP91..RS; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START) |
89611-0D023 |
— | ||
|
89611
|
89611
89611-0D021
Switch, Push Start
[05.2011 - 04.2012] ZSP91..4FC 1.6GS GRADE |
89611-0D021 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0D023
Switch, Push Start
[05.2011 - 04.2012] ZSP91..4FC 1.6GS GRADE |
89611-0D023 |
— | ||
|
89611
|
89611
89611-0D022
Switch, Push Start
[05.2012 -] ZSP91..4FC 1.6GS GRADE |
89611-0D022 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0D023
Switch, Push Start
[05.2012 -] ZSP91..4FC 1.6GS GRADE |
89611-0D023 |
— | ||
