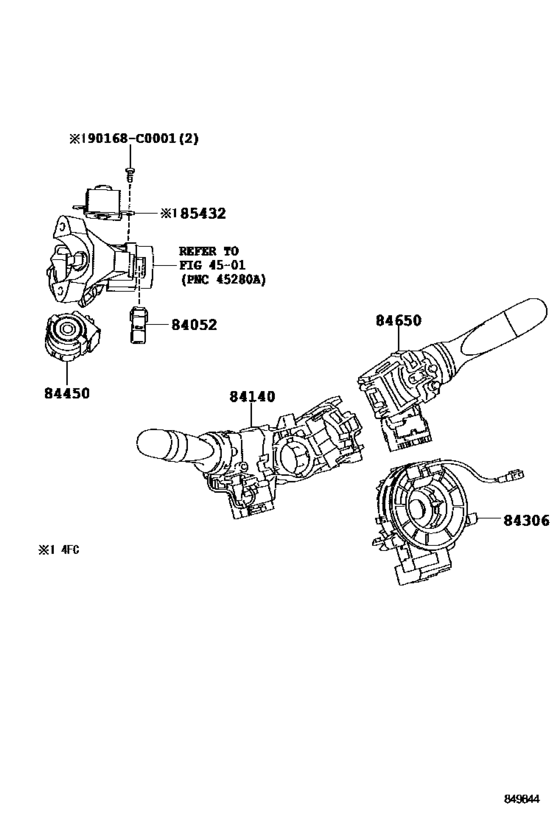

Switch & Relay & Computer ([05.2008 - ] STEERING (0805- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-06010
Switch Assy, Un-Lock Warning
[05.2008 - 08.2013] NCP90,ZSP91..STD; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START); ZSP91..4FC..STD 1.6GS GRADE |
84052-06010 |
— | ||
|
84140
|
84140
84140-0D280
Switch Assy, Headlamp Dimmer
[05.2008 - 10.2008] ZSP91 |
84140-0D280 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-0D281
Switch Assy, Headlamp Dimmer
[05.2008 - 10.2008] ZSP91 |
84140-0D281 |
— | ||
|
84140
|
84140
84140-0D281
Switch Assy, Headlamp Dimmer
[10.2008 -] ZSP91..STD |
84140-0D281 |
— | ||
|
84140
|
84140
84140-0D291
Switch Assy, Headlamp Dimmer
[03.2009 -] ZSP91..STD 1.6E GRADE |
84140-0D291 |
— | ||
|
84306
|
84306
84306-02190
Cable Sub-Assy, Spiral
[05.2008 -] NCP90,ZSP91..STD |
84306-02190 |
— | ||
|
84450
|
84450
84450-06010
Switch Assy, Ignition Or Starter
[05.2008 - 08.2013] NCP90,ZSP91..STD; ZSP91..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START); ZSP91..4FC..STD 1.6GS GRADE |
84450-06010 |
— | ||
|
84650
|
84650
84652-0D160
Switch Assy, Windshield Wiper
[05.2008 - 10.2008] NCP90,ZSP91 |
84652-0D160 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-0D161
Switch Assy, Windshield Wiper
[05.2008 - 10.2008] NCP90,ZSP91 |
84652-0D161 |
— | ||
|
84650
|
84650
84652-0D161
Switch Assy, Windshield Wiper
[10.2008 -] NCP90,ZSP91..STD |
84652-0D161 |
— | ||
|
85432
|
85432
85432-02010
Solenoid, Key Inter Lock
[05.2008 - 08.2013] NCP90,ZSP91..4FC..STD; ZSP91..4FC..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START); ZSP91..4FC..STD 1.6GS GRADE |
85432-02010 |
— | ||
| replacement | |||||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[05.2008 - 08.2013] NCP90,ZSP91..4FC..STD; ZSP91..4FC..STD WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START); ZSP91..4FC..STD 1.6GS GRADE |
85432-71010 |
US $40.33 |
||
|
90168C0001
|
90168C0001
90168-C0001
New Genuine Part
|
90168-C0001 |
— | ||
