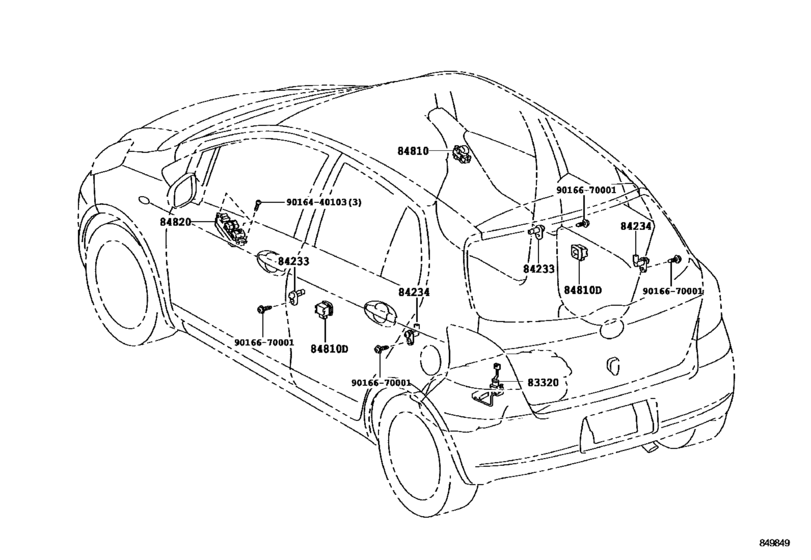

Switch & Relay & Computer ([05.2008 - ] DOOR,ROOF,FLOOR & BACK DOOR (0805- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D070
Gage Assy, Fuel Sender
[05.2008 - 08.2013] NCP90,ZSP91 |
83320-0D070 |
— | ||
|
84233
|
84233
84231-0D090
Switch Assy, Courtesy Lamp (For Front Door)
[01.2012 -] NCP90,ZSP91 |
84231-0D090 |
— | ||
|
84233
|
84233
84231-52010 Switch Assy, Courtesy Lamp (For Front Door)[05.2008 - 01.2012] NCP90,ZSP91 |
84231-52010 |
US $10.56 |
||
|
84234
|
84234
84231-0D100
Switch Assy, Courtesy Lamp (For Rear Door)
[01.2012 -] NCP90,ZSP91 |
84231-0D100 |
— | ||
|
84234
|
84234
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[05.2008 - 01.2012] NCP90,ZSP91 |
84231-52020 |
from US $10.56 |
||
|
84810
|
84810
84810-06060
Switch Assy, Power Window Regulator
[05.2008 -] NCP90,ZSP91..STD |
84810-06060 |
— | ||
|
84810D
|
84810D
84810-52040-B0 Switch Assy, Power Window Regulator, Rear[05.2008 - 08.2013] NCP90 DK.GRAY,TRIM4#; ZSP91..STD DK.GRAY,TRIM1#,4# |
84810-52040-B0 |
US $50.32 |
||
|
84820
|
84820
84820-0D180
Master Switch Assy, Power Window Regulator
[05.2008 -] NCP90,ZSP91..STD |
84820-0D180 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
