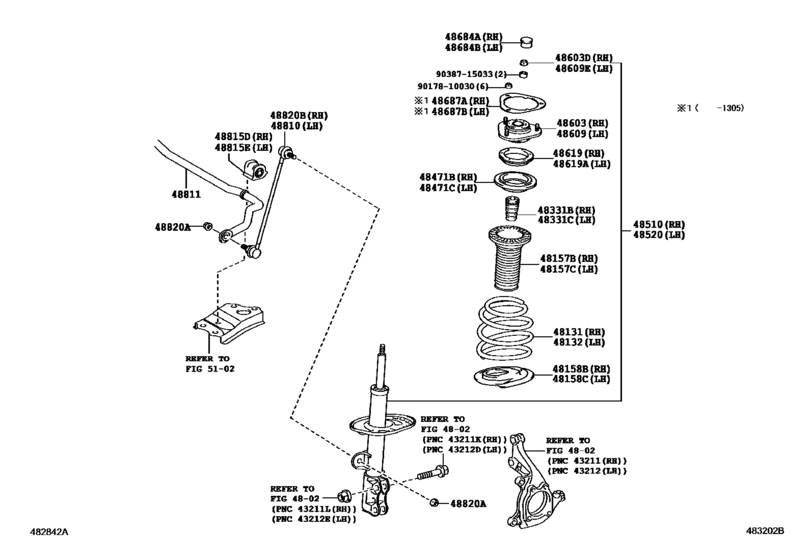

Front Spring & Shock Absorber ([08.2010 - ] (1008- )) Diagram Toyota ZELAS
- Year
- 2011 - 2014
- Sales region
- General
- Frame
- AGT20
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 02.2011
- To
- 05.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- ZELAS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-21420
Spring, Front Coil, Rh
[08.2010 - 06.2013] AGT20 |
48131-21420 |
— | ||
|
48132
|
48132
48131-21420
Spring, Front Coil, Rh
[08.2010 - 06.2013] AGT20 |
48131-21420 |
— | ||
|
48157B
|
48157B
48157-21020 Insulator, Front Coil Spring, Upper Rh[08.2010 - 06.2013] AGT20 |
48157-21020 |
US $22.27 |
||
|
48157C
|
48157C
48157-21020 Insulator, Front Coil Spring, Upper Rh[08.2010 - 06.2013] AGT20 |
48157-21020 |
US $22.27 |
||
|
48158B
|
48158B
48158-21010 Insulator, Front Coil Spring, Lower Rh[08.2010 - 06.2013] AGT20 |
48158-21010 |
US $26.14 |
||
|
48158C
|
48158C
48158-21010 Insulator, Front Coil Spring, Lower Rh[08.2010 - 06.2013] AGT20 |
48158-21010 |
US $26.14 |
||
|
48331B
|
48331B
48331-21030 Bumper, Front Spring, Rh[08.2010 - 06.2013] AGT20 |
48331-21030 |
from US $9.01 |
||
|
48331C
|
48331C
48331-21030 Bumper, Front Spring, Rh[08.2010 - 06.2013] AGT20 |
48331-21030 |
from US $9.01 |
||
|
48471B
|
48471B
48471-42010 Seat, Front Coil Spring, Upper[08.2010 - 06.2013] AGT20 |
48471-42010 |
US $15.20 |
||
|
48471C
|
48471C
48471-42010 Seat, Front Coil Spring, Upper[08.2010 - 06.2013] AGT20 |
48471-42010 |
US $15.20 |
||
|
48510
|
48510
48510-80537
Absorber Assy, Shock, Front Rh
[08.2010 - 06.2013] AGT20 MARK 48510-21220 |
48510-80537 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80641
Absorber Assy, Shock, Front Rh
[08.2010 - 06.2013] AGT20 MARK 48510-21220 |
48510-80641 |
— | ||
|
48510
|
48510
48510-80641
Absorber Assy, Shock, Front Rh
[05.2013 - 07.2016] AGT20 MARK 48510-21240 |
48510-80641 |
— | ||
|
48520
|
48520
48520-80262
Absorber Assy, Shock, Front Lh
[08.2010 - 06.2013] AGT20 MARK 48520-21220 |
48520-80262 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80344 Absorber Assy, Shock, Front Lh[08.2010 - 06.2013] AGT20 MARK 48520-21220 |
48520-80344 |
US $210.17 |
||
|
48520
|
48520
48520-80344 Absorber Assy, Shock, Front Lh[05.2013 - 07.2016] AGT20 MARK 48520-21240 |
48520-80344 |
US $210.17 |
||
|
48603
|
48603
48609-21070 Support Sub-Assy, Front Suspension, Rh[08.2010 - 06.2013] AGT20 |
48609-21070 |
US $88.08 |
||
|
48603D
|
48603D
90177-14005 Nut(For Front Support To Front Shock Absorber)[08.2010 - 06.2013] AGT20 |
90177-14005 |
US $1.92 |
||
|
48609
|
48609
48609-21070 Support Sub-Assy, Front Suspension, Rh[08.2010 - 06.2013] AGT20 |
48609-21070 |
US $88.08 |
||
|
48609E
|
48609E
90177-14005 Nut(For Front Support To Front Shock Absorber)[08.2010 - 06.2013] AGT20 |
90177-14005 |
US $1.92 |
||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[08.2010 - 06.2013] AGT20 |
48619-28010 |
from US $14.72 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[08.2010 - 06.2013] AGT20 |
48619-28010 |
from US $14.72 |
||
|
48684A
|
48684A
48684-42010 Cover, Front Suspension Support Dust, Rh[08.2010 - 06.2013] AGT20 |
48684-42010 |
US $16.11 |
||
|
48684B
|
48684B
48684-42010 Cover, Front Suspension Support Dust, Rh[08.2010 - 06.2013] AGT20 |
48684-42010 |
US $16.11 |
||
|
48687A
|
48687A
48687-28010 Plate, Front Suspension Support[08.2010 - 06.2013] AGT20 |
48687-28010 |
from US $4.06 |
||
|
48687B
|
48687B
48687-28010 Plate, Front Suspension Support[08.2010 - 06.2013] AGT20 |
48687-28010 |
from US $4.06 |
||
|
48810
|
48810
48820-42030 Link Assy, Front Stabilizer[08.2010 - 06.2013] AGT20 |
48820-42030 |
from US $53.92 |
||
|
48811
|
48811
48811-47070 Bar, Stabilizer, FrontSTABILIZER, FRONT [08.2010 - 06.2013] AGT20 |
48811-47070 |
US $110.66 |
||
|
48815D
|
48815D
48815-42080 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [08.2010 - 06.2013] AGT20 |
48815-42080 |
from US $20.63 |
||
|
48815E
|
48815E
48815-42070 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [08.2010 - 06.2013] AGT20 |
48815-42070 |
from US $19.40 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[08.2010 - 06.2013] AGT20 |
90179-12151 |
from US $0.96 |
||
|
48820B
|
48820B
48820-42030 Link Assy, Front Stabilizer[08.2010 - 06.2013] AGT20 |
48820-42030 |
from US $53.92 |
||
|
9017810030
|
9017810030
90178-10030 Nut(For Front Suspension Support) |
90178-10030 |
from US $0.92 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.20 |
||
