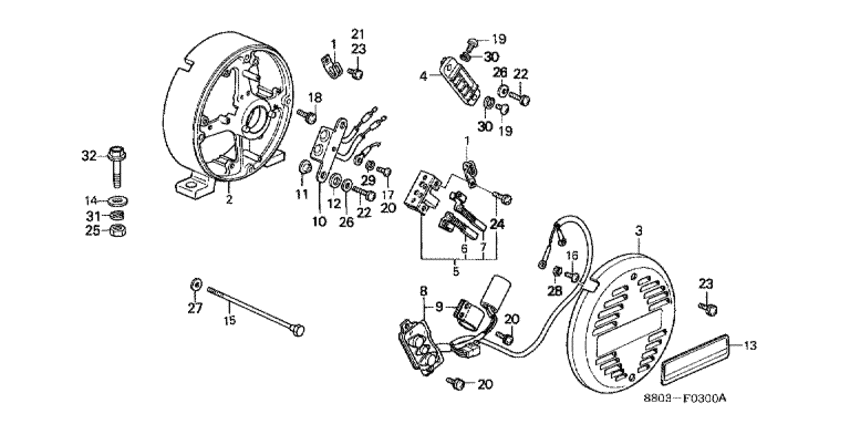

Brush holder/d.c. diode Diagram Honda E3500
- Sales region
- General
- Frame
- 8801000001 - 8801029061
- Engine
- G801000001 - G801060568
- Note
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30564-871-601 Clamper b, cord |
30564-871-601 |
US $9.21 |
||
|
2
|
2
31108-880-000XC
Housing comp., rr.
|
31108-880-000XC |
— | ||
|
3
|
3
31113-877-158-H
Cover, generator end
|
31113-877-158-H |
— | ||
|
4
|
4
31118-880-000 Terminal, a.c. out |
31118-880-000 |
US $60.83 |
||
|
5
|
5
31120-880-000
Holder assy., brush
|
31120-880-000 |
— | ||
|
6
|
6
31122-880-000 Brush comp. |
31122-880-000 |
US $29.61 |
||
|
7
|
7
31128-880-000 Brush comp. |
31128-880-000 |
US $29.61 |
||
|
8
|
8
31410-880-003
Regulator assy., automatic voltage
|
31410-880-003 |
— | ||
|
9
|
9
31427-880-000 Holder, condenser |
31427-880-000 |
US $9.71 |
||
|
10
|
10
31700-880-000
Diode assy., d.c.
|
31700-880-000 |
— | ||
|
11
|
11
31706-880-000 Bush, insulating |
31706-880-000 |
US $9.32 |
||
|
12
|
12
31707-880-000 Washer, insulating |
31707-880-000 |
US $2.11 |
||
|
13
|
13
87551-880-650
Plate, description
|
87551-880-650 |
— | ||
|
14
|
14
90501-579-020 WasherEX. MANIFOLD |
90501-579-020 |
US $8.65 |
||
|
15
|
15
92000-06190-1H Bolt, hex., 6x190 |
92000-06190-1H |
US $1.85 |
||
|
16
|
16
93500-040-083-J Screw, pan, 4x8 |
93500-040-083-J |
from US $0.52 |
||
|
17
|
17
93500-050-083-J Screw, pan, 5x8 |
93500-050-083-J |
from US $0.52 |
||
|
19
|
19
93500-060-083-J Screw, pan, 6x8 |
93500-060-083-J |
from US $0.81 |
||
|
20
|
20
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
21
|
21
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
22
|
22
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
23
|
23
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
25
|
25
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
26
|
26
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
28
|
28
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
29
|
29
94111-05800 WasherSPRING, 5MM |
94111-05800 |
from US $0.37 |
||
|
30
|
30
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
31
|
31
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
32
|
32
95800-10032 Bolt, flange, 10x32 |
95800-10032 |
US $0.81 |
