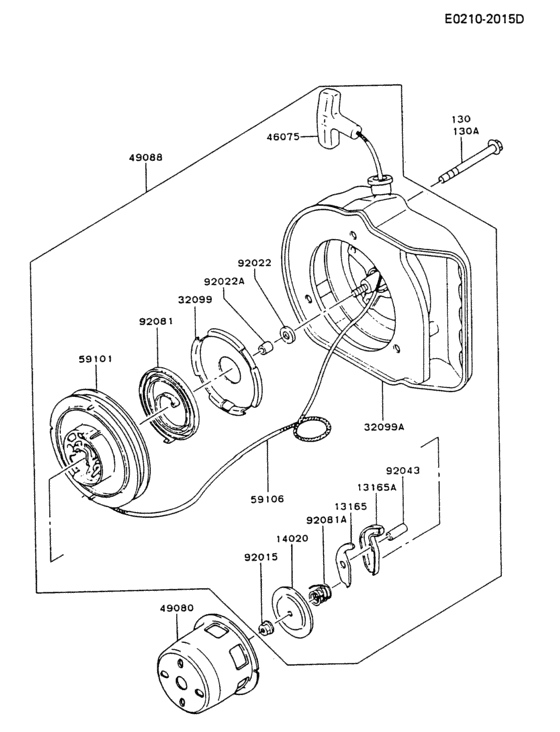

Starter Diagram Kawasaki GA2300A
- Engine Capacity
- 30
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0662 Bolt-flanged |
130C0662 |
US $6.10 |
||
| replacements | |||||
|
130
|
130
186G0665
Bolt-upset-wp
|
186G0665 |
— | ||
|
130
|
130
130C0663
Bolt-flanged
|
130C0663 |
— | ||
|
13165
|
13165
13165-2056 PAWL, RECOIL |
13165-2056 |
US $3.76 |
||
|
13165A
|
13165A
13165-2055 PAWL, RECOIL |
13165-2055 |
US $7.63 |
||
|
14020
|
14020
14020-2053
RETAINER
|
14020-2053 |
— | ||
| replacement | |||||
|
14020
|
14020
14020-2104 RETAINER |
14020-2104 |
US $9.61 |
||
|
32099
|
32099
32099-2064 CASE |
32099-2064 |
US $14.33 |
||
|
32099A
|
32099A
32099-2057-9H CASE-RECOIL |
32099-2057-9H |
US $65.29 |
||
|
46075
|
46075
46075-2057
GRIP, RECOIL
|
46075-2057 |
— | ||
| replacement | |||||
|
46075
|
46075
46075-2060 GRIP, RECOIL |
46075-2060 |
US $6.28 |
||
|
49080
|
49080
49080-2122 PULLEY-RECOIL |
49080-2122 |
US $11.11 |
||
|
49088
|
49088
49088-2076-9H
RECOIL ASSY
|
49088-2076-9H |
— | ||
|
59101
|
59101
59101-2053 REEL, RECOIL |
59101-2053 |
US $29.20 |
||
|
59106
|
59106
59106-2003 ROPE (5X1300) |
59106-2003 |
US $14.17 |
||
|
92015
|
92015
92015-2126 NUT |
92015-2126 |
US $0.76 |
||
| replacement | |||||
|
92015
|
92015
92015-2316 NUT |
92015-2316 |
US $0.76 |
||
|
92022
|
92022
92022-2047 WASHER, THRUST |
92022-2047 |
US $7.75 |
||
|
92022A
|
92022A
92022-2059 WASHER |
92022-2059 |
US $2.88 |
||
|
92043
|
92043
92043-2104 PIN, PAWL |
92043-2104 |
US $3.62 |
||
|
92081
|
92081
92081-2265 SPRING, RECOIL |
92081-2265 |
US $19.42 |
||
|
92081A
|
92081A
92081-2264 SPRING |
92081-2264 |
US $9.11 |
||
