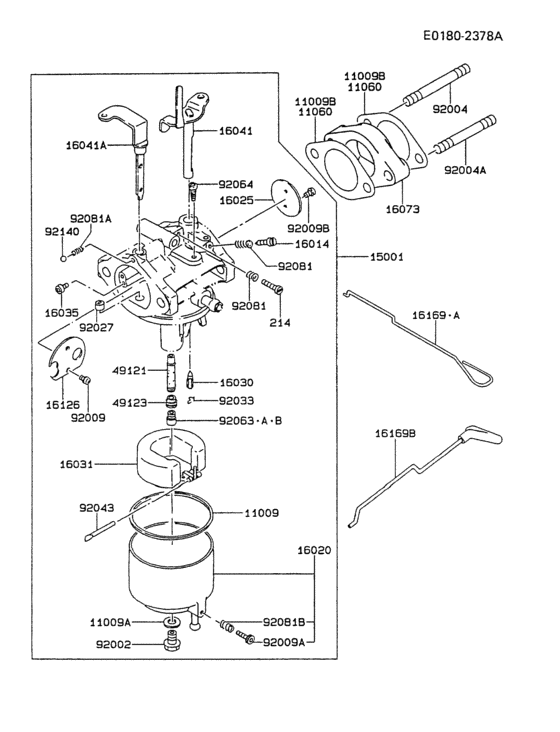

Carburetor Diagram Kawasaki GA3200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
214
|
214
214B0414 SCREW-PAN+- |
214B0414 |
US $0.45 |
||
| replacement | |||||
|
214
|
214
214AA0414 SCREW-PAN+- |
214AA0414 |
from US $0.78 |
||
|
11009
|
11009
11009-2024 GASKET |
11009-2024 |
from US $2.40 |
||
|
11009A
|
11009A
11009-2036 GASKET-FLOAT BOWL DRN |
11009-2036 |
US $5.95 |
||
|
11009B
|
11009B
11009-2114 GASKET |
11009-2114 |
US $8.90 |
||
| replacement | |||||
|
11009B
|
11009B
11060-2054
GASKET
|
11060-2054 |
— | ||
|
15001
|
15001
15001-2667
CARBURETOR ASSY.
|
15001-2667 |
— | ||
|
16014
|
16014
16014-2003 SCREW,PILOT |
16014-2003 |
US $10.26 |
||
|
16020
|
16020
16020-2092
CHAMBER-FLOAT
|
16020-2092 |
— | ||
|
16025
|
16025
16025-2051 VALVE, THROTTLE(#110) |
16025-2051 |
US $16.83 |
||
|
16030
|
16030
16030-2020 VALVE, NEEDLE |
16030-2020 |
US $16.27 |
||
|
16031
|
16031
16031-2006 FLOAT ASSY |
16031-2006 |
US $38.81 |
||
| replacement | |||||
|
16031
|
16031
16031-2065 FLOAT ASSY |
16031-2065 |
US $38.81 |
||
|
16035
|
16035
16035-2051 JET, AIR (#1.4) |
16035-2051 |
US $10.26 |
||
|
16041A
|
16041A
16041-2125 SHAFT-CHOKE |
16041-2125 |
US $17.62 |
||
|
16073
|
16073
16073-2053 INSULATOR |
16073-2053 |
US $9.18 |
||
|
16126
|
16126
16126-2054 VALVE, CHOKE |
16126-2054 |
US $6.95 |
||
|
16169A
|
16169A
16169-2106 LINK-CHOKE |
16169-2106 |
US $5.53 |
||
|
16169B
|
16169B
16169-2076 LINK-CHOKE |
16169-2076 |
US $5.53 |
||
| replacement | |||||
|
16169B
|
16169B
16169-2106 LINK-CHOKE |
16169-2106 |
US $5.53 |
||
|
49121
|
49121
49121-2051 NOZZLE, MAIN (#6A) |
49121-2051 |
US $25.88 |
||
|
49123
|
49123
49123-2015 HOLDER, MAIN JET |
49123-2015 |
US $22.55 |
||
|
92002
|
92002
92001-2045 BOLT |
92001-2045 |
US $6.10 |
||
|
92004
|
92004
92004-2086 STUD |
92004-2086 |
US $3.06 |
||
|
92004A
|
92004A
92004-2087 STUD |
92004-2087 |
US $4.72 |
||
| replacement | |||||
|
92004A
|
92004A
92004-2157 STUD |
92004-2157 |
US $4.72 |
||
|
92009
|
92009
92009-2081 SCREW |
92009-2081 |
from US $1.19 |
||
|
92009A
|
92009A
92009-2015 SCREW,DRAIN |
92009-2015 |
from US $3.11 |
||
|
92009B
|
92009B
92009-2080 SCREW |
92009-2080 |
US $1.48 |
||
| replacement | |||||
|
92009B
|
92009B
223B0306
SCREW-PAN-WS-CROS,3X6
|
223B0306 |
— | ||
|
92027
|
92027
92027-2003 COLLAR |
92027-2003 |
from US $2.65 |
||
|
92033
|
92033
92033-2067 CLIP |
92033-2067 |
from US $2.49 |
||
|
92043
|
92043
92043-2006 PIN,FLOAT |
92043-2006 |
from US $2.17 |
||
|
92063
|
92063
92063-2052 JET-MAIN #90 |
92063-2052 |
US $9.49 |
||
|
92063A
|
92063A
92063-2051 JET, MAIN (#87.5) |
92063-2051 |
US $9.49 |
||
|
92063B
|
92063B
92063-2094
JET-MAIN #91.3
|
92063-2094 |
— | ||
|
92064
|
92064
92064-2002 #45 |
92064-2002 |
US $15.26 |
||
|
92081
|
92081
92081-2008 SPRING |
92081-2008 |
from US $1.90 |
||
|
92081A
|
92081A
92081-2045 SPRING,THROTTLE |
92081-2045 |
US $12.05 |
||
|
92081B
|
92081B
92081-2009 SPRING |
92081-2009 |
from US $1.56 |
||
|
92140
|
92140
92140-2001 BALL |
92140-2001 |
US $5.60 |
||
