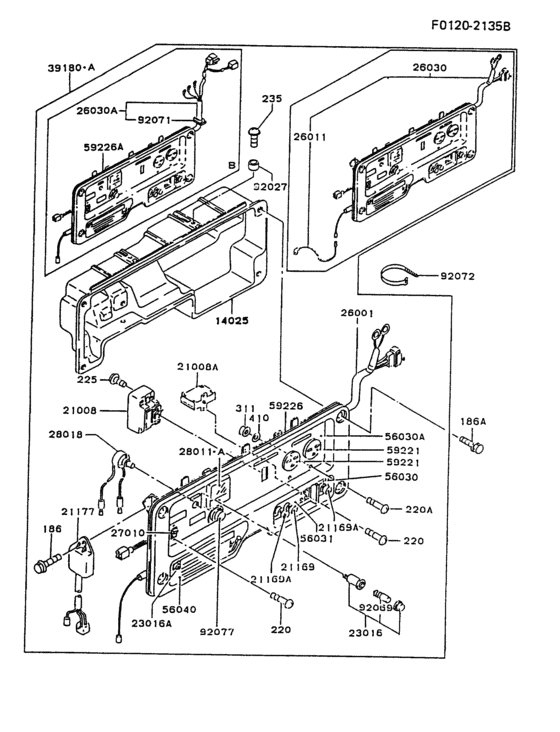

Control-panel Diagram Kawasaki GA3200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186B0610 Bolt,upset |
186B0610 |
US $1.11 |
||
| replacement | |||||
|
186
|
186
186AA0610
Bolt-upset-wp
|
186AA0610 |
— | ||
|
186A
|
186A
186C0612
BOLT-UPSET-WP
|
186C0612 |
— | ||
| replacement | |||||
|
186A
|
186A
186AB0612 BOLT-UPSET-WP |
186AB0612 |
from US $1.09 |
||
|
220
|
220
220C0308
SCREW-PAN-CROS
|
220C0308 |
— | ||
| replacement | |||||
|
220
|
220
220AB0308 SCREW-PAN-CROS |
220AB0308 |
from US $0.74 |
||
|
220A
|
220A
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220A
|
220A
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
225
|
225
225B0435 SCREW (4X35) |
225B0435 |
US $0.29 |
||
|
235
|
235
235C0510 SCREW-PAN-WP-CROS |
235C0510 |
from US $0.38 |
||
| replacement | |||||
|
235
|
235
235AB0510 SCREW-PAN-WP-CROS |
235AB0510 |
from US $0.38 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
14025
|
14025
14025-2154 COVER |
14025-2154 |
US $40.23 |
||
|
21008
|
21008
21008-2143 BREAKER 15A |
21008-2143 |
US $80.46 |
||
|
21008A
|
21008A
21008-2008 BREAKER |
21008-2008 |
US $97.83 |
||
| replacement | |||||
|
21008A
|
21008A
21008-2068 BREAKER |
21008-2068 |
US $97.83 |
||
|
21169
|
21169
21169-2052 TERMINAL (+) |
21169-2052 |
US $23.09 |
||
|
21169A
|
21169A
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
21177
|
21177
21177-2052
CONTROLLER
|
21177-2052 |
— | ||
|
23016
|
23016
23016-2002 LAMP ASSY. |
23016-2002 |
US $19.57 |
||
|
23016A
|
23016A
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
23016A
|
23016A
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
26001
|
26001
26001-2145
Harness
|
26001-2145 |
— | ||
|
26011
|
26011
26011-2244
Wire-lead
|
26011-2244 |
— | ||
|
26030
|
26030
26030-2021
Harness
|
26030-2021 |
— | ||
|
27010
|
27010
27010-2091
SWITCH
|
27010-2091 |
— | ||
|
28011
|
28011
28011-2060
Meter
|
28011-2060 |
— | ||
|
28018
|
28018
28018-2051 RESISTOR |
28018-2051 |
US $42.37 |
||
|
39180
|
39180
39180-2424
Panel-assy-control
|
39180-2424 |
— | ||
|
56030
|
56030
56030-2027 LABEL |
56030-2027 |
US $1.85 |
||
|
56030A
|
56030A
56030-2129
Label
|
56030-2129 |
— | ||
|
56031
|
56031
56031-2214
Label-manual
|
56031-2214 |
— | ||
|
56040
|
56040
56040-2079
Label-warning
|
56040-2079 |
— | ||
|
59221
|
59221
59221-2074 CONNECTOR-CORD |
59221-2074 |
US $41.94 |
||
|
59226
|
59226
59226-2180-9W
Panel-control
|
59226-2180-9W |
— | ||
|
92027
|
92027
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92069
|
92069
92069-2001 BULB |
92069-2001 |
US $8.62 |
||
|
92072
|
92072
92072-2003 CLAMP,SPARK PLUG CAP |
92072-2003 |
US $2.84 |
||
| replacement | |||||
|
92072
|
92072
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92077
|
92077
92077-2058 KNOB |
92077-2058 |
US $5.92 |
||
