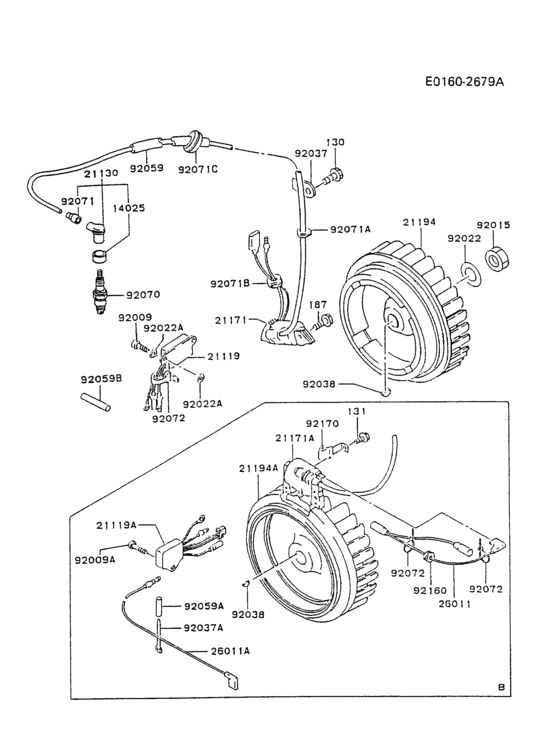

Electric-equipment Diagram Kawasaki GA3200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0612 BOLT,FLANGE,6X12 |
130B0612 |
US $7.90 |
||
| replacements | |||||
|
130
|
130
130AA0612 BOLT,FLANGE,6X12 |
130AA0612 |
from US $1.05 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
187
|
187
187B0625
BOLT-UPSET-WSP
|
187B0625 |
— | ||
| replacement | |||||
|
187
|
187
187AA0625 BOLT-UPSET-WSP |
187AA0625 |
from US $1.03 |
||
|
14025
|
14025
14025-2015 COVER, PLUG CAP |
14025-2015 |
US $8.90 |
||
|
21119
|
21119
21119-2096
IGNITER
|
21119-2096 |
— | ||
|
21130
|
21130
21130-2004 CAP,PLUG |
21130-2004 |
US $12.92 |
||
|
21171
|
21171
21171-2066
COIL, IGNITION
|
21171-2066 |
— | ||
|
21194
|
21194
21194-2127
Flywheel-comp
|
21194-2127 |
— | ||
|
92009
|
92009
92009-2102 Screw |
92009-2102 |
US $1.55 |
||
| replacement | |||||
|
92009
|
92009
92009-2339 SCREW |
92009-2339 |
US $1.80 |
||
|
92015
|
92015
92015-2157 NUT |
92015-2157 |
US $6.85 |
||
|
92022
|
92022
92022-2102 WASHER |
92022-2102 |
US $10.10 |
||
|
92022A
|
92022A
92022-2105 WASHER |
92022-2105 |
US $2.60 |
||
|
92037
|
92037
92037-2016 CLAMP |
92037-2016 |
US $0.86 |
||
|
92038
|
92038
92038-2077 KEY |
92038-2077 |
US $12.50 |
||
|
92059
|
92059
92059-2051 TUBE |
92059-2051 |
US $3.85 |
||
|
92059B
|
92059B
92059-2009 TUBE |
92059-2009 |
US $1.45 |
||
|
92070
|
92070
92070-2061 Plug-spark,bpr4hs |
92070-2061 |
US $7 |
||
|
92071
|
92071
92071-2008 DAMPER |
92071-2008 |
from US $1.09 |
||
|
92071A
|
92071A
92071-2052 GROMMET |
92071-2052 |
US $1.58 |
||
|
92071B
|
92071B
92071-2053 GROMMET |
92071-2053 |
US $1.55 |
||
|
92071C
|
92071C
92071-2082 GROMMET |
92071-2082 |
US $1.03 |
||
|
92072
|
92072
92072-2003 CLAMP,SPARK PLUG CAP |
92072-2003 |
US $2.84 |
||
| replacement | |||||
|
92072
|
92072
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
