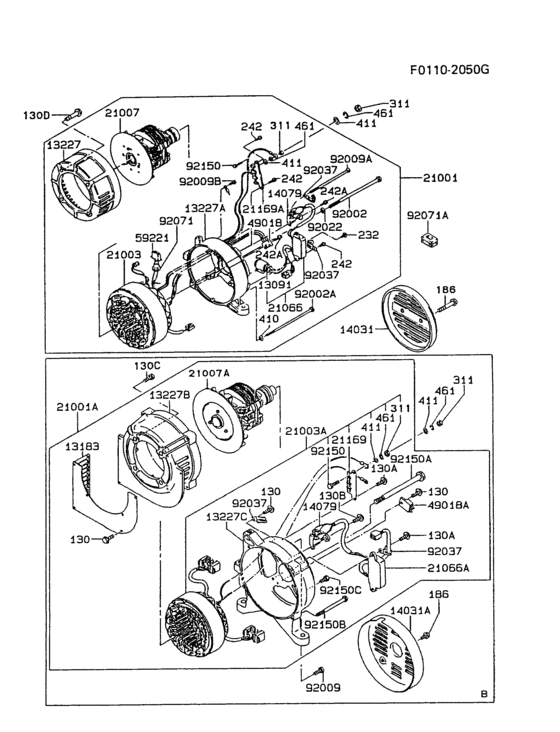

Generator Diagram Kawasaki GA3200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130D
|
130D
130B1025 BOLT (10X25) |
130B1025 |
US $10.10 |
||
|
186
|
186
186C0510
Bolt-upset-wp
|
186C0510 |
— | ||
|
232
|
232
232B0510 SCREW-PAN-WS-CROS |
232B0510 |
US $0.18 |
||
| replacement | |||||
|
232
|
232
223AA0510 SCREW-PAN-WS-CROS |
223AA0510 |
from US $0.75 |
||
|
242
|
242
242B0512
Screw-pan-wsp+-
|
242B0512 |
— | ||
|
242A
|
242A
242B0516
Screw-pan-wsp+-
|
242B0516 |
— | ||
|
311
|
311
311M0500 NUT,HEX |
311M0500 |
US $2.70 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411B0500
W-PLAIN-S
|
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MM |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
461
|
461
461F0500
WASHER-SPRING
|
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.48 |
||
|
13091
|
13091
13091-2004 HOLDER |
13091-2004 |
US $3.58 |
||
|
13227
|
13227
13227-2062 BRACKET-FRONT |
13227-2062 |
US $140.81 |
||
|
13227A
|
13227A
13227-2063 HOUSING-REAR |
13227-2063 |
US $308.18 |
||
|
14031
|
14031
14031-2058-9H Cover-generator |
14031-2058-9H |
US $47.20 |
||
|
14079
|
14079
14079-2056 HOLDER ASSY |
14079-2056 |
US $50.15 |
||
|
21001
|
21001
21001-2114
Generator
|
21001-2114 |
— | ||
|
21003
|
21003
21003-2079
Stator
|
21003-2079 |
— | ||
|
21007
|
21007
21007-2056 ROTOR ASSY |
21007-2056 |
US $1,082.84 |
||
|
21066
|
21066
21066-2054 Regulator-voltage |
21066-2054 |
US $455.24 |
||
| replacements | |||||
|
21066
|
21066
21066-2064
Regulator-voltage
|
21066-2064 |
— | ||
|
21066
|
21066
21066-2060
Regulator-voltage
|
21066-2060 |
— | ||
|
21169A
|
21169A
21169-2005
BASE,TERMINAL
|
21169-2005 |
— | ||
|
49018
|
49018
49018-2002
RECTIFIER
|
49018-2002 |
— | ||
|
59221
|
59221
59221-2097
CONNECTOR-CORD
|
59221-2097 |
— | ||
|
92002
|
92002
92002-2265 BOLT |
92002-2265 |
US $17.44 |
||
|
92002A
|
92002A
92002-2266 BOLT |
92002-2266 |
US $12.53 |
||
|
92009A
|
92009A
92009-2181 SCREW |
92009-2181 |
US $2.21 |
||
|
92009B
|
92009B
92009-2268 SCREW |
92009-2268 |
US $1.35 |
||
|
92022
|
92022
92022-2015 WASHER |
92022-2015 |
US $0.54 |
||
|
92037
|
92037
92037-2004 CLAMP |
92037-2004 |
US $3.58 |
||
|
92071
|
92071
92071-2009 DAMPER |
92071-2009 |
US $4.09 |
||
|
92071A
|
92071A
92071-2003 GROMMET |
92071-2003 |
US $2.32 |
||
|
92150
|
92150
92150-2104 BOLT |
92150-2104 |
US $1.03 |
||
