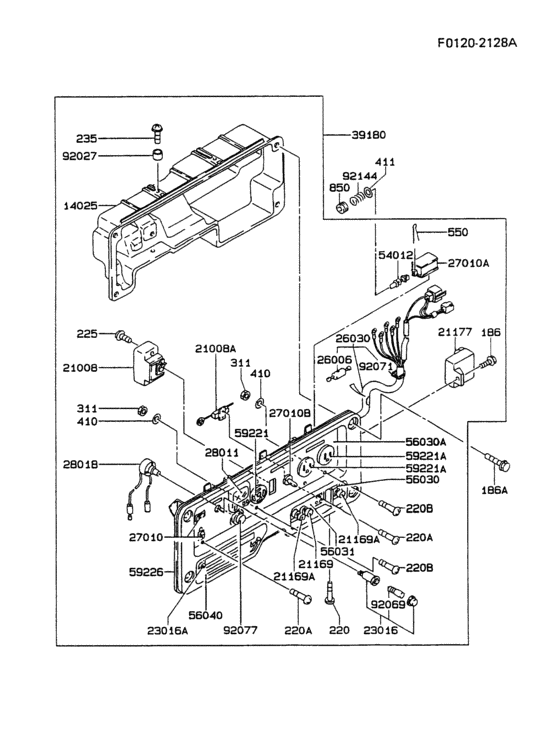

Control-panel Diagram Kawasaki GA3200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186B0610 Bolt,upset |
186B0610 |
US $1.11 |
||
| replacement | |||||
|
186
|
186
186AA0610
Bolt-upset-wp
|
186AA0610 |
— | ||
|
186A
|
186A
186C0612
BOLT-UPSET-WP
|
186C0612 |
— | ||
| replacement | |||||
|
186A
|
186A
186AB0612 BOLT-UPSET-WP |
186AB0612 |
from US $1.09 |
||
|
220
|
220
220B0306
SCREW-PAN-CROS,3X6
|
220B0306 |
— | ||
| replacement | |||||
|
220
|
220
220AA0306 SCREW-PAN-CROS,3X6 |
220AA0306 |
from US $0.78 |
||
|
220A
|
220A
220C0308
SCREW-PAN-CROS
|
220C0308 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0308 SCREW-PAN-CROS |
220AB0308 |
from US $0.74 |
||
|
220B
|
220B
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220B
|
220B
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
225
|
225
225B0435 SCREW (4X35) |
225B0435 |
US $0.29 |
||
|
235
|
235
235C0510 SCREW-PAN-WP-CROS |
235C0510 |
from US $0.38 |
||
| replacement | |||||
|
235
|
235
235AB0510 SCREW-PAN-WP-CROS |
235AB0510 |
from US $0.38 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
550
|
550
550D3218 PIN-COTTER |
550D3218 |
US $2.90 |
||
|
850
|
850
850B0402 GROMMET |
850B0402 |
US $0.67 |
||
|
14025
|
14025
14025-2154 COVER |
14025-2154 |
US $40.23 |
||
|
21008
|
21008
21008-2166 BREAKER,12.5A |
21008-2166 |
US $70.34 |
||
|
21008A
|
21008A
21008-2008 BREAKER |
21008-2008 |
US $97.83 |
||
| replacement | |||||
|
21008A
|
21008A
21008-2068 BREAKER |
21008-2068 |
US $97.83 |
||
|
21169
|
21169
21169-2052 TERMINAL (+) |
21169-2052 |
US $23.09 |
||
|
21169A
|
21169A
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
21177
|
21177
21177-2059 CONTROLLER |
21177-2059 |
US $96.59 |
||
| replacement | |||||
|
21177
|
21177
21177-2060 CONTROLLER |
21177-2060 |
US $96.59 |
||
|
23016
|
23016
23016-2002 LAMP ASSY. |
23016-2002 |
US $19.57 |
||
|
23016A
|
23016A
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
23016A
|
23016A
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
26006
|
26006
26006-2004 FUSE 2A |
26006-2004 |
US $8.10 |
||
|
26030
|
26030
26030-2086 HARNESS |
26030-2086 |
US $113.11 |
||
|
27010
|
27010
27010-2091
SWITCH
|
27010-2091 |
— | ||
|
27010A
|
27010A
27010-2104
SWITCH
|
27010-2104 |
— | ||
|
27010B
|
27010B
27010-2180 SWITCH |
27010-2180 |
US $69.95 |
||
|
28011
|
28011
28011-2066 METER |
28011-2066 |
US $142.70 |
||
|
28018
|
28018
28018-2051 RESISTOR |
28018-2051 |
US $42.37 |
||
|
39180
|
39180
39180-2786
Panel-assy-control
|
39180-2786 |
— | ||
|
54012
|
54012
54012-2215
CABLE-THROTTLE
|
54012-2215 |
— | ||
|
56030
|
56030
56030-2027 LABEL |
56030-2027 |
US $1.85 |
||
|
56030A
|
56030A
56030-2444
Label
|
56030-2444 |
— | ||
|
56031
|
56031
56031-2181 LABEL, MANUAL |
56031-2181 |
US $4.54 |
||
|
56040
|
56040
56040-2076 LABEL, WARNING |
56040-2076 |
US $4.25 |
||
|
59221
|
59221
59221-2087 CONNECTOR, CORD |
59221-2087 |
US $106.13 |
||
|
59221A
|
59221A
59221-2107 CONNECTOR-CORD |
59221-2107 |
US $31.95 |
||
|
59226
|
59226
59226-2238-9W PANEL-CONTROL |
59226-2238-9W |
US $110.86 |
||
|
92027
|
92027
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92069
|
92069
92069-2001 BULB |
92069-2001 |
US $8.62 |
||
|
92071
|
92071
92071-2131 GROMMET |
92071-2131 |
US $2.56 |
||
|
92077
|
92077
92077-2058 KNOB |
92077-2058 |
US $5.92 |
||
|
92144
|
92144
92144-2004 SPRING |
92144-2004 |
US $3.25 |
||
