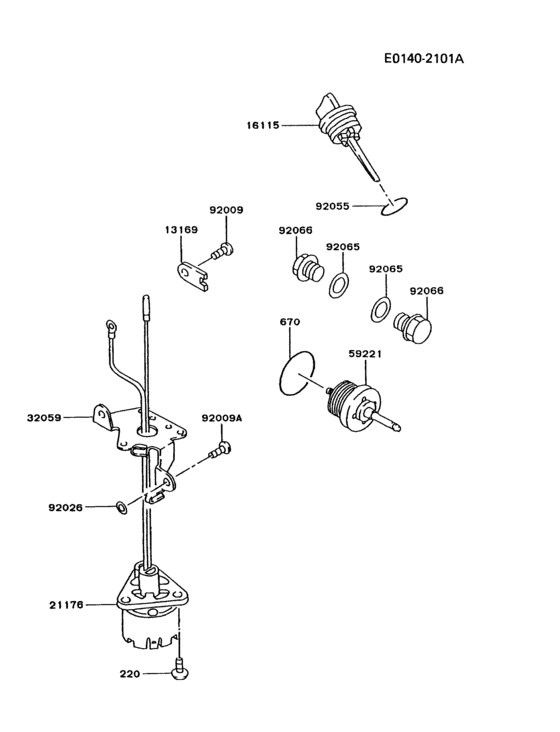

Lubrication-equipment Diagram Kawasaki GA3200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0408
SCREW-PAN-CROS
|
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
670
|
670
670B2015 O RING,15MM |
670B2015 |
from US $1.77 |
||
|
13169
|
13169
92022-2185 WASHER |
92022-2185 |
US $0.47 |
||
|
16115
|
16115
16115-2083 CAP-OIL FILLER |
16115-2083 |
US $5.54 |
||
|
21176
|
21176
21176-2076 SENSOR |
21176-2076 |
US $54.18 |
||
|
32059
|
32059
32059-2082
Bracket-switch
|
32059-2082 |
— | ||
|
59221
|
59221
59221-2123 CONNECTOR-CORD |
59221-2123 |
US $48.62 |
||
|
92009
|
92009
92009-2106 SCREW |
92009-2106 |
US $1.25 |
||
| replacement | |||||
|
92009
|
92009
92009-2307 SCREW |
92009-2307 |
US $1.25 |
||
|
92009A
|
92009A
92009-2136 SCREW |
92009-2136 |
US $1.80 |
||
| replacement | |||||
|
92009A
|
92009A
92009-2339 SCREW |
92009-2339 |
US $1.80 |
||
|
92026
|
92026
92026-2154 SPACER |
92026-2154 |
US $8.20 |
||
|
92055
|
92055
92055-2064 O-RING |
92055-2064 |
US $0.72 |
||
| replacement | |||||
|
92055
|
92055
92055-2185 RING-O,20MM |
92055-2185 |
from US $1.25 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUG |
92065-097 |
from US $1.61 |
||
|
92066
|
92066
92066-2101 PLUG-DRAIN |
92066-2101 |
US $7.75 |
||
