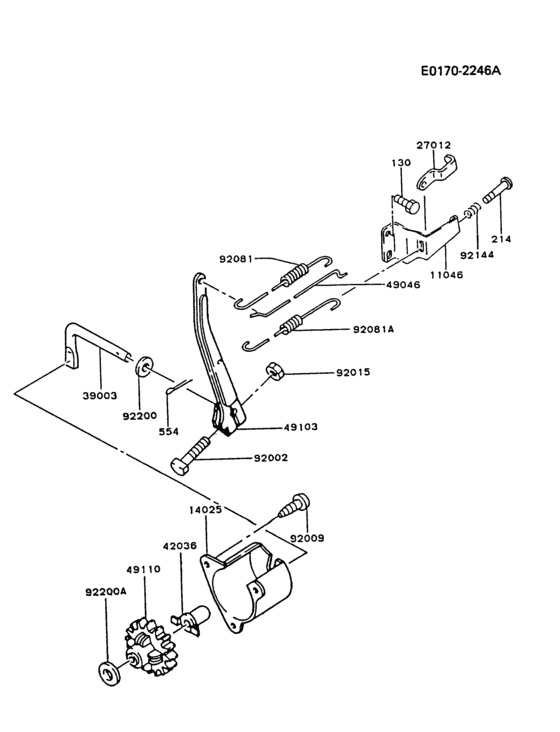

Control-equipment Diagram Kawasaki GB2300A
- Engine Capacity
- 30
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0612 BOLT,FLANGE,6X12 |
130B0612 |
US $7.90 |
||
| replacements | |||||
|
130
|
130
130AA0612 BOLT,FLANGE,6X12 |
130AA0612 |
from US $1.05 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
214
|
214
214B0425
Screw-pan+-
|
214B0425 |
— | ||
| replacements | |||||
|
214
|
214
220AA0425 SCREW-PAN CROS,4X25 |
220AA0425 |
from US $0.78 |
||
|
214
|
214
214AA0425
Screw-pan+-
|
214AA0425 |
— | ||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
11046
|
11046
11046-2087
Bracket
|
11046-2087 |
— | ||
|
14025
|
14025
14025-2051
Cover
|
14025-2051 |
— | ||
|
27012
|
27012
27012-2058 HOOK |
27012-2058 |
US $1.40 |
||
|
39003
|
39003
39003-2069 ARM PIVOT |
39003-2069 |
US $7.67 |
||
| replacement | |||||
|
39003
|
39003
39003-2080 ARM PIVOT |
39003-2080 |
US $7.67 |
||
|
42036
|
42036
42036-2051 SLEEVE, GOVERNOR |
42036-2051 |
US $10.10 |
||
|
49046
|
49046
49046-2055 LINK, GOVERNOR |
49046-2055 |
US $8.20 |
||
|
49103
|
49103
49103-2112
Arm-governor
|
49103-2112 |
— | ||
|
49110
|
49110
49110-2052 GOVERNOR ASSY |
49110-2052 |
US $11.36 |
||
| replacement | |||||
|
49110
|
49110
49110-2079 GOVERNOR ASSY |
49110-2079 |
US $11.36 |
||
|
92002
|
92002
92002-2269 BOLT |
92002-2269 |
from US $1.09 |
||
|
92009
|
92009
92009-2307 SCREW |
92009-2307 |
US $1.25 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92081
|
92081
92081-2014 SPRING |
92081-2014 |
US $2.43 |
||
| replacement | |||||
|
92081
|
92081
92144-2295 SPRING |
92144-2295 |
US $12.15 |
||
|
92081A
|
92081A
92081-2111 SPRING |
92081-2111 |
US $12.60 |
||
|
92144
|
92144
92144-2266 SPRING,RPM ADJUSTMENT |
92144-2266 |
from US $3.01 |
||
|
92200
|
92200
92200-2029 WASHER,6.5X11.5X2.0 |
92200-2029 |
from US $1.05 |
||
|
92200A
|
92200A
92200-2036 WASHER,6.2X20X0.5 |
92200-2036 |
from US $1.09 |
||
