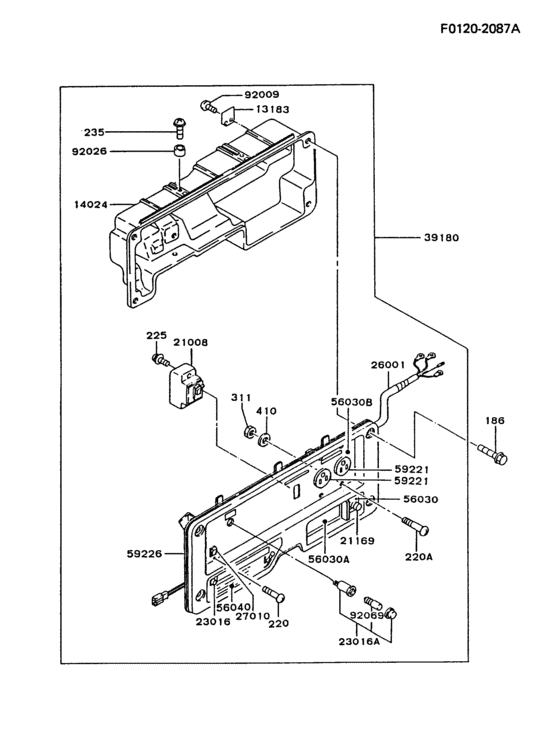

Control-panel Diagram Kawasaki GB2300A
- Engine Capacity
- 30
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186C0612
BOLT-UPSET-WP
|
186C0612 |
— | ||
| replacement | |||||
|
186
|
186
186AB0612 BOLT-UPSET-WP |
186AB0612 |
from US $1.09 |
||
|
220
|
220
220C0308
SCREW-PAN-CROS
|
220C0308 |
— | ||
| replacement | |||||
|
220
|
220
220AB0308 SCREW-PAN-CROS |
220AB0308 |
from US $0.74 |
||
|
220A
|
220A
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220A
|
220A
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
225
|
225
225B0435 SCREW (4X35) |
225B0435 |
US $0.29 |
||
|
235
|
235
235C0510 SCREW-PAN-WP-CROS |
235C0510 |
from US $0.38 |
||
| replacement | |||||
|
235
|
235
235AB0510 SCREW-PAN-WP-CROS |
235AB0510 |
from US $0.38 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
13183
|
13183
13183-2276
Plate
|
13183-2276 |
— | ||
|
14024
|
14024
14024-2208
Cover
|
14024-2208 |
— | ||
|
21008
|
21008
21008-2144 BREAKER,17A |
21008-2144 |
US $80.46 |
||
|
21169
|
21169
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
23016
|
23016
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
23016
|
23016
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
23016A
|
23016A
23016-2002 LAMP ASSY. |
23016-2002 |
US $19.57 |
||
|
26001
|
26001
26001-2386
Harness
|
26001-2386 |
— | ||
|
27010
|
27010
27010-2091
SWITCH
|
27010-2091 |
— | ||
|
39180
|
39180
39180-2655
Panel-assy-control
|
39180-2655 |
— | ||
|
56030
|
56030
56030-2027 LABEL |
56030-2027 |
US $1.85 |
||
|
56030A
|
56030A
56030-2127
Label
|
56030-2127 |
— | ||
|
56030B
|
56030B
56030-2415
Label
|
56030-2415 |
— | ||
|
56040
|
56040
56040-2079
Label-warning
|
56040-2079 |
— | ||
|
59221
|
59221
59221-2082 CONNECTOR-CORD |
59221-2082 |
US $31.90 |
||
|
59226
|
59226
59226-2210-9W
Panel-control
|
59226-2210-9W |
— | ||
|
92009
|
92009
92009-2184 SCREW |
92009-2184 |
US $1.25 |
||
|
92026
|
92026
92026-2005 COLLAR |
92026-2005 |
US $0.22 |
||
| replacement | |||||
|
92026
|
92026
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92069
|
92069
92069-2001 BULB |
92069-2001 |
US $8.62 |
||
