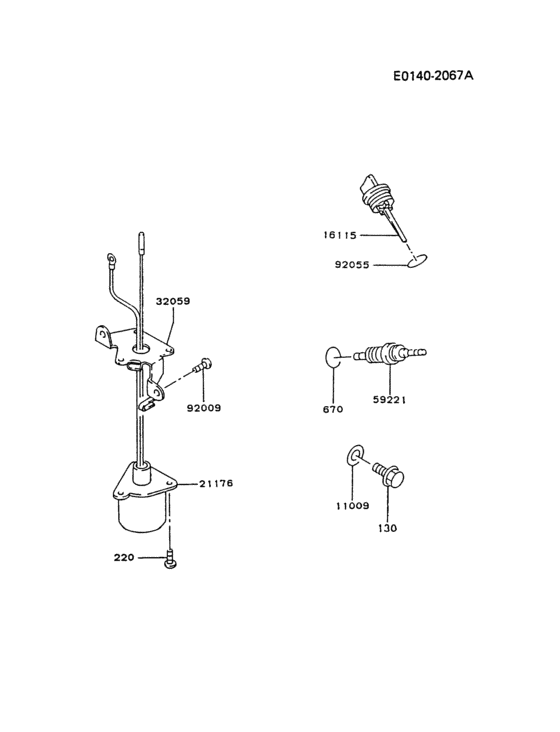

Lubrication-equipment Diagram Kawasaki GB2300A
- Engine Capacity
- 30
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D1014
Bolt-flanged
|
130D1014 |
— | ||
|
220
|
220
220B0408
SCREW-PAN-CROS
|
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
670
|
670
670B2015 O RING,15MM |
670B2015 |
from US $1.77 |
||
|
11009
|
11009
11009-2432 GASKET-DRAIN PLUG |
11009-2432 |
US $2.80 |
||
|
16115
|
16115
16115-2083 CAP-OIL FILLER |
16115-2083 |
US $5.54 |
||
|
21176
|
21176
21176-2076 SENSOR |
21176-2076 |
US $54.18 |
||
|
32059
|
32059
32059-2082
Bracket-switch
|
32059-2082 |
— | ||
|
59221
|
59221
59221-2123 CONNECTOR-CORD |
59221-2123 |
US $48.62 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92055
|
92055
92055-2064 O-RING |
92055-2064 |
US $0.72 |
||
| replacement | |||||
|
92055
|
92055
92055-2185 RING-O,20MM |
92055-2185 |
from US $1.25 |
||
