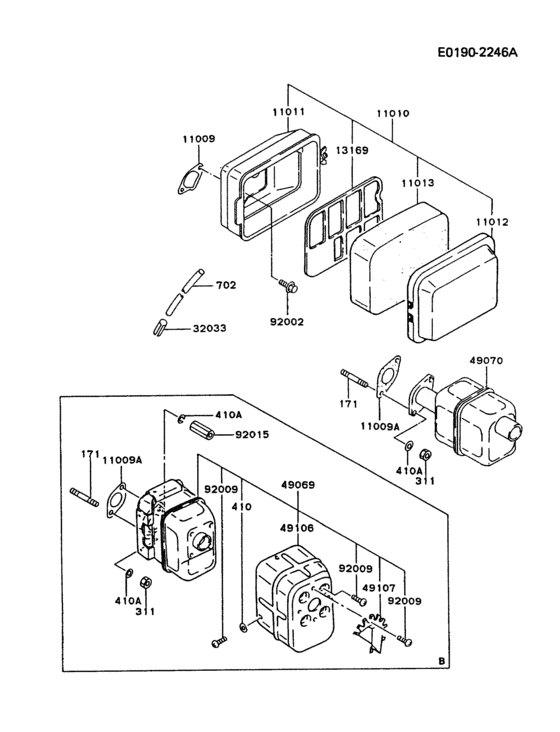

Air-filter/muffler Diagram Kawasaki GC550A
- Engine Capacity
- 550
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
171
|
171
171G0616
Bolt-stud
|
171G0616 |
— | ||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
410A
|
410A
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410A
|
410A
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
702
|
702
702A071000 TUBE-BREATHER (BULK) |
702A071000 |
from US $11.40 |
||
|
11009
|
11009
11009-2185
Gasket
|
11009-2185 |
— | ||
|
11009A
|
11009A
11009-2028
Gasket,muffler
|
11009-2028 |
— | ||
| replacement | |||||
|
11009A
|
11009A
11060-2100
Gasket,muffler
|
11060-2100 |
— | ||
|
11010
|
11010
11010-2084
FILTER-ASSY-AIR
|
11010-2084 |
— | ||
|
11011
|
11011
11011-2056-YK
Case-air filter
|
11011-2056-YK |
— | ||
|
11012
|
11012
11012-2113-YK
Cap
|
11012-2113-YK |
— | ||
|
11013
|
11013
11013-2087
Element-air filter
|
11013-2087 |
— | ||
|
13169
|
13169
13169-2179
Plate
|
13169-2179 |
— | ||
|
32033
|
32033
32033-2001 PIPE |
32033-2001 |
US $3.80 |
||
|
49070
|
49070
49070-2062-9Z
Muffler-comp
|
49070-2062-9Z |
— | ||
|
92002
|
92002
92002-2051 BOLT |
92002-2051 |
US $2 |
||
