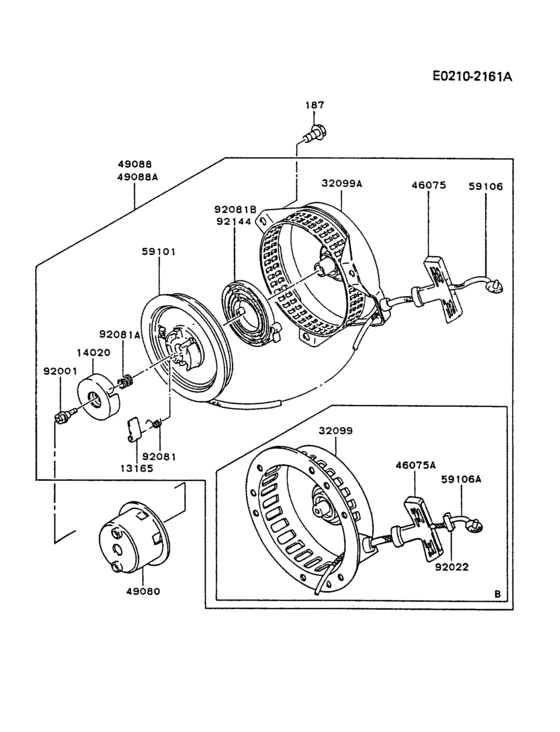

Starter Diagram Kawasaki GC550A
- Engine Capacity
- 550
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0610 BOLT-UPSET-WSP |
187B0610 |
US $3.24 |
||
| replacement | |||||
|
187
|
187
187AA0610
BOLT-UPSET-WSP
|
187AA0610 |
— | ||
|
13165
|
13165
13165-2003 PAWL,RECOIL |
13165-2003 |
US $10.70 |
||
|
14020
|
14020
14020-2003 RETAINER |
14020-2003 |
US $6.19 |
||
|
32099A
|
32099A
32099-2159-YK CASE-RECOIL |
32099-2159-YK |
US $37.51 |
||
|
46075
|
46075
46075-2005 HANDLE-RECOIL STARTER |
46075-2005 |
US $4.64 |
||
|
49080
|
49080
49080-2139 PULLEY-STARTING |
49080-2139 |
US $7.83 |
||
|
49088A
|
49088A
49088-2336-YK RECOIL ASSY |
49088-2336-YK |
US $76.79 |
||
|
59101
|
59101
59101-2075 REEL-RECOIL |
59101-2075 |
US $15.26 |
||
|
59106
|
59106
59106-2053 ROPE |
59106-2053 |
US $4.46 |
||
|
92001
|
92001
92001-2027 BOLT-RETAINER |
92001-2027 |
US $13.75 |
||
|
92081
|
92081
92081-2021 SPRING,RETURN |
92081-2021 |
US $8.90 |
||
|
92081A
|
92081A
92081-2022 SPRING-RETAINER |
92081-2022 |
US $9.80 |
||
|
92081B
|
92081B
92081-2023 SPRING,RECOIL |
92081-2023 |
US $12.44 |
||
