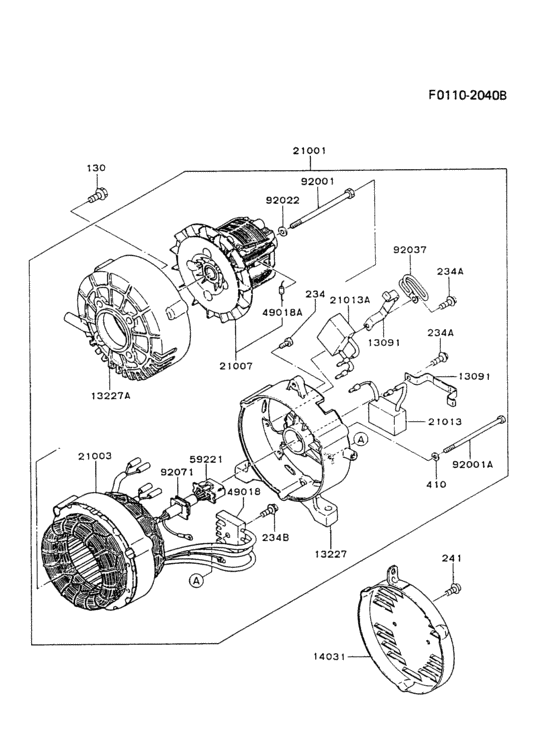

Generator Diagram Kawasaki GC550A
- Engine Capacity
- 550
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0820 BOLT-FLANGED |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130
|
130
130AA0820 BOLT-FLANGED |
130AA0820 |
from US $1.05 |
||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
234
|
234
234B0508
Screw-pan-wsp+-
|
234B0508 |
— | ||
|
234A
|
234A
234B0510
Screw-pan-wsp+-
|
234B0510 |
— | ||
|
234B
|
234B
234B0518
Screw-pan-wsp+-
|
234B0518 |
— | ||
|
241
|
241
241B0510
Screw-pan-wp+-
|
241B0510 |
— | ||
|
410
|
410
410B0500
W-PLAIN-S
|
410B0500 |
— | ||
| replacement | |||||
|
410
|
410
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
13091
|
13091
13091-2003 HOLDER-CONDENCER |
13091-2003 |
US $4.50 |
||
|
13227
|
13227
13227-2007 BRACKET,REAR |
13227-2007 |
US $139.77 |
||
|
13227A
|
13227A
13227-2008 BRACKET,FRONT |
13227-2008 |
US $130.77 |
||
|
14031
|
14031
14031-2061-9H
Cover-generator
|
14031-2061-9H |
— | ||
|
21001
|
21001
21001-2139
Generator
|
21001-2139 |
— | ||
|
21003
|
21003
21003-2100
Stator
|
21003-2100 |
— | ||
|
21007
|
21007
21007-2005 ROTOR ASSY |
21007-2005 |
US $617.17 |
||
|
21013
|
21013
21013-2006 CONDENSER |
21013-2006 |
US $106.43 |
||
| replacement | |||||
|
21013
|
21013
21013-2074 CONDENSER |
21013-2074 |
US $106.43 |
||
|
21013A
|
21013A
21013-2007 CONDENSER |
21013-2007 |
US $81.68 |
||
| replacement | |||||
|
21013A
|
21013A
21013-2075 CONDENSER |
21013-2075 |
US $81.68 |
||
|
49018
|
49018
49018-2002
RECTIFIER
|
49018-2002 |
— | ||
|
49018A
|
49018A
49018-2003 DI0DE |
49018-2003 |
US $13.84 |
||
|
59221
|
59221
59221-2097
CONNECTOR-CORD
|
59221-2097 |
— | ||
|
92001
|
92001
92001-2029 BOLT-ROTOR ASSY |
92001-2029 |
US $13.48 |
||
|
92001A
|
92001A
92001-2030 BOLT (5X100) |
92001-2030 |
US $4.46 |
||
|
92022
|
92022
92022-2021 WASHER |
92022-2021 |
US $0.47 |
||
|
92037
|
92037
92037-2004 CLAMP |
92037-2004 |
US $3.58 |
||
|
92071
|
92071
92071-2007 GROMMET |
92071-2007 |
US $6.95 |
||
