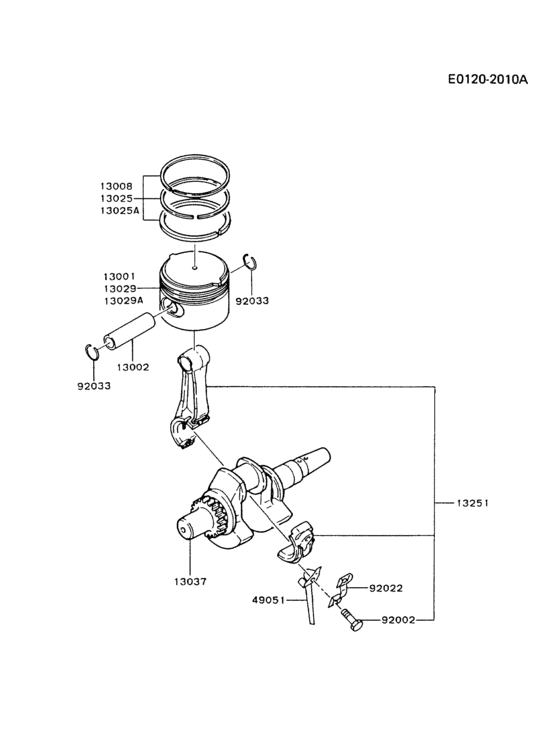

Piston/crankshaft Diagram Kawasaki GD700A-S
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-2100 PISTON |
13001-2100 |
US $29.66 |
||
|
13002
|
13002
13002-2005 PIN-PISTON |
13002-2005 |
US $5.78 |
||
|
13008
|
13008
13008-2010
PISTON RING SET
|
13008-2010 |
— | ||
|
13025
|
13025
13025-2009
PISTON RING SET
|
13025-2009 |
— | ||
|
13025A
|
13025A
13025-2010
PISTON RING SET
|
13025-2010 |
— | ||
|
13029
|
13029
13029-2086
PISTON
|
13029-2086 |
— | ||
|
13029A
|
13029A
13029-2087 PISTON |
13029-2087 |
US $46.58 |
||
|
13037
|
13037
13037-2313 SHAFT-CRANK |
13037-2313 |
US $152.01 |
||
|
13251
|
13251
13251-2005 ROD-ASSY-CONNECTING |
13251-2005 |
US $106.25 |
||
| replacement | |||||
|
13251
|
13251
13251-2074 ROD-ASSY-CONNECTING |
13251-2074 |
US $106.25 |
||
|
49051
|
49051
49051-2001 ARM SPLASHER |
49051-2001 |
US $3.44 |
||
|
92002
|
92002
92001-2025 BOLT |
92001-2025 |
US $2.32 |
||
|
92022
|
92022
92022-2018 WASHER |
92022-2018 |
US $3.80 |
||
|
92033
|
92033
92033-2005 RING SNAP |
92033-2005 |
US $2.80 |
||
