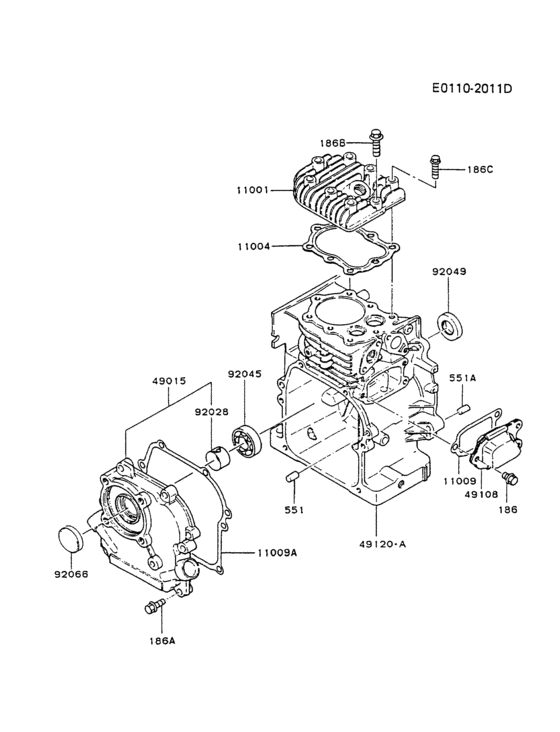

Cylinder/crankcase Diagram Kawasaki GD700A-S
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186B0612 BOLT-UPSET-WP |
186B0612 |
from US $0.61 |
||
| replacement | |||||
|
186
|
186
186AA0612 BOLT-UPSET-WP |
186AA0612 |
US $0.56 |
||
|
186A
|
186A
186B0622
Bolt-upset-wp
|
186B0622 |
— | ||
|
186B
|
186B
186G0630
Bolt-upset-wp
|
186G0630 |
— | ||
|
186C
|
186C
186G0640
Bolt-upset-wp
|
186G0640 |
— | ||
|
551
|
551
551A0612 PIN,DOWEL,6X12 |
551A0612 |
from US $1.36 |
||
|
551A
|
551A
551A0816 PIN DOWEL 8X16 |
551A0816 |
US $0.74 |
||
|
11001
|
11001
11001-2087 HEAD-CYLINDER |
11001-2087 |
US $31.41 |
||
|
11004
|
11004
11004-2007 GASKET HEAD |
11004-2007 |
US $18.72 |
||
| replacement | |||||
|
11004
|
11004
11004-2115 GASKET HEAD |
11004-2115 |
US $18.72 |
||
|
11009
|
11009
11009-2029 GASKET-CHAMBER COVER |
11009-2029 |
US $14.40 |
||
| replacement | |||||
|
11009
|
11009
11060-2101 GASKET-CHAMBER COVER |
11060-2101 |
US $2.88 |
||
|
11009A
|
11009A
11009-2030 GASKET,CRANKCASE COVE |
11009-2030 |
US $30.50 |
||
| replacement | |||||
|
11009A
|
11009A
11060-2102 GASKET,CRANKCASE COVE |
11060-2102 |
US $6.10 |
||
|
49015
|
49015
49015-6027 COVER-CRANK CASE |
49015-6027 |
US $113.81 |
||
|
49108
|
49108
49108-2079 COVER, VALVE CHAMBER |
49108-2079 |
US $13.32 |
||
|
49120
|
49120
49120-2141 CRANK CASE C |
49120-2141 |
US $245.34 |
||
|
49120A
|
49120A
49120-2203
Crankcase-comp
|
49120-2203 |
— | ||
|
92028
|
92028
92028-2016 BEARING-PLAIN |
92028-2016 |
US $5.54 |
||
|
92045
|
92045
92045-2001 BEARING BALL #6203 |
92045-2001 |
US $12.82 |
||
| replacement | |||||
|
92045
|
92045
601B6203 BEARING BALL #6203 |
601B6203 |
from US $9.03 |
||
|
92049
|
92049
92049-2107 SEAL-OIL |
92049-2107 |
US $5.24 |
||
|
92066
|
92066
92066-2100 PLUG |
92066-2100 |
US $6.64 |
||
