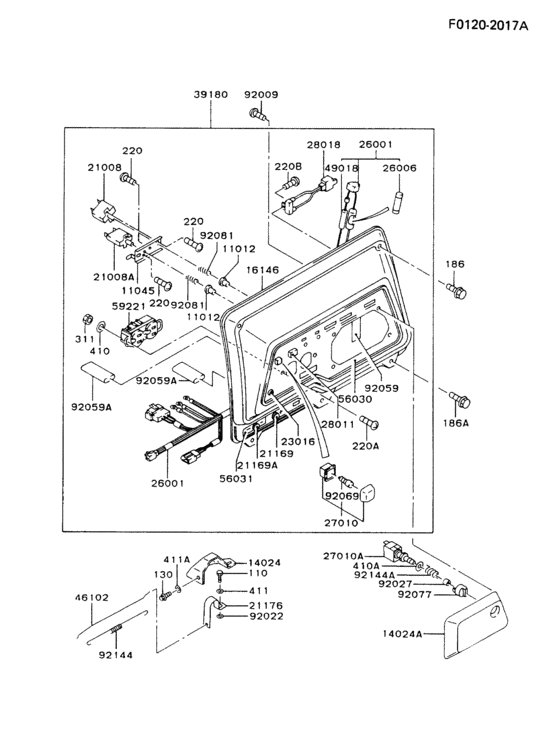

Control-panel Diagram Kawasaki GD700A-S
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110R0508 BOLT (5X8) |
110R0508 |
US $0.63 |
||
|
130
|
130
130B0608
BOLT-FLANGED
|
130B0608 |
— | ||
| replacements | |||||
|
130
|
130
130AA0608 BOLT-FLANGED |
130AA0608 |
from US $1.05 |
||
|
130
|
130
130BA0608 BOLT-FLANGED |
130BA0608 |
from US $1 |
||
|
186
|
186
186C0510
Bolt-upset-wp
|
186C0510 |
— | ||
|
186A
|
186A
186C0612
BOLT-UPSET-WP
|
186C0612 |
— | ||
| replacement | |||||
|
186A
|
186A
186AB0612 BOLT-UPSET-WP |
186AB0612 |
from US $1.09 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
|
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.79 |
||
|
220A
|
220A
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220A
|
220A
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
220B
|
220B
220C0508
SCREW-PAN-CROS
|
220C0508 |
— | ||
| replacement | |||||
|
220B
|
220B
220AB0508 SCREW-PAN-CROS |
220AB0508 |
from US $0.88 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
410A
|
410A
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410A
|
410A
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411B0500
W-PLAIN-S
|
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MM |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
411A
|
411A
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411A
|
411A
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
11012
|
11012
11012-2201 CAP |
11012-2201 |
US $2.45 |
||
|
11045
|
11045
11045-2039 BRACKET |
11045-2039 |
US $3.89 |
||
|
14024
|
14024
14024-2052 COVER |
14024-2052 |
US $4.05 |
||
|
14024A
|
14024A
14024-2089 COVER |
14024-2089 |
US $9.16 |
||
|
16146
|
16146
16146-2160-ZX
Cover-assy
|
16146-2160-ZX |
— | ||
|
21008
|
21008
21008-2112 BREAKER (DC10A) |
21008-2112 |
US $54.23 |
||
|
21008A
|
21008A
21008-2134 BREAKER (AC6.1A) |
21008-2134 |
US $54.23 |
||
|
21169
|
21169
21169-2052 TERMINAL (+) |
21169-2052 |
US $23.09 |
||
|
21169A
|
21169A
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
21176
|
21176
21176-2071 SENSOR |
21176-2071 |
US $16.63 |
||
|
23016
|
23016
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
23016
|
23016
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
26001
|
26001
26001-2351 HARNESS-BS00 |
26001-2351 |
US $47.16 |
||
|
26006
|
26006
26006-2004 FUSE 2A |
26006-2004 |
US $8.10 |
||
|
27010
|
27010
27010-2129
SWITCH
|
27010-2129 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-2208
SWITCH
|
27010-2208 |
— | ||
|
27010A
|
27010A
27010-2138 SWITCH |
27010-2138 |
US $33.08 |
||
|
28011
|
28011
28011-2057 METER |
28011-2057 |
US $61.61 |
||
|
28018
|
28018
28018-2052
RESISTOR
|
28018-2052 |
— | ||
|
39180
|
39180
39180-2496 PANEL-ASSY-CONTROL |
39180-2496 |
US $326.99 |
||
|
46102
|
46102
46102-2060 ROD |
46102-2060 |
US $10.70 |
||
|
49018
|
49018
49018-2004 RECTIFIER |
49018-2004 |
US $41.65 |
||
|
56030
|
56030
56030-2227 LABEL |
56030-2227 |
US $20.34 |
||
|
56031
|
56031
56031-2295 LABEL |
56031-2295 |
US $1.44 |
||
|
59221
|
59221
59221-2094 CONNECTOR-CORD |
59221-2094 |
US $34.69 |
||
|
92009
|
92009
92009-2239 SCREW |
92009-2239 |
US $0.29 |
||
|
92022
|
92022
92022-2228 WASHER |
92022-2228 |
US $3.35 |
||
|
92027
|
92027
92027-2095 COLLAR |
92027-2095 |
US $1.70 |
||
|
92059
|
92059
92059-2237
Tube
|
92059-2237 |
— | ||
|
92059A
|
92059A
92059-2238
Tube
|
92059-2238 |
— | ||
|
92069
|
92069
92069-2051 BULB |
92069-2051 |
US $10.60 |
||
|
92077
|
92077
92077-2061 KNOB |
92077-2061 |
US $3.10 |
||
|
92081
|
92081
92081-2329 SPRING |
92081-2329 |
US $0.40 |
||
|
92144
|
92144
92144-2001 SPRING-ROD |
92144-2001 |
US $3.22 |
||
|
92144A
|
92144A
92144-2028 SPRING |
92144-2028 |
US $3.74 |
||
