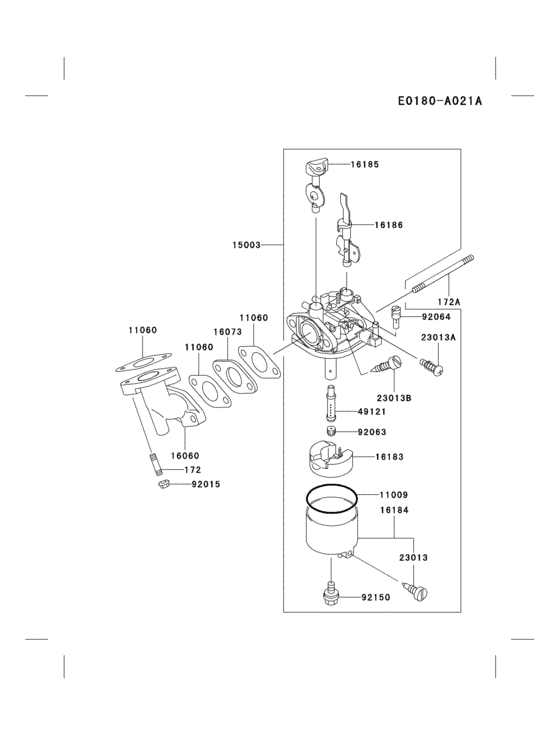

Carburetor Diagram Kawasaki GE2200A
- Engine Capacity
- 20
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
172
|
172
172G0618 BOLT-STUD |
172G0618 |
US $0.92 |
||
| replacement | |||||
|
172
|
172
172BA0618 BOLT-STUD |
172BA0618 |
from US $1.11 |
||
|
172A
|
172A
172G0673
Bolt-stud
|
172G0673 |
— | ||
|
11009
|
11009
11009-2919 GASKET |
11009-2919 |
US $9.49 |
||
|
11060
|
11060
11060-2051 GASKET,CARBURETOR |
11060-2051 |
US $7.75 |
||
|
15003
|
15003
15003-2265
CARBURETOR-ASSY.
|
15003-2265 |
— | ||
|
16060
|
16060
16060-2154 PIPE-INTAKE |
16060-2154 |
US $22.09 |
||
|
16073
|
16073
16073-2147 INSULATOR |
16073-2147 |
US $1.94 |
||
| replacement | |||||
|
16073
|
16073
16073-2180 INSULATOR |
16073-2180 |
US $1.94 |
||
|
16183
|
16183
16183-2001 Float-assy |
16183-2001 |
US $40.01 |
||
| replacement | |||||
|
16183
|
16183
16183-2005 FLOAT-ASSY |
16183-2005 |
US $47.18 |
||
|
16184
|
16184
16184-2002 CHAMBER-ASSY-FLOAT |
16184-2002 |
US $47.20 |
||
|
16185
|
16185
16185-2001 VALVE-ASSY-THROTTLE |
16185-2001 |
US $55.51 |
||
|
16186
|
16186
16186-2019 VALVE-ASSY-CHOKE |
16186-2019 |
US $41.29 |
||
|
23013
|
23013
23013-2053 SCREW-ASSY |
23013-2053 |
US $10.42 |
||
|
23013A
|
23013A
23013-2054 SCREW-ASSY |
23013-2054 |
US $7.67 |
||
|
23013B
|
23013B
23013-2055 SCREW-ASSY |
23013-2055 |
US $10.42 |
||
|
49121
|
49121
49121-2145
NOZZLE-MAIN
|
49121-2145 |
— | ||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92063
|
92063
92063-2232
JET-MAIN,#72
|
92063-2232 |
— | ||
|
92064
|
92064
92064-2082 JET-PILOT,#42 |
92064-2082 |
US $13.84 |
||
|
92150
|
92150
92150-2209 BOLT |
92150-2209 |
US $6.95 |
||
