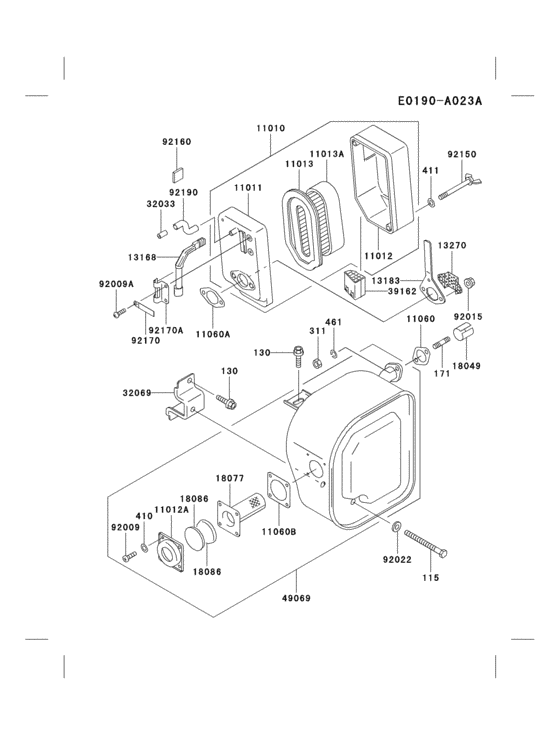

Air-filter/muffler Diagram Kawasaki GE2900A
- Engine Capacity
- 90
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115B0890
Bolt,8x90
|
115B0890 |
— | ||
|
130
|
130
130B0820 BOLT-FLANGED |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130
|
130
130AA0820 BOLT-FLANGED |
130AA0820 |
from US $1.05 |
||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
171
|
171
171G0616
Bolt-stud
|
171G0616 |
— | ||
|
311
|
311
311R0600 NUT,6M/M |
311R0600 |
from US $1.09 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
411
|
411
411F0500 WASHER-PLAIN |
411F0500 |
from US $0.56 |
||
| replacement | |||||
|
411
|
411
411AB0500 WASHER-PLAIN |
411AB0500 |
from US $1.24 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11010
|
11010
11010-2459 FILTER-ASSY-AIR |
11010-2459 |
US $77.74 |
||
|
11011
|
11011
11011-2241 CASE-AIR FILTER |
11011-2241 |
US $16.36 |
||
|
11012
|
11012
11012-2325 CAP |
11012-2325 |
US $13.46 |
||
|
11012A
|
11012A
11012-2333 CAP |
11012-2333 |
US $12.40 |
||
|
11013
|
11013
11013-2132
Element-air filter
|
11013-2132 |
— | ||
|
11013A
|
11013A
11013-2133 Element-air filter |
11013-2133 |
US $6.46 |
||
|
11060
|
11060
11060-2037 GASKET |
11060-2037 |
US $4.07 |
||
|
11060A
|
11060A
11060-2049 GASKET,AIR FILTER |
11060-2049 |
US $5.50 |
||
|
11060B
|
11060B
11060-2057 GASKET,SPARK ARRESTER |
11060-2057 |
US $9.45 |
||
| replacement | |||||
|
11060B
|
11060B
11060-2452 GASKET,SPARK ARRESTER |
11060-2452 |
US $9.45 |
||
|
13168
|
13168
13168-2368 LEVER |
13168-2368 |
US $5.90 |
||
|
13183
|
13183
13183-2527 PLATE |
13183-2527 |
US $8.32 |
||
|
13270
|
13270
13270-2003 PLATE |
13270-2003 |
US $5.90 |
||
|
18049
|
18049
18049-2202 PIPE-EXHAUST |
18049-2202 |
US $2.88 |
||
|
18077
|
18077
18077-2091 ARRESTER-SPARK |
18077-2091 |
US $24.97 |
||
| replacement | |||||
|
18077
|
18077
18077-2112 ARRESTER-SPARK |
18077-2112 |
US $24.97 |
||
|
18086
|
18086
18086-2001 SUPRESSOR |
18086-2001 |
US $10.04 |
||
|
32033
|
32033
32033-2001 PIPE |
32033-2001 |
US $3.80 |
||
|
32069
|
32069
32069-2073 BRACKET-MUFFLER |
32069-2073 |
US $15.35 |
||
|
39162
|
39162
39162-2055 SILENCER-INTAKE |
39162-2055 |
US $4.18 |
||
|
49069
|
49069
49069-2240 MUFFLER-ASSY |
49069-2240 |
US $302.99 |
||
| replacement | |||||
|
49069
|
49069
49069-2291 MUFFLER-ASSY |
49069-2291 |
US $302.99 |
||
|
92009
|
92009
92009-2155 SCREW |
92009-2155 |
US $2.50 |
||
|
92009A
|
92009A
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92026-2126 WASHER |
92026-2126 |
US $6.20 |
||
|
92150
|
92150
92150-2226 BOLT |
92150-2226 |
US $3.47 |
||
| replacement | |||||
|
92150
|
92150
92153-2085 BOLT |
92153-2085 |
US $3.47 |
||
|
92160
|
92160
92160-2036 DAMPER |
92160-2036 |
US $6.95 |
||
|
92170
|
92170
92170-2041 CLAMP |
92170-2041 |
US $1.89 |
||
|
92170A
|
92170A
92170-2076 CLAMP |
92170-2076 |
US $4.43 |
||
|
92190
|
92190
92190-2043 TUBE |
92190-2043 |
US $11.60 |
||
