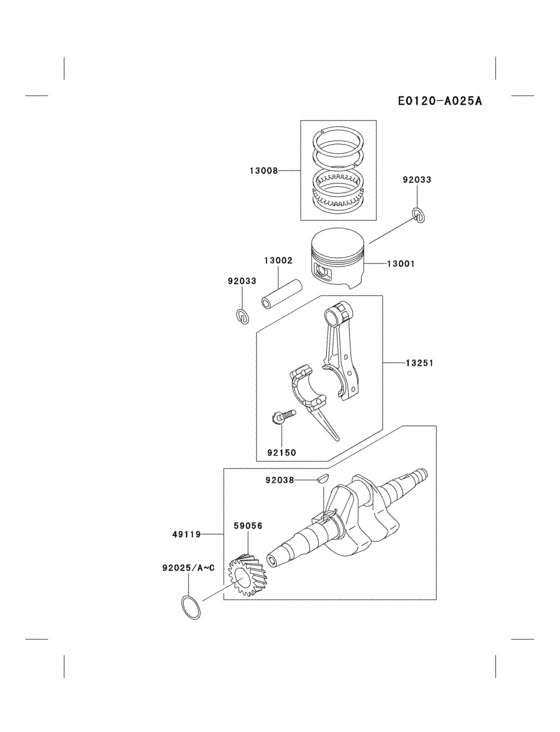

Piston/crankshaft Diagram Kawasaki GE2900A
- Engine Capacity
- 90
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-2124 PISTON-ENGINE |
13001-2124 |
US $46.51 |
||
|
13002
|
13002
13002-1004 PIN-PISTON |
13002-1004 |
from US $8.94 |
||
|
13008
|
13008
13008-6024 RING-SET-PISTON |
13008-6024 |
US $33.05 |
||
|
13251
|
13251
13251-6035 ROD-ASSY-CONNECTING |
13251-6035 |
US $58.66 |
||
| replacement | |||||
|
13251
|
13251
13251-6062 ROD-ASSY-CONNECTING |
13251-6062 |
US $58.66 |
||
|
49119
|
49119
49119-6139 CRANKSHAFT-ASSY |
49119-6139 |
US $211.77 |
||
|
59056
|
59056
59056-2895 GEAR-HELICAL |
59056-2895 |
US $39.35 |
||
|
92025
|
92025
92025-2080 SHIM-T=1.0 |
92025-2080 |
US $4.27 |
||
|
92025A
|
92025A
92025-2081 SHIM-T=1.2 |
92025-2081 |
US $4 |
||
|
92025B
|
92025B
92025-2082 SHIM-T=1.4 |
92025-2082 |
US $4.27 |
||
|
92025C
|
92025C
92025-2083 SHIM-T=1.6 |
92025-2083 |
US $4.27 |
||
|
92033
|
92033
92033-2053 RING, SNAP |
92033-2053 |
US $3.60 |
||
|
92038
|
92038
92038-2077 KEY |
92038-2077 |
US $12.50 |
||
|
92150
|
92150
92150-2122 BOLT,6X30 |
92150-2122 |
US $2.93 |
||
| replacement | |||||
|
92150
|
92150
92153-2097 BOLT,6X30 |
92153-2097 |
US $2.93 |
||
