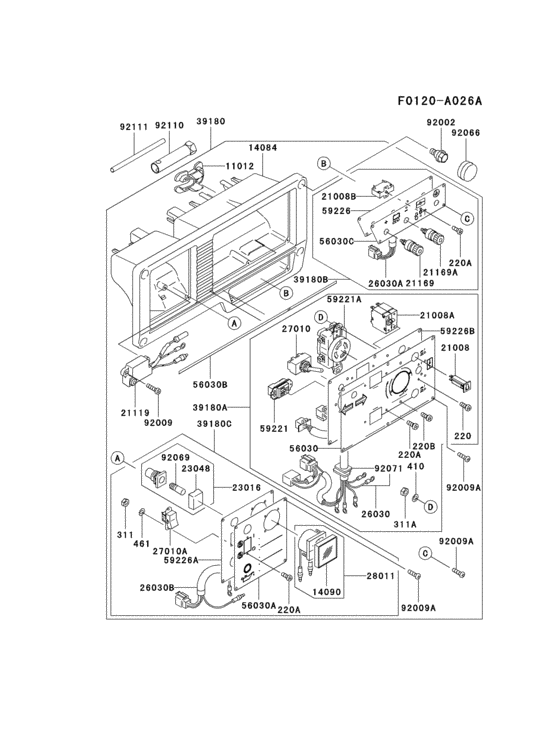

Control-panel Diagram Kawasaki GE2900A
- Engine Capacity
- 90
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220C0304
Screw-pan-cros
|
220C0304 |
— | ||
|
220A
|
220A
220C0308
SCREW-PAN-CROS
|
220C0308 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0308 SCREW-PAN-CROS |
220AB0308 |
from US $0.74 |
||
|
220B
|
220B
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220B
|
220B
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
311
|
311
311B0300 NUT-HEX |
311B0300 |
from US $0.16 |
||
| replacement | |||||
|
311
|
311
311AA0300 NUT-HEX |
311AA0300 |
from US $0.73 |
||
|
311A
|
311A
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311A
|
311A
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
461
|
461
461F0300
WASHER SPRING 3MM
|
461F0300 |
— | ||
| replacement | |||||
|
461
|
461
461DA0300 WASHER-SPRING |
461DA0300 |
from US $0.78 |
||
|
11012
|
11012
11012-2307 CAP |
11012-2307 |
US $2.97 |
||
|
14084
|
14084
14084-2069
Case-control
|
14084-2069 |
— | ||
|
14090
|
14090
14090-2048 METER |
14090-2048 |
US $142.70 |
||
| replacement | |||||
|
14090
|
14090
28011-2067 METER |
28011-2067 |
US $142.70 |
||
|
21008
|
21008
21008-2150
Breaker,15a
|
21008-2150 |
— | ||
|
21008A
|
21008A
21008-2172
Breaker
|
21008-2172 |
— | ||
|
21008B
|
21008B
27010-2005 BREAKER |
27010-2005 |
US $54.18 |
||
|
21119
|
21119
21119-2143
IGNITER
|
21119-2143 |
— | ||
|
21169
|
21169
21169-2052 TERMINAL (+) |
21169-2052 |
US $23.09 |
||
|
21169A
|
21169A
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
23016
|
23016
23016-2060 LAMP-ASSY |
23016-2060 |
US $15.89 |
||
|
23048
|
23048
23048-2051 LENS-SIGNAL LAMP |
23048-2051 |
US $2.97 |
||
|
26030
|
26030
26030-2198
Harness
|
26030-2198 |
— | ||
|
26030A
|
26030A
26030-2199
Harness
|
26030-2199 |
— | ||
|
26030B
|
26030B
26030-2200
Harness
|
26030-2200 |
— | ||
|
27010
|
27010
27010-2185
Switch
|
27010-2185 |
— | ||
|
27010A
|
27010A
27010-2194 SWITCH |
27010-2194 |
US $29.48 |
||
|
28011
|
28011
28011-2067 METER |
28011-2067 |
US $142.70 |
||
|
39180
|
39180
39180-2897
Panel-assy-control
|
39180-2897 |
— | ||
|
39180A
|
39180A
39180-2898
Panel-assy-control
|
39180-2898 |
— | ||
|
39180B
|
39180B
39180-2899
Panel-assy-control
|
39180-2899 |
— | ||
|
39180C
|
39180C
39180-2900
Panel-assy-control
|
39180-2900 |
— | ||
|
56030
|
56030
56030-2503
Label
|
56030-2503 |
— | ||
|
56030A
|
56030A
56030-2530 LABEL |
56030-2530 |
US $29.48 |
||
|
56030B
|
56030B
56030-2532
Label
|
56030-2532 |
— | ||
|
56030C
|
56030C
56030-2542
Label
|
56030-2542 |
— | ||
|
59221
|
59221
59221-2127
Connector-cord
|
59221-2127 |
— | ||
|
59221A
|
59221A
59221-2149 CONNECTOR-CORD,20A-12 |
59221-2149 |
US $106.11 |
||
|
59226
|
59226
59226-2286 PANEL-CONTROL |
59226-2286 |
US $15.35 |
||
|
59226A
|
59226A
59226-2287 PANEL CONTROL |
59226-2287 |
US $13.32 |
||
|
59226B
|
59226B
59226-2292
Panel-control
|
59226-2292 |
— | ||
|
92002
|
92002
92002-2283 BOLT |
92002-2283 |
US $1.82 |
||
|
92009
|
92009
92009-2339 SCREW |
92009-2339 |
US $1.80 |
||
|
92009A
|
92009A
92009-2352 SCREW |
92009-2352 |
US $5.15 |
||
|
92066
|
92066
92066-3734 PLUG |
92066-3734 |
from US $3.89 |
||
|
92069
|
92069
92069-2001 BULB |
92069-2001 |
US $8.62 |
||
|
92071
|
92071
92071-2131 GROMMET |
92071-2131 |
US $2.56 |
||
|
92110
|
92110
92110-2073 TOOL, WRENCH 21 |
92110-2073 |
US $4.27 |
||
|
92111
|
92111
92111-2053 BAR-TOOL |
92111-2053 |
US $1.85 |
||
