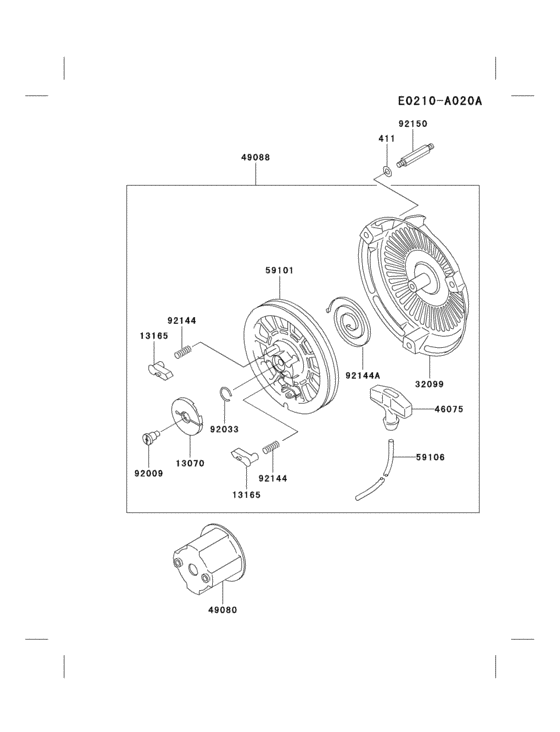

Starter Diagram Kawasaki GE2900A
- Engine Capacity
- 90
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
13070
|
13070
13070-2088 GUIDE,ROPE |
13070-2088 |
US $5.85 |
||
|
13165
|
13165
13165-2082
PAWL,RECOIL STARTER
|
13165-2082 |
— | ||
|
32099
|
32099
32099-2233-9H CASE |
32099-2233-9H |
US $51.52 |
||
| replacement | |||||
|
32099
|
32099
32099-2277-9H CASE |
32099-2277-9H |
US $51.52 |
||
|
46075
|
46075
46075-2003 GRIP-RECOIL STARTER |
46075-2003 |
US $8.68 |
||
| replacement | |||||
|
46075
|
46075
46075-2091 GRIP-RECOIL STARTER |
46075-2091 |
US $8.68 |
||
|
49080
|
49080
49080-2158 PULLEY-STARTING |
49080-2158 |
US $9.70 |
||
|
49088
|
49088
49088-2409-9H STARTER-RECOIL |
49088-2409-9H |
US $81.40 |
||
|
59101
|
59101
59101-2086 REEL,RECOIL STARTER |
59101-2086 |
US $27.56 |
||
|
59106
|
59106
59106-2119 ROPE,4X1500 |
59106-2119 |
US $11.81 |
||
|
92009
|
92009
92009-2311 SCREW |
92009-2311 |
US $12.50 |
||
|
92033
|
92033
92033-2160 RING-SNAP |
92033-2160 |
US $2 |
||
|
92144
|
92144
92144-2177 SPRING-RETURN |
92144-2177 |
US $2.25 |
||
|
92144A
|
92144A
92144-2272 SPRING |
92144-2272 |
US $18.94 |
||
|
92150
|
92150
92150-2265 BOLT |
92150-2265 |
US $6.28 |
||
