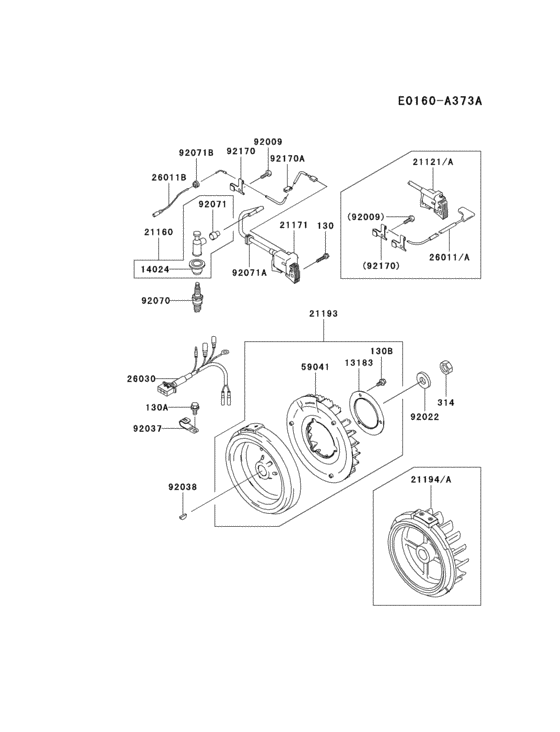

Electric-equipment Diagram Kawasaki GE4300A
- Engine Capacity
- 30
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0525
Bolt-flanged
|
130B0525 |
— | ||
| replacements | |||||
|
130
|
130
130BA0525 BOLT-FLANGED,5X25 |
130BA0525 |
from US $0.95 |
||
|
130
|
130
130AA0525
Bolt-flanged,5x25
|
130AA0525 |
— | ||
|
130A
|
130A
130B0812 BOLT-FLANGED,8X12 |
130B0812 |
US $0.47 |
||
| replacements | |||||
|
130A
|
130A
130BA0812 BOLT-FLANGED |
130BA0812 |
from US $1.27 |
||
|
130A
|
130A
130AA0812 BOLT-FLANGED,8X12 |
130AA0812 |
from US $1.13 |
||
|
130B
|
130B
130G0610 BOLT-FLANGED,6X10 |
130G0610 |
from US $1.11 |
||
| replacement | |||||
|
130B
|
130B
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
314
|
314
314G1600 NUT-HEX-FINE,16MM |
314G1600 |
US $1.40 |
||
| replacement | |||||
|
314
|
314
314BA1600 NUT-HEX-FINE,16MM |
314BA1600 |
from US $1.24 |
||
|
13183
|
13183
13183-2407 PLATE |
13183-2407 |
from US $2.95 |
||
|
14024
|
14024
14024-2234 COVER |
14024-2234 |
from US $2.49 |
||
|
21121A
|
21121A
21121-2067 COIL-IGNITION |
21121-2067 |
from US $45.10 |
||
|
21160
|
21160
21160-2051 CAP-ASSY-PLUG |
21160-2051 |
from US $12.90 |
||
|
21171
|
21171
21171-2207 COIL-ASSY-IGNITION |
21171-2207 |
from US $92.53 |
||
|
21193
|
21193
21193-2161 FLYWHEEL-ASSY |
21193-2161 |
US $293.20 |
||
|
21194A
|
21194A
21194-2264 FLYWHEEL-COMP |
21194-2264 |
US $224.05 |
||
|
26011A
|
26011A
26011-2239 WIRE-LEAD |
26011-2239 |
US $4.36 |
||
|
26011B
|
26011B
26011-2333 WIRE-LEAD,L=300 |
26011-2333 |
from US $7 |
||
|
26030
|
26030
26030-2162 HARNESS |
26030-2162 |
US $17.71 |
||
|
59041
|
59041
59041-2082 FAN |
59041-2082 |
US $10.82 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92022
|
92022
92022-2205 WASHER |
92022-2205 |
from US $1.71 |
||
|
92037
|
92037
92037-2098 CLAMP |
92037-2098 |
from US $1.56 |
||
|
92038
|
92038
92038-2094 KEY |
92038-2094 |
from US $1.56 |
||
|
92070
|
92070
92070-2077 Plug-spark,bpr5es(ngk |
92070-2077 |
US $7 |
||
|
92071
|
92071
92071-2008 DAMPER |
92071-2008 |
from US $1.09 |
||
|
92071A
|
92071A
92071-2112 GROMMET |
92071-2112 |
from US $2.33 |
||
|
92071B
|
92071B
92071-2125 GROMMET |
92071-2125 |
from US $1.40 |
||
|
92170
|
92170
92170-2016 CLAMP |
92170-2016 |
from US $1.71 |
||
|
92170A
|
92170A
92170-2017 CLAMP |
92170-2017 |
from US $2.49 |
||
