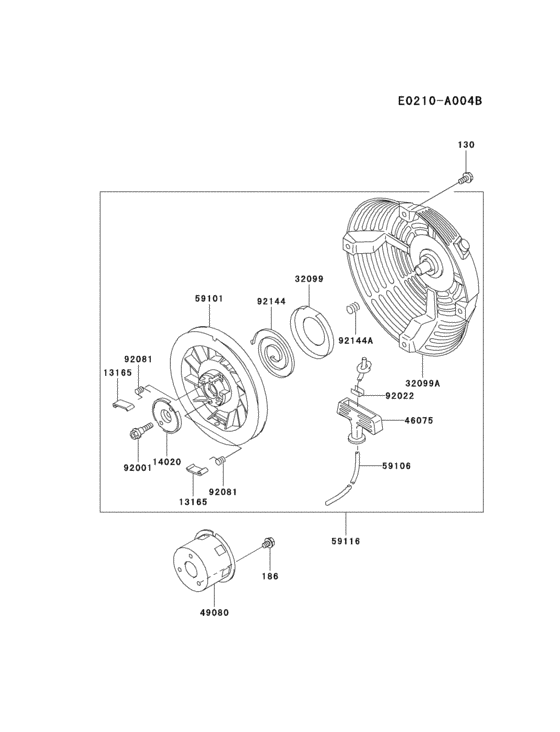

Starter Diagram Kawasaki GE4300A
- Engine Capacity
- 30
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0612
BOLT-FLANGED,6X12
|
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
186
|
186
186B0610 Bolt,upset |
186B0610 |
US $1.11 |
||
| replacement | |||||
|
186
|
186
186AA0610
Bolt-upset-wp
|
186AA0610 |
— | ||
|
13165
|
13165
13165-2073
PAWL-RECOIL
|
13165-2073 |
— | ||
|
14020
|
14020
14020-2094 RETAINER,RECOIL START |
14020-2094 |
US $9.70 |
||
|
32099
|
32099
32099-2193 CASE SPRING |
32099-2193 |
US $4.23 |
||
|
32099A
|
32099A
32099-2219-YK CASE,RECOIL STARTER |
32099-2219-YK |
US $66.60 |
||
|
46075
|
46075
46075-2092 GRIP |
46075-2092 |
US $7.47 |
||
|
49080
|
49080
49080-2154 PULLEY-STARTING |
49080-2154 |
US $8.32 |
||
|
59101
|
59101
59101-2091
REEL,RECOIL STARTER
|
59101-2091 |
— | ||
|
59106
|
59106
59106-2099
ROPE-4.5X1550
|
59106-2099 |
— | ||
|
59116
|
59116
59116-2330-YK STARTER-ASSY-RECOIL |
59116-2330-YK |
US $95.67 |
||
|
92001
|
92001
92001-2027 BOLT-RETAINER |
92001-2027 |
US $13.75 |
||
|
92022
|
92022
92022-2248 WASHER |
92022-2248 |
US $8.90 |
||
|
92081
|
92081
92081-2021 SPRING,RETURN |
92081-2021 |
US $8.90 |
||
|
92144
|
92144
92144-2055 SPRING-RECOIL |
92144-2055 |
US $13.10 |
||
|
92144A
|
92144A
92144-2212 SPRING |
92144-2212 |
US $11.05 |
||
