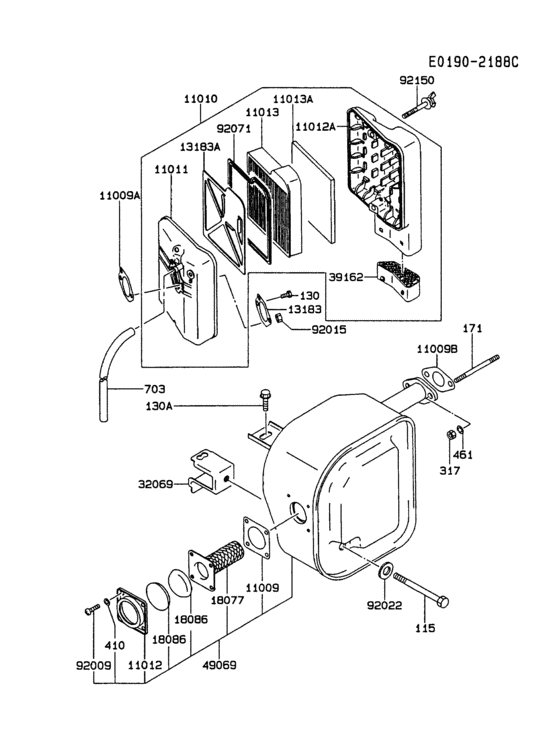

Air-filter/muffler Diagram Kawasaki GE4500A
- Engine Capacity
- 50
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115B0890
Bolt,8x90
|
115B0890 |
— | ||
|
130
|
130
130B0618
Bolt,flanged,6x18
|
130B0618 |
— | ||
| replacements | |||||
|
130
|
130
130BA0618 BOLT-FLANGED,6X18 |
130BA0618 |
from US $0.79 |
||
|
130
|
130
130AA0618 Bolt-flanged,6x18 |
130AA0618 |
US $0.88 |
||
|
130
|
130
130G0618 BOLT-FLANGED,6X18 |
130G0618 |
from US $1.01 |
||
|
130A
|
130A
130B0820 BOLT-FLANGED |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130A
|
130A
130AA0820 BOLT-FLANGED |
130AA0820 |
from US $1.05 |
||
|
130A
|
130A
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
171
|
171
171G0818 Bolt-stud |
171G0818 |
US $1.65 |
||
| replacement | |||||
|
171
|
171
171BA0818
Bolt-stud
|
171BA0818 |
— | ||
|
317
|
317
317R0800 NUT |
317R0800 |
from US $0.96 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
461
|
461
461F0800
WASHER-SPRING,8MM
|
461F0800 |
— | ||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
703
|
703
703A081000 TUBE-BRAID |
703A081000 |
US $11.43 |
||
|
11009
|
11009
11009-2375 Gasket,spark arrester |
11009-2375 |
US $40.15 |
||
| replacement | |||||
|
11009
|
11009
11060-2452 GASKET,SPARK ARRESTER |
11060-2452 |
US $9.45 |
||
|
11009A
|
11009A
11009-2867 Gasket |
11009-2867 |
US $1.22 |
||
| replacement | |||||
|
11009A
|
11009A
11060-2334 GASKET,AIR FILTER |
11060-2334 |
from US $1.21 |
||
|
11009B
|
11009B
11009-2163 GASKET |
11009-2163 |
US $17.90 |
||
| replacement | |||||
|
11009B
|
11009B
11009-2487 GASKET |
11009-2487 |
from US $5.49 |
||
|
11010
|
11010
11010-2404 FILTER-ASSY-AIR |
11010-2404 |
US $88.87 |
||
|
11011
|
11011
11011-2221 CASE-AIR-FILTER |
11011-2221 |
US $21.13 |
||
|
11012
|
11012
11012-2275 CAP |
11012-2275 |
US $7.65 |
||
|
11012A
|
11012A
11012-2276 CAP-AIR FILTER |
11012-2276 |
US $15.26 |
||
|
11013
|
11013
11013-2128
ELEMENT FILTER, PAPER
|
11013-2128 |
— | ||
|
11013A
|
11013A
11013-2129
ELEMENT FILTER, FOAM
|
11013-2129 |
— | ||
|
13183
|
13183
13183-2322 PLATE |
13183-2322 |
US $10.70 |
||
|
13183A
|
13183A
13183-2388 PLATE,AIR FILTER |
13183-2388 |
US $5.42 |
||
|
18077
|
18077
18077-2091 ARRESTER-SPARK |
18077-2091 |
US $24.97 |
||
| replacement | |||||
|
18077
|
18077
18077-2112 ARRESTER-SPARK |
18077-2112 |
US $24.97 |
||
|
18086
|
18086
18086-2001 SUPRESSOR |
18086-2001 |
US $10.04 |
||
|
32069
|
32069
32069-2067 BRACKET |
32069-2067 |
US $7.45 |
||
|
39162
|
39162
39162-2052 SILENCER,AIR INTAKE |
39162-2052 |
US $3.06 |
||
|
49069
|
49069
49069-2212 Muffler-assy |
49069-2212 |
US $313.45 |
||
| replacement | |||||
|
49069
|
49069
49069-2292 MUFFLER-ASSY |
49069-2292 |
US $313.45 |
||
|
92009
|
92009
92009-2204 SCREW |
92009-2204 |
US $1.25 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92026-2126 WASHER |
92026-2126 |
US $6.20 |
||
|
92071
|
92071
92071-2136 GROMMET |
92071-2136 |
US $10.42 |
||
|
92150
|
92150
92150-2167
BOLT
|
92150-2167 |
— | ||
