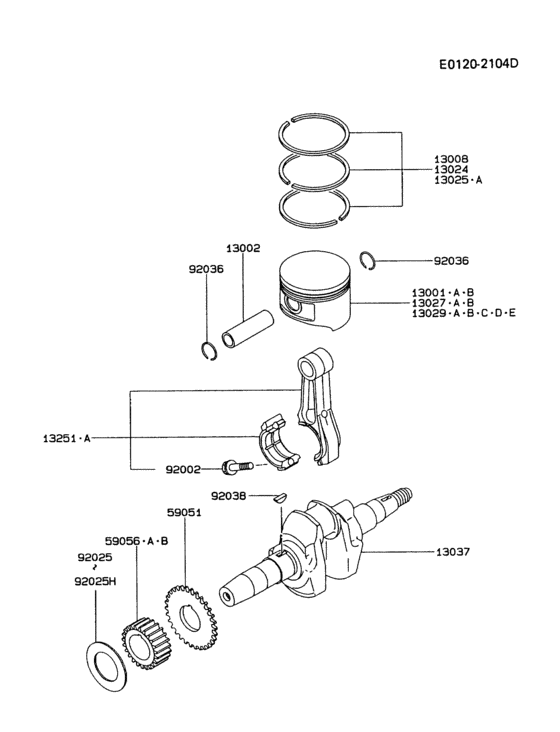

Piston/crankshaft Diagram Kawasaki GE4500A
- Engine Capacity
- 50
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-2118 Piston-engine |
13001-2118 |
US $39.40 |
||
| replacement | |||||
|
13001
|
13001
13001-2207 PISTON-ENGINE |
13001-2207 |
from US $51 |
||
|
13001B
|
13001B
13001-2125 Piston-engine,std |
13001-2125 |
US $39.46 |
||
| replacement | |||||
|
13001B
|
13001B
13001-2207 PISTON-ENGINE |
13001-2207 |
from US $51 |
||
|
13002
|
13002
13002-2069 PIN-PISTON |
13002-2069 |
from US $8.09 |
||
|
13008
|
13008
13008-6007 PISTON RING SET-STD |
13008-6007 |
from US $35.90 |
||
|
13024
|
13024
13024-2051 PISTON RING SET-.030 |
13024-2051 |
US $39.87 |
||
|
13025
|
13025
13025-2073 PISTON RING SET-.010 |
13025-2073 |
from US $38.10 |
||
|
13025A
|
13025A
13025-2074 PISTON RING SET- .50 |
13025-2074 |
from US $38.10 |
||
|
13027
|
13027
13027-2059 PISTON-ENGINE LL,0.75 |
13027-2059 |
US $59.98 |
||
|
13027B
|
13027B
13027-2060 PISTON-ENGINE LL,0.75 |
13027-2060 |
US $57.53 |
||
|
13029
|
13029
13029-2096 Piston-engine l,0.25 |
13029-2096 |
US $58.81 |
||
| replacements | |||||
|
13029
|
13029
13029-2129 PISTON-ENGINE L,0.25 |
13029-2129 |
from US $51 |
||
|
13029
|
13029
13029-0035 PISTON-ENGINE L,0.25 |
13029-0035 |
from US $51 |
||
|
13029A
|
13029A
13029-2097 PISTON-ENGINE L,0.50 |
13029-2097 |
US $48.58 |
||
| replacement | |||||
|
13029A
|
13029A
13029-0034 PISTON-ENGINE L,0.50 |
13029-0034 |
from US $51 |
||
|
13029C
|
13029C
13029-2100 PISTON-ENGINE L,0.25 |
13029-2100 |
US $62.32 |
||
| replacements | |||||
|
13029C
|
13029C
13029-2129 PISTON-ENGINE L,0.25 |
13029-2129 |
from US $51 |
||
|
13029C
|
13029C
13029-0035 PISTON-ENGINE L,0.25 |
13029-0035 |
from US $51 |
||
|
13029E
|
13029E
13029-2101 PISTON-ENGINE L,0.50 |
13029-2101 |
US $48.58 |
||
| replacement | |||||
|
13029E
|
13029E
13029-0034 PISTON-ENGINE L,0.50 |
13029-0034 |
from US $51 |
||
|
13037
|
13037
13037-6002 CRANKSHAFT-ASSY |
13037-6002 |
US $256.64 |
||
|
13251
|
13251
13251-6033 ROD-ASSY-CONNECTING |
13251-6033 |
US $64.96 |
||
| replacement | |||||
|
13251
|
13251
13251-2077 ROD-ASSY-CONNECTING |
13251-2077 |
from US $46.97 |
||
|
13251A
|
13251A
13251-6034 ROD-ASSY-CONNECTING,U |
13251-6034 |
US $72.88 |
||
| replacement | |||||
|
13251A
|
13251A
13251-2079 ROD-ASSY-CONNECTING,U |
13251-2079 |
from US $53.65 |
||
|
59051
|
59051
59051-2097 GEAR-SPUR |
59051-2097 |
from US $17.11 |
||
|
59056
|
59056
59056-2787 GEAR-HELICAL |
59056-2787 |
US $47.20 |
||
|
59056B
|
59056B
59056-2840 GEAR-HELICAL |
59056-2840 |
US $39.04 |
||
| replacement | |||||
|
59056B
|
59056B
59056-2993 GEAR-HELICAL |
59056-2993 |
from US $36.88 |
||
|
92002
|
92002
92002-2053 BOLT, CONNECTING ROD |
92002-2053 |
from US $1.71 |
||
|
92025
|
92025
92025-2168 SHIM-T=1.13 |
92025-2168 |
from US $3.11 |
||
|
92025A
|
92025A
92025-2169 SHIM-T=1.18 |
92025-2169 |
from US $3.11 |
||
|
92025B
|
92025B
92025-2170 SHIM-T=1.23 |
92025-2170 |
from US $3.11 |
||
|
92025C
|
92025C
92025-2171 SHIM-T=1.28 |
92025-2171 |
from US $3.11 |
||
|
92025D
|
92025D
92025-2172 SHIM-T=1.33 |
92025-2172 |
from US $3.11 |
||
|
92025E
|
92025E
92025-2173 SHIM-T=1.38 |
92025-2173 |
from US $3.11 |
||
|
92025F
|
92025F
92025-2174 SHIM-T=1.43 |
92025-2174 |
from US $3.11 |
||
|
92025G
|
92025G
92025-2175 SHIM-T=1.48 |
92025-2175 |
from US $3.11 |
||
|
92025H
|
92025H
92025-2207 SHIM-T=1.53 |
92025-2207 |
from US $3.11 |
||
|
92036
|
92036
92036-008 CIRCLIP PISTON PIN |
92036-008 |
from US $0.82 |
||
|
92038
|
92038
92038-2094 KEY |
92038-2094 |
from US $1.56 |
||
