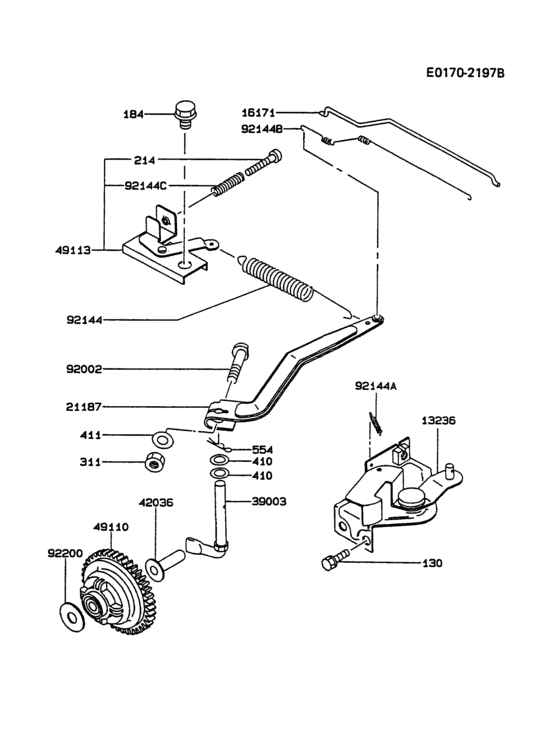

Control-equipment Diagram Kawasaki GE4500A
- Engine Capacity
- 50
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0612
BOLT-FLANGED,6X12
|
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
184
|
184
184B0814 BOLT-SMALL-UPSET |
184B0814 |
US $0.49 |
||
| replacement | |||||
|
184
|
184
184AA0814 BOLT-SMALL-UPSET |
184AA0814 |
US $0.45 |
||
|
214
|
214
214B0525
Screw-pan+-
|
214B0525 |
— | ||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
13236
|
13236
13236-2115 LEVER-COMP |
13236-2115 |
US $26.87 |
||
| replacement | |||||
|
13236
|
13236
13236-2126 LEVER-COMP |
13236-2126 |
US $26.87 |
||
|
16171
|
16171
16171-2061 LINK-THROTTLE |
16171-2061 |
from US $4.51 |
||
|
21187
|
21187
21187-2061 ARM-ASSY |
21187-2061 |
from US $4.46 |
||
|
39003
|
39003
39003-2067 ARM-PIVOT |
39003-2067 |
US $6.62 |
||
| replacement | |||||
|
39003
|
39003
39003-2076 ARM-PIVOT |
39003-2076 |
from US $9.50 |
||
|
42036
|
42036
42036-2060 SLEEVE-GOVERNOR |
42036-2060 |
from US $2.79 |
||
|
49110
|
49110
49110-2069 GOVERNOR-ASSY |
49110-2069 |
from US $11.51 |
||
| replacement | |||||
|
49110
|
49110
49110-2085 GOVERNOR-ASSY |
49110-2085 |
US $8.62 |
||
|
49113
|
49113
49113-2082 PANEL-COMP-CONTROL |
49113-2082 |
US $9.43 |
||
|
92002
|
92002
92002-2269 BOLT |
92002-2269 |
from US $1.09 |
||
|
92144
|
92144
92144-2247 SPRING |
92144-2247 |
US $3.29 |
||
| replacement | |||||
|
92144
|
92144
92144-2280 SPRING |
92144-2280 |
US $3.29 |
||
|
92144A
|
92144A
92144-2250 SPRING |
92144-2250 |
US $2.48 |
||
|
92144B
|
92144B
92144-2256 SPRING |
92144-2256 |
US $6.34 |
||
| replacement | |||||
|
92144B
|
92144B
92144-2340 SPRING |
92144-2340 |
from US $3.11 |
||
|
92144C
|
92144C
92144-2266 SPRING,RPM ADJUSTMENT |
92144-2266 |
from US $3.01 |
||
|
92200
|
92200
92200-2036 WASHER,6.2X20X0.5 |
92200-2036 |
from US $1.09 |
||
