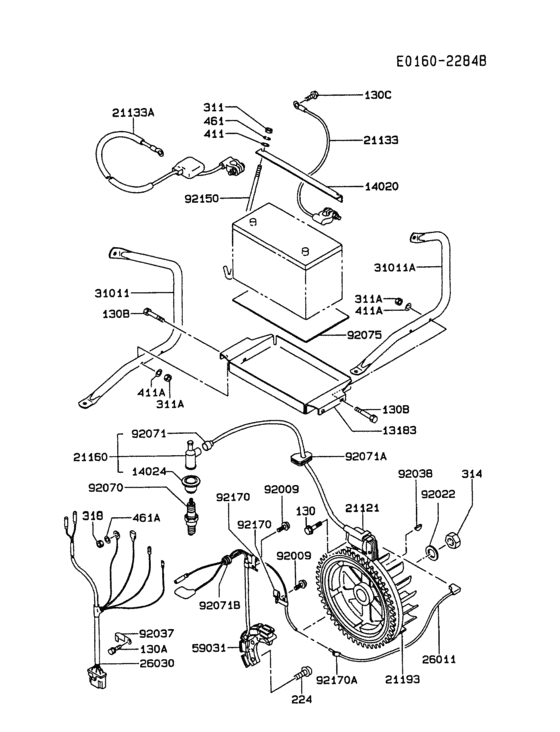

Electric-equipment Diagram Kawasaki GE4500A
- Engine Capacity
- 50
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0525
Bolt-flanged
|
130B0525 |
— | ||
| replacements | |||||
|
130
|
130
130BA0525 BOLT-FLANGED,5X25 |
130BA0525 |
from US $0.95 |
||
|
130
|
130
130AA0525
Bolt-flanged,5x25
|
130AA0525 |
— | ||
|
130A
|
130A
130B0810 BOLT-FLANGED |
130B0810 |
US $0.72 |
||
| replacement | |||||
|
130A
|
130A
130AA0810 BOLT-FLANGED |
130AA0810 |
US $7.20 |
||
|
130B
|
130B
130C0630 Bolt-flanged |
130C0630 |
US $0.48 |
||
| replacements | |||||
|
130B
|
130B
130BB0630 BOLT-FLANGED,6X30,BLA |
130BB0630 |
from US $1.27 |
||
|
130B
|
130B
130AB0630
Bolt-flanged
|
130AB0630 |
— | ||
|
130C
|
130C
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130C
|
130C
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
224
|
224
224B0620
SCREW-PAN-WP-CROS,6X2
|
224B0620 |
— | ||
| replacement | |||||
|
224
|
224
224AA0620 SCREW-PAN-WP-CROS,6X2 |
224AA0620 |
from US $0.92 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
311A
|
311A
311C0600 NUT-HEX,6MM |
311C0600 |
from US $0.18 |
||
| replacement | |||||
|
311A
|
311A
311AB0600 NUT-HEX,6MM |
311AB0600 |
from US $0.75 |
||
|
314
|
314
314G1600 NUT-HEX-FINE,16MM |
314G1600 |
US $1.40 |
||
| replacement | |||||
|
314
|
314
314BA1600 NUT-HEX-FINE,16MM |
314BA1600 |
from US $1.24 |
||
|
318
|
318
318B0800
NUT-HEX-SMALL
|
318B0800 |
— | ||
| replacement | |||||
|
318
|
318
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
411A
|
411A
411F0600 WASHER-PLAIN,6.5X13X1 |
411F0600 |
from US $1.53 |
||
| replacement | |||||
|
411A
|
411A
411AB0600 WASHER-PLAIN,(6.5x13x1) |
411AB0600 |
from US $0.63 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
461A
|
461A
461F0800
WASHER-SPRING,8MM
|
461F0800 |
— | ||
| replacement | |||||
|
461A
|
461A
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
13183
|
13183
13183-2328-9H PLATE |
13183-2328-9H |
US $53.12 |
||
|
14020
|
14020
14020-2098-9H RETAINER |
14020-2098-9H |
US $12.74 |
||
|
14024
|
14024
14024-2234 COVER |
14024-2234 |
from US $2.49 |
||
|
21121
|
21121
21121-2067 COIL-IGNITION |
21121-2067 |
from US $45.10 |
||
|
21133
|
21133
21133-2059 CORD |
21133-2059 |
US $15.89 |
||
|
21133A
|
21133A
21133-2012 WIRE,LEAD |
21133-2012 |
US $26.24 |
||
|
21160
|
21160
21160-2051 CAP-ASSY-PLUG |
21160-2051 |
from US $12.90 |
||
|
21193
|
21193
21193-2090 KIT-KHI PARTS |
21193-2090 |
US $456.44 |
||
| replacement | |||||
|
21193
|
21193
99916-6014 KIT-KHI PARTS |
99916-6014 |
US $456.44 |
||
|
26011
|
26011
26011-2239 WIRE-LEAD |
26011-2239 |
US $4.36 |
||
|
26030
|
26030
26030-2034 HARNESS |
26030-2034 |
US $13.30 |
||
|
31011
|
31011
31011-2085-9H FRAME |
31011-2085-9H |
US $42.46 |
||
|
31011A
|
31011A
31011-2086-9H FRAME |
31011-2086-9H |
US $42.46 |
||
|
59031
|
59031
59031-2087 COIL-CHARGING |
59031-2087 |
US $50.67 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92022
|
92022
92022-2205 WASHER |
92022-2205 |
from US $1.71 |
||
|
92037
|
92037
92037-2098 CLAMP |
92037-2098 |
from US $1.56 |
||
|
92038
|
92038
92038-2094 KEY |
92038-2094 |
from US $1.56 |
||
|
92070
|
92070
92070-2077 Plug-spark,bpr5es(ngk |
92070-2077 |
US $7 |
||
|
92071
|
92071
92071-2008 DAMPER |
92071-2008 |
from US $1.09 |
||
|
92071A
|
92071A
92071-2112 GROMMET |
92071-2112 |
from US $2.33 |
||
|
92071B
|
92071B
92071-2125 GROMMET |
92071-2125 |
from US $1.40 |
||
|
92075
|
92075
92075-2010 MAT,BATTERY |
92075-2010 |
US $16.36 |
||
|
92150
|
92150
92150-2181 BOLT |
92150-2181 |
US $3.10 |
||
|
92170
|
92170
92170-2016 CLAMP |
92170-2016 |
from US $1.71 |
||
|
92170A
|
92170A
92170-2017 CLAMP |
92170-2017 |
from US $2.49 |
||
