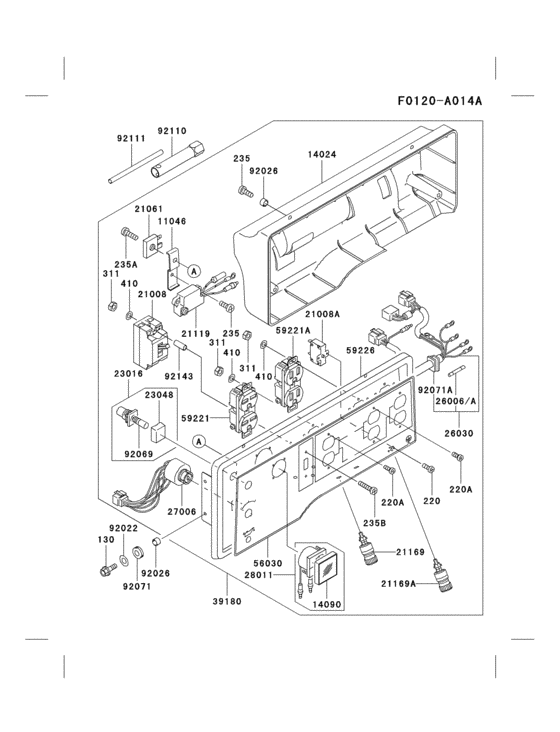

Control-panel Diagram Kawasaki GE5000A
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0616
BOLT-FLANGED
|
130C0616 |
— | ||
| replacements | |||||
|
130
|
130
130AB0616 BOLT-FLANGED |
130AB0616 |
from US $1 |
||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
220
|
220
220C0308
SCREW-PAN-CROS
|
220C0308 |
— | ||
| replacement | |||||
|
220
|
220
220AB0308 SCREW-PAN-CROS |
220AB0308 |
from US $0.74 |
||
|
220A
|
220A
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220A
|
220A
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
235
|
235
235B0512 SCREW-PAN-WP-CROS |
235B0512 |
US $3.40 |
||
| replacement | |||||
|
235
|
235
235AA0512 SCREW-PAN-WP-CROS |
235AA0512 |
from US $0.95 |
||
|
235A
|
235A
235B0520 SCREW-PAN-WP-CROS |
235B0520 |
US $0.22 |
||
| replacement | |||||
|
235A
|
235A
241B0520 SCREW-PAN-WP-CROS |
241B0520 |
US $0.22 |
||
|
235B
|
235B
235C0450 SCREW-PAN-WP-CROS |
235C0450 |
US $0.86 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.78 |
||
|
11046
|
11046
11046-2128 BRACKET |
11046-2128 |
US $2.72 |
||
|
14024
|
14024
14024-2274 COVER |
14024-2274 |
US $38.39 |
||
|
14090
|
14090
14090-2048 METER |
14090-2048 |
US $142.70 |
||
| replacement | |||||
|
14090
|
14090
28011-2067 METER |
28011-2067 |
US $142.70 |
||
|
21008
|
21008
21008-2161 BREAKER |
21008-2161 |
US $90.79 |
||
|
21008A
|
21008A
21008-2008 BREAKER |
21008-2008 |
US $97.83 |
||
| replacement | |||||
|
21008A
|
21008A
21008-2068 BREAKER |
21008-2068 |
US $97.83 |
||
|
21061
|
21061
21061-2059 RECTIFIER |
21061-2059 |
US $16.13 |
||
|
21119
|
21119
21119-2147 IGNITER |
21119-2147 |
US $123.52 |
||
|
21169
|
21169
21169-2052 TERMINAL (+) |
21169-2052 |
US $23.09 |
||
|
21169A
|
21169A
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
23016
|
23016
23016-2060 LAMP-ASSY |
23016-2060 |
US $15.89 |
||
|
23048
|
23048
23048-2051 LENS-SIGNAL LAMP |
23048-2051 |
US $2.97 |
||
|
26006
|
26006
26006-2004 FUSE 2A |
26006-2004 |
US $8.10 |
||
|
26006A
|
26006A
26006-2005 FUSE 5A |
26006-2005 |
US $1.87 |
||
|
26030
|
26030
26030-2185
Harness
|
26030-2185 |
— | ||
|
27006
|
27006
27006-2057 SWITCH-IGNITION |
27006-2057 |
US $53.91 |
||
|
28011
|
28011
28011-2067 METER |
28011-2067 |
US $142.70 |
||
|
39180
|
39180
39180-2862
Panel-assy-control
|
39180-2862 |
— | ||
|
56030
|
56030
56030-2513
Label
|
56030-2513 |
— | ||
|
59221
|
59221
59221-2077
Connector-cord
|
59221-2077 |
— | ||
|
59221A
|
59221A
59221-2094 CONNECTOR-CORD |
59221-2094 |
US $34.69 |
||
|
59226
|
59226
59226-2268-XM PANEL CONTROL |
59226-2268-XM |
US $194.63 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92026
|
92026
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92069
|
92069
92069-2001 BULB |
92069-2001 |
US $8.62 |
||
|
92071
|
92071
92071-2127 GROMMET |
92071-2127 |
US $0.74 |
||
|
92071A
|
92071A
92071-2131 GROMMET |
92071-2131 |
US $2.56 |
||
|
92110
|
92110
92110-2094 TOOL-WRENCH,21 |
92110-2094 |
US $4.34 |
||
|
92111
|
92111
92111-2053 BAR-TOOL |
92111-2053 |
US $1.85 |
||
|
92143
|
92143
92143-2164 COLLAR |
92143-2164 |
US $0.54 |
||
