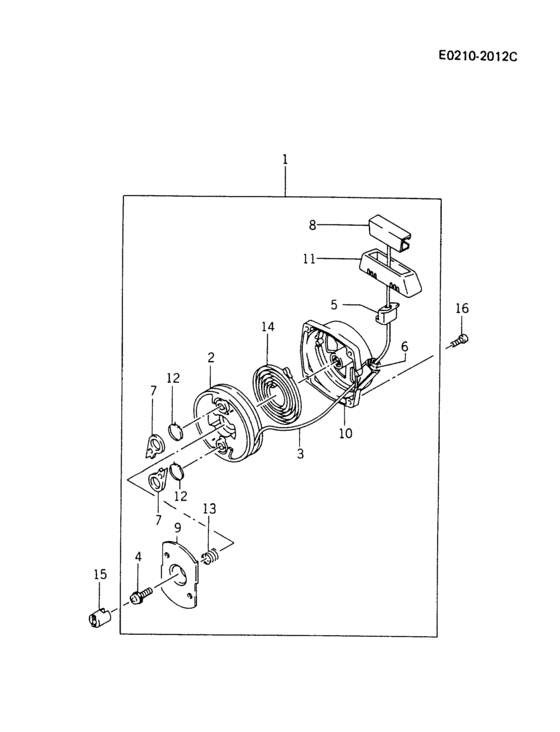

Starter Diagram Kawasaki IGD56A
- Engine Capacity
- 550
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49088-2278 RECOIL STARTER ASS'Y |
49088-2278 |
US $87.73 |
||
|
2
|
2
59101-2068 REEL, RECOIL |
59101-2068 |
US $20.66 |
||
|
3
|
3
59106-2078 ROPE, (3.8X1100) |
59106-2078 |
US $6.91 |
||
|
4
|
4
92009-2031 SCREW |
92009-2031 |
US $14.75 |
||
|
5
|
5
13070-2055 GUIDE-ROPE |
13070-2055 |
US $4.16 |
||
|
6
|
6
13070-2011 GUIDE, ROPE |
13070-2011 |
US $5.54 |
||
|
7
|
7
13165-2063 PAWL, RECOIL |
13165-2063 |
US $15.65 |
||
|
8
|
8
13183-2007 PLATE |
13183-2007 |
US $3.62 |
||
|
9
|
9
14020-2064 RETAINER |
14020-2064 |
US $8.24 |
||
|
10
|
10
32099-2086 CASE, RECOIL |
32099-2086 |
US $43.56 |
||
|
11
|
11
46075-2062 HANDLE-RECOIL |
46075-2062 |
US $7.47 |
||
|
12
|
12
92081-2319 SPRING, RETURN |
92081-2319 |
US $11.60 |
||
|
13
|
13
92081-2320 SPRING |
92081-2320 |
US $11.60 |
||
|
14
|
14
92081-2321 SPRING, RECOIL |
92081-2321 |
US $22.61 |
||
|
15
|
15
49080-2110 PULLEY |
49080-2110 |
US $12.51 |
||
|
16
|
16
92009-2204 SCREW |
92009-2204 |
US $1.25 |
