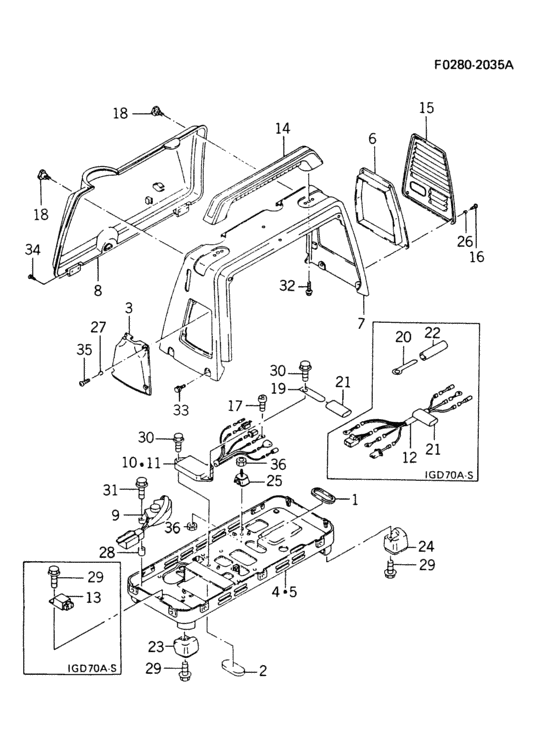

Frame b02/b04 Diagram Kawasaki IGD70A
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11009-2454 GASKET |
11009-2454 |
US $1.44 |
||
|
3
|
3
14024-2096 COVER |
14024-2096 |
US $10.58 |
||
|
5
|
5
14024-2224-9H
Cover
|
14024-2224-9H |
— | ||
|
6
|
6
14073-2064 DUCT |
14073-2064 |
US $25.97 |
||
|
7
|
7
16146-2113-9H COVER ASSY |
16146-2113-9H |
US $127.91 |
||
|
8
|
8
16146-2161-ZN
Cover-assy
|
16146-2161-ZN |
— | ||
|
9
|
9
21066-2062 REGULATOR-VOLTAGE |
21066-2062 |
US $165.49 |
||
|
10
|
10
21119-2129 IGNITER |
21119-2129 |
US $105.01 |
||
|
14
|
14
46003-2054 HANDLE |
46003-2054 |
from US $46.98 |
||
|
15
|
15
59366-2064-9H GRATE |
59366-2064-9H |
US $15.52 |
||
|
16
|
16
92009-1182
SCREW
|
92009-1182 |
— | ||
| replacements | |||||
|
16
|
16
92172-0008 SCREW,5X12 |
92172-0008 |
from US $1.11 |
||
|
16
|
16
92009-1455
SCREW
|
92009-1455 |
— | ||
|
17
|
17
92009-2201 SCREW |
92009-2201 |
US $0.80 |
||
|
18
|
18
92009-2231 SCREW |
92009-2231 |
US $3.53 |
||
|
19
|
19
92037-2006 CLAMP |
92037-2006 |
from US $0.62 |
||
|
21
|
21
92059-2011 TUBE |
92059-2011 |
from US $0.46 |
||
|
23
|
23
92075-2106 DAMPER |
92075-2106 |
US $12.51 |
||
|
24
|
24
92075-2107 DAMPER |
92075-2107 |
US $13.27 |
||
|
25
|
25
92075-2109 DAMPER |
92075-2109 |
US $12.49 |
||
|
26
|
26
92143-2002 COLLAR |
92143-2002 |
US $0.29 |
||
|
27
|
27
92143-2003 COLLAR |
92143-2003 |
US $1.35 |
||
|
28
|
28
92143-2004 COLLAR |
92143-2004 |
US $1.19 |
||
|
29
|
29
130B0508
Bolt-flanged,5x8
|
130B0508 |
— | ||
| replacements | |||||
|
29
|
29
130BA0508 BOLT-FLANGED |
130BA0508 |
from US $0.95 |
||
|
29
|
29
130AA0508
Bolt-flanged
|
130AA0508 |
— | ||
|
30
|
30
130B0514 BOLT (5X14) |
130B0514 |
US $0.34 |
||
| replacement | |||||
|
30
|
30
130CA0514 BOLT-FLANGED |
130CA0514 |
from US $0.95 |
||
|
31
|
31
130B0520 BOLT-FLANGED |
130B0520 |
US $0.47 |
||
| replacements | |||||
|
31
|
31
130CA0520 BOLT-FLANGED,5X20 |
130CA0520 |
from US $0.79 |
||
|
31
|
31
130AA0520 BOLT-FLANGED |
130AA0520 |
from US $0.94 |
||
|
32
|
32
130B0820 BOLT-FLANGED |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
32
|
32
130AA0820 BOLT-FLANGED |
130AA0820 |
from US $1.05 |
||
|
32
|
32
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
33
|
33
186C0612
BOLT-UPSET-WP
|
186C0612 |
— | ||
| replacement | |||||
|
33
|
33
186AB0612 BOLT-UPSET-WP |
186AB0612 |
from US $1.09 |
||
|
34
|
34
221C0306
SCREW-CSK-CROS
|
221C0306 |
— | ||
| replacement | |||||
|
34
|
34
221AB0306 SCREW-CSK-CROS |
221AB0306 |
from US $1.07 |
||
|
35
|
35
224C0410
Screw-pan-wp-cros
|
224C0410 |
— | ||
|
36
|
36
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
36
|
36
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
