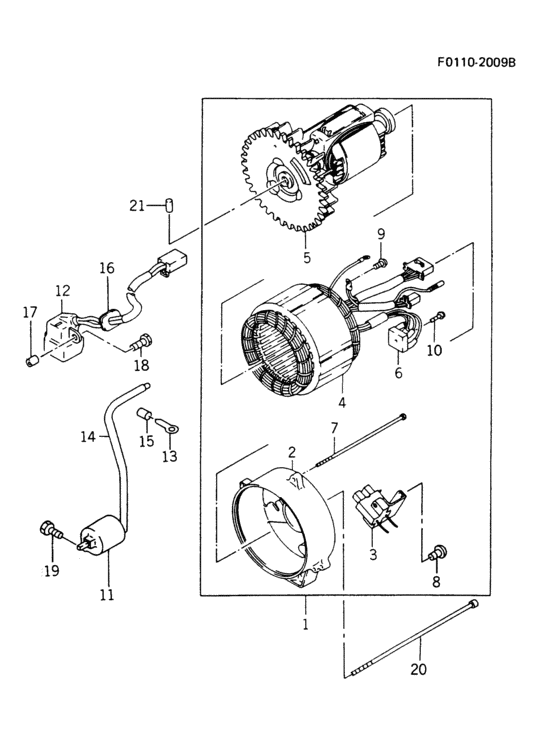

Generator b02/b04 Diagram Kawasaki IGD70A
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21001-2210
Generator
|
21001-2210 |
— | ||
|
2
|
2
13227-2069 HOUSING |
13227-2069 |
US $77.06 |
||
|
3
|
3
14079-2059
HOLDER ASSY.
|
14079-2059 |
— | ||
|
4
|
4
21003-2185
Stator
|
21003-2185 |
— | ||
|
5
|
5
21007-2060 ROTOR ASSY |
21007-2060 |
US $503.06 |
||
|
6
|
6
49018-2055 DIODE |
49018-2055 |
US $39.40 |
||
| replacement | |||||
|
6
|
6
49018-6001 DIODE |
49018-6001 |
US $39.40 |
||
|
7
|
7
92002-2308 BOLT |
92002-2308 |
US $2.41 |
||
|
8
|
8
92009-2200 SCREW |
92009-2200 |
US $0.80 |
||
|
9
|
9
92009-2268 SCREW |
92009-2268 |
US $1.35 |
||
|
10
|
10
234B0420
Screw-pan-wsp+-
|
234B0420 |
— | ||
|
11
|
11
21121-2065 COIL-IGNITION |
21121-2065 |
US $96.26 |
||
| replacement | |||||
|
11
|
11
21121-2072 COIL-IGNITION |
21121-2072 |
US $96.26 |
||
|
12
|
12
59026-2053 COIL-PULSING |
59026-2053 |
US $25.11 |
||
|
13
|
13
92027-2094 COLLAR |
92027-2094 |
US $1.37 |
||
|
14
|
14
92037-2190 CLAMP |
92037-2190 |
US $1.70 |
||
|
15
|
15
92059-2208 TUBE |
92059-2208 |
US $2.14 |
||
|
16
|
16
92059-2234 TUBE |
92059-2234 |
US $0.56 |
||
|
17
|
17
92071-2085 GROMMET |
92071-2085 |
US $1.19 |
||
|
18
|
18
112B0512 BOLT-UPSET |
112B0512 |
US $1.03 |
||
| replacement | |||||
|
18
|
18
112AA0512
BOLT-UPSET
|
112AA0512 |
— | ||
|
19
|
19
187B0635 BOLT-UPSET-WSP |
187B0635 |
US $0.83 |
||
| replacement | |||||
|
19
|
19
187AA0635 BOLT-UPSET-WSP |
187AA0635 |
from US $0.83 |
||
|
20
|
20
92002-2320 BOLT |
92002-2320 |
US $4.70 |
||
|
21
|
21
551A0308 PIN DOWEL 3X8 |
551A0308 |
from US $0.88 |
||
