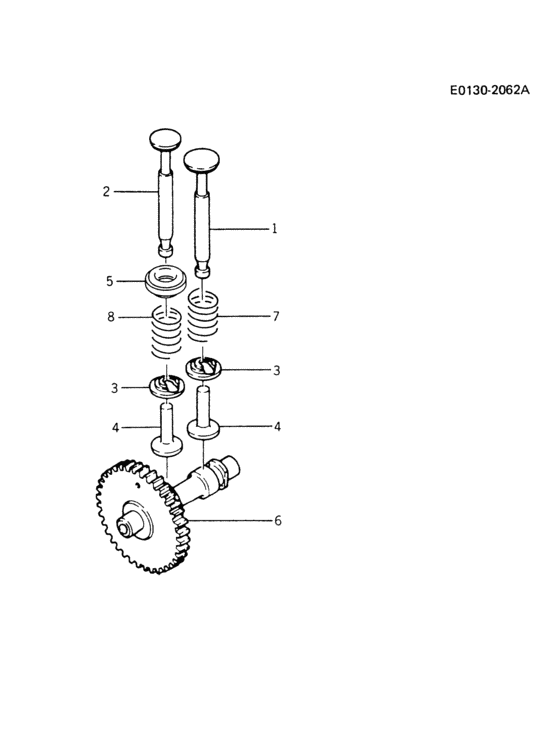

Valve/camshaft b02/b04 Diagram Kawasaki IGD70A
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12004-2011 Valve,intake |
12004-2011 |
US $26.44 |
||
|
2
|
2
12005-2063
Valve-exhaust
|
12005-2063 |
— | ||
|
3
|
3
12009-2055 RETAINER-SPRING |
12009-2055 |
US $5.95 |
||
|
4
|
4
12032-2005 Tappet |
12032-2005 |
US $6.48 |
||
|
5
|
5
12039-2051
Rotator
|
12039-2051 |
— | ||
|
6
|
6
12044-2067 CAM SHAFT |
12044-2067 |
US $72.04 |
||
|
7
|
7
49078-2005 SPRING VALVE |
49078-2005 |
US $9.45 |
||
|
8
|
8
49078-2057
Spring-engine valve
|
49078-2057 |
— |
