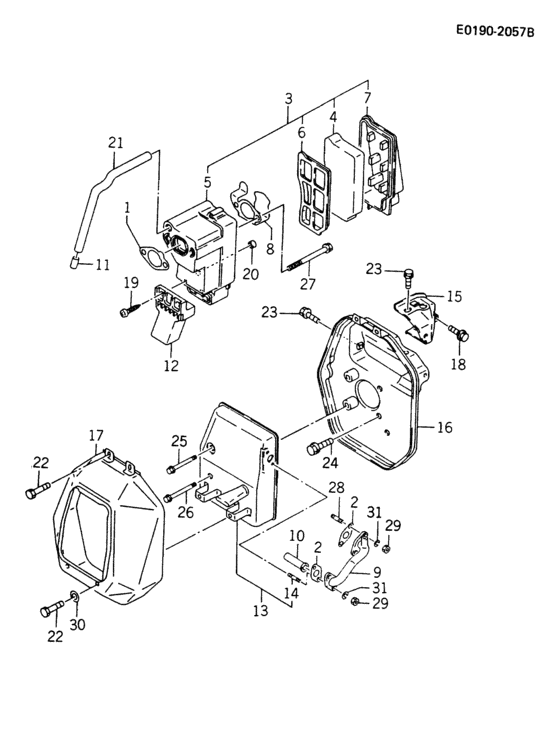

Air-filter/muffler b02/b04 Diagram Kawasaki IGD70A
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11009-2451 GASKET |
11009-2451 |
US $7.85 |
||
| replacement | |||||
|
1
|
1
11060-2192 GASKET |
11060-2192 |
US $1.57 |
||
|
2
|
2
11009-2028
Gasket,muffler
|
11009-2028 |
— | ||
| replacement | |||||
|
2
|
2
11060-2100
Gasket,muffler
|
11060-2100 |
— | ||
|
3
|
3
11010-2346 AIR FILTER ASSY |
11010-2346 |
US $19.21 |
||
|
4
|
4
11013-2101
ELEMENT, AIR FILTER
|
11013-2101 |
— | ||
|
5
|
5
11038-2054 CASE-AIR CLEANER |
11038-2054 |
US $6.95 |
||
|
6
|
6
13169-2431 PLATE-AIR CLEANER |
13169-2431 |
US $2.80 |
||
|
7
|
7
14024-2029 COVER-AIR FILTER |
14024-2029 |
US $4.90 |
||
|
8
|
8
13169-2432 PLATE |
13169-2432 |
US $3.06 |
||
|
9
|
9
18049-2153 PIPE-EXHAUST |
18049-2153 |
US $31.10 |
||
|
10
|
10
18077-2080 ARRESTER-SPARK |
18077-2080 |
US $16.92 |
||
|
11
|
11
32033-2001 PIPE |
32033-2001 |
US $3.80 |
||
|
12
|
12
39162-2051 SILENCER, INTAKE |
39162-2051 |
US $5.85 |
||
|
13
|
13
49070-2416 MUFFLER COMP |
49070-2416 |
US $106.09 |
||
|
14
|
14
171G0616
Bolt-stud
|
171G0616 |
— | ||
|
15
|
15
49125-2053 SHROUD |
49125-2053 |
US $6.77 |
||
|
16
|
16
49125-2067 SHROUD |
49125-2067 |
US $59.94 |
||
|
17
|
17
49125-2072 SHROUD |
49125-2072 |
US $66.60 |
||
|
18
|
18
92002-2283 BOLT |
92002-2283 |
US $1.82 |
||
|
19
|
19
92009-2213 SCREW |
92009-2213 |
US $0.29 |
||
|
20
|
20
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
21
|
21
92059-2188 TUBE |
92059-2188 |
US $6.50 |
||
|
22
|
22
130B0510 BOLT-FLANGED |
130B0510 |
US $0.76 |
||
| replacements | |||||
|
22
|
22
130CA0510 BOLT-FLANGED |
130CA0510 |
from US $0.95 |
||
|
22
|
22
130AA0510 BOLT-FLANGED |
130AA0510 |
from US $0.95 |
||
|
23
|
23
130B0610
BOLT-FLANGED,6X10
|
130B0610 |
— | ||
| replacements | |||||
|
23
|
23
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
23
|
23
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
24
|
24
130B0812 BOLT-FLANGED,8X12 |
130B0812 |
US $0.47 |
||
| replacements | |||||
|
24
|
24
130BA0812 BOLT-FLANGED |
130BA0812 |
from US $1.27 |
||
|
24
|
24
130AA0812 BOLT-FLANGED,8X12 |
130AA0812 |
from US $1.13 |
||
|
25
|
25
130B0860
Bolt-flanged
|
130B0860 |
— | ||
|
26
|
26
130B0865
Bolt-flanged
|
130B0865 |
— | ||
|
27
|
27
130G0665 BOLT-FLANGED |
130G0665 |
US $0.99 |
||
| replacements | |||||
|
27
|
27
92002-1140 BOLT,6X65 |
92002-1140 |
from US $2.93 |
||
|
27
|
27
130BA0665 BOLT-FLANGED |
130BA0665 |
from US $1.24 |
||
|
28
|
28
171G0616
Bolt-stud
|
171G0616 |
— | ||
|
29
|
29
311R0600 NUT,6M/M |
311R0600 |
from US $1.09 |
||
|
30
|
30
411B0500
W-PLAIN-S
|
411B0500 |
— | ||
| replacements | |||||
|
30
|
30
411AA0500 WASHER-PLAIN,5MM |
411AA0500 |
from US $0.88 |
||
|
30
|
30
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
31
|
31
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
31
|
31
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
