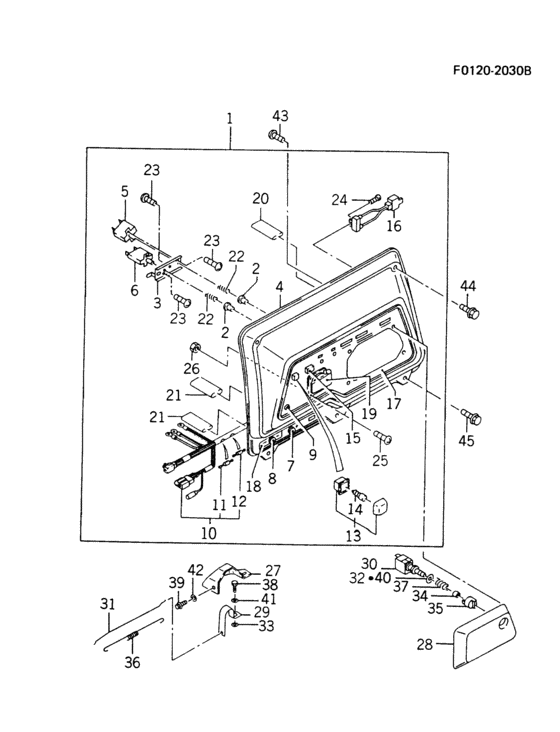

Control-panel b02/b04 Diagram Kawasaki IGD70A
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39180-2610
Panel-assy-control
|
39180-2610 |
— | ||
|
2
|
2
11012-2201 CAP |
11012-2201 |
US $2.45 |
||
|
3
|
3
11045-2039 BRACKET |
11045-2039 |
US $3.89 |
||
|
4
|
4
16146-2162-ZN
Cover-assy
|
16146-2162-ZN |
— | ||
|
5
|
5
21008-2112 BREAKER (DC10A) |
21008-2112 |
US $54.23 |
||
|
6
|
6
21008-2135
Breaker,3.0a
|
21008-2135 |
— | ||
|
7
|
7
21169-2052 TERMINAL (+) |
21169-2052 |
US $23.09 |
||
|
8
|
8
21169-2053 TERMINAL (-) |
21169-2053 |
US $22.79 |
||
|
9
|
9
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
9
|
9
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
10
|
10
26001-2361
Harness
|
26001-2361 |
— | ||
|
11
|
11
26006-2004 FUSE 2A |
26006-2004 |
US $8.10 |
||
|
12
|
12
49018-2004 RECTIFIER |
49018-2004 |
US $41.65 |
||
|
13
|
13
27010-2129
SWITCH
|
27010-2129 |
— | ||
| replacement | |||||
|
13
|
13
27010-2208
SWITCH
|
27010-2208 |
— | ||
|
14
|
14
92069-2051 BULB |
92069-2051 |
US $10.60 |
||
|
15
|
15
28011-2058
Meter
|
28011-2058 |
— | ||
|
16
|
16
28018-2052
RESISTOR
|
28018-2052 |
— | ||
|
17
|
17
56030-2365
Label
|
56030-2365 |
— | ||
|
18
|
18
56030-2366
Label
|
56030-2366 |
— | ||
|
19
|
19
59221-2130
Connector-cord
|
59221-2130 |
— | ||
|
20
|
20
92059-2237
Tube
|
92059-2237 |
— | ||
|
21
|
21
92059-2238
Tube
|
92059-2238 |
— | ||
|
22
|
22
92081-2329 SPRING |
92081-2329 |
US $0.40 |
||
|
23
|
23
220B0308
SCREW PAN HEAD 3X8
|
220B0308 |
— | ||
| replacement | |||||
|
23
|
23
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.79 |
||
|
24
|
24
220B0508
SCREW-PAN-CROS
|
220B0508 |
— | ||
| replacement | |||||
|
24
|
24
220AA0508 SCREW-PAN-CROS |
220AA0508 |
from US $0.78 |
||
|
25
|
25
221C0412
Screw-csk-cros
|
221C0412 |
— | ||
|
26
|
26
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
26
|
26
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
27
|
27
14024-2052 COVER |
14024-2052 |
US $4.05 |
||
|
28
|
28
14024-2089 COVER |
14024-2089 |
US $9.16 |
||
|
29
|
29
21176-2071 SENSOR |
21176-2071 |
US $16.63 |
||
|
30
|
30
27010-2138 SWITCH |
27010-2138 |
US $33.08 |
||
|
31
|
31
46102-2060 ROD |
46102-2060 |
US $10.70 |
||
|
32
|
32
92022-2030 WASHER |
92022-2030 |
US $0.56 |
||
|
33
|
33
92022-2228 WASHER |
92022-2228 |
US $3.35 |
||
|
34
|
34
92027-2095 COLLAR |
92027-2095 |
US $1.70 |
||
|
35
|
35
92077-2061 KNOB |
92077-2061 |
US $3.10 |
||
|
36
|
36
92144-2001 SPRING-ROD |
92144-2001 |
US $3.22 |
||
|
37
|
37
92144-2028 SPRING |
92144-2028 |
US $3.74 |
||
|
38
|
38
110R0508 BOLT (5X8) |
110R0508 |
US $0.63 |
||
|
39
|
39
130B0608
BOLT-FLANGED
|
130B0608 |
— | ||
| replacements | |||||
|
39
|
39
130AA0608 BOLT-FLANGED |
130AA0608 |
from US $1.05 |
||
|
39
|
39
130BA0608 BOLT-FLANGED |
130BA0608 |
from US $1 |
||
|
40
|
40
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
40
|
40
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
41
|
41
411B0500
W-PLAIN-S
|
411B0500 |
— | ||
| replacements | |||||
|
41
|
41
411AA0500 WASHER-PLAIN,5MM |
411AA0500 |
from US $0.88 |
||
|
41
|
41
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
42
|
42
411B0600 WASHER-PLAIN,6.5X13X1 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
42
|
42
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
43
|
43
92009-2239 SCREW |
92009-2239 |
US $0.29 |
||
|
44
|
44
186C0510
Bolt-upset-wp
|
186C0510 |
— | ||
|
45
|
45
186C0612
BOLT-UPSET-WP
|
186C0612 |
— | ||
| replacement | |||||
|
45
|
45
186AB0612 BOLT-UPSET-WP |
186AB0612 |
from US $1.09 |
||
