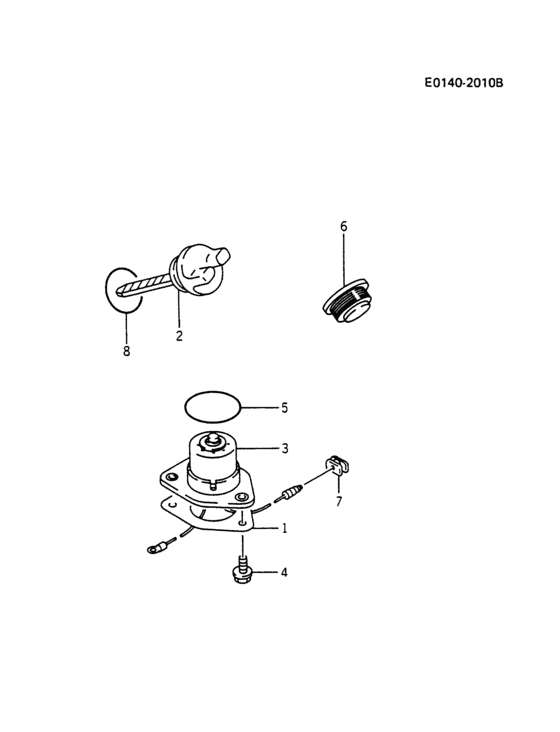

Lubrication-equipment b02/b04 Diagram Kawasaki IGD70A
- Engine Capacity
- 700
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13183-2008 PLATE |
13183-2008 |
US $2.77 |
||
|
2
|
2
16115-2069 CAP-OIL FILLER |
16115-2069 |
US $1.89 |
||
|
3
|
3
21176-2068 SENSOR |
21176-2068 |
US $49.48 |
||
| replacement | |||||
|
3
|
3
21176-2088 SENSOR |
21176-2088 |
US $49.48 |
||
|
4
|
4
92009-2213 SCREW |
92009-2213 |
US $0.29 |
||
|
5
|
5
92055-2076 O-RING |
92055-2076 |
US $2.50 |
||
|
6
|
6
92066-2003 PLUG OIL FILTER |
92066-2003 |
US $3.76 |
||
|
7
|
7
92071-2114 GROMMET |
92071-2114 |
US $0.67 |
||
|
8
|
8
670B2015 O RING,15MM |
670B2015 |
from US $1.77 |
||
