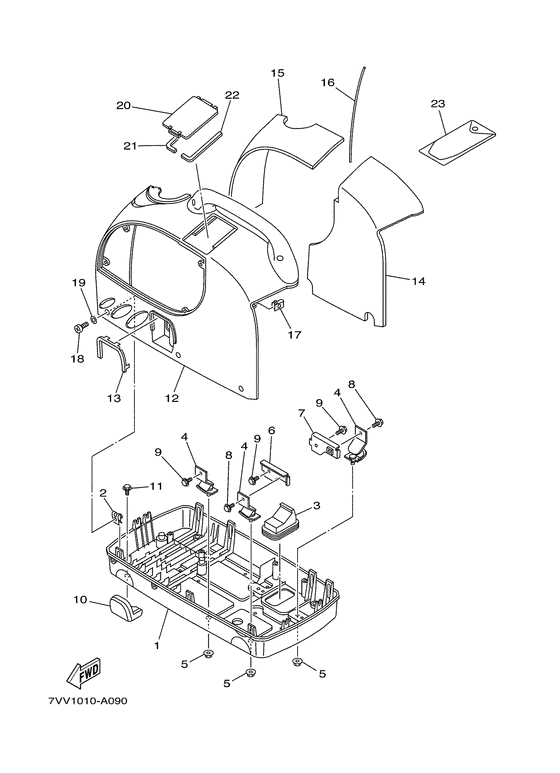

Frame Diagram Yamaha EF1000iS
- Year
- 2002
- Sales region
- France (030)
- Colour
- Purplish Blue Solid 3 (PBS3; 0714)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7VV-22881-01-00 Base, Mounting |
7VV-22881-01-00 |
from US $48.49 |
||
|
02
|
02
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
02
|
02
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
03
|
03
7VV-67617-00-00 Joint, Drain |
7VV-67617-00-00 |
from US $5.38 |
||
|
04
|
04
7VV-22891-00-00 Insulator, Mounting |
7VV-22891-00-00 |
from US $18.28 |
||
|
05
|
05
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
06
|
06
7VV-11011-00-00 Bracket, Engine 1 |
7VV-11011-00-00 |
from US $8.50 |
||
|
07
|
07
7VV-11012-00-00 Bracket, Engine 2 |
7VV-11012-00-00 |
from US $8.50 |
||
|
08
|
08
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.56 |
||
|
09
|
09
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
10
|
10
7VV-22895-00-00 Insulator, Mounting |
7VV-22895-00-00 |
from US $11.90 |
||
| replacement | |||||
|
10
|
10
7CG-22895-C1-00 COVER ASSY SET |
7CG-22895-C1-00 |
from US $9.70 |
||
|
11
|
11
90105-05002-00 Bolt, Flange |
90105-05002-00 |
from US $1.70 |
||
|
12
|
12
7VV-22865-00-00 Cover Assy Set |
7VV-22865-00-00 |
from US $78.75 |
||
| replacement | |||||
|
12
|
12
999-99040-16-00 element |
999-99040-16-00 |
from US $66.55 |
||
|
13
|
13
7VV-22825-00-00 Protector 1 |
7VV-22825-00-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
7VV-22825-01-00 Protector 1 |
7VV-22825-01-00 |
from US $3.26 |
||
|
14
|
14
7VV-22875-00-00 Seal 3 |
7VV-22875-00-00 |
from US $14.25 |
||
|
15
|
15
7VV-22876-00-00 Seal 4 |
7VV-22876-00-00 |
from US $10.87 |
||
|
16
|
16
7VV-23383-00-00 Cover, Dust Seal 1 |
7VV-23383-00-00 |
from US $1.42 |
||
|
17
|
17
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
18
|
18
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
20
|
20
7VV-22855-00-00 Cover Assy 3 |
7VV-22855-00-00 |
from US $11.09 |
||
| replacement | |||||
|
20
|
20
7VV-228C0-00-00 Cover Assy 3 |
7VV-228C0-00-00 |
from US $11.49 |
||
|
21
|
21
7VV-22886-00-00 Seal 9 |
7VV-22886-00-00 |
from US $1.28 |
||
|
22
|
22
7VV-22887-00-00 Seal 10 |
7VV-22887-00-00 |
from US $1.28 |
||
|
23
|
23
7VV-28100-00-00 Tool Kit |
7VV-28100-00-00 |
from US $15.02 |
||
