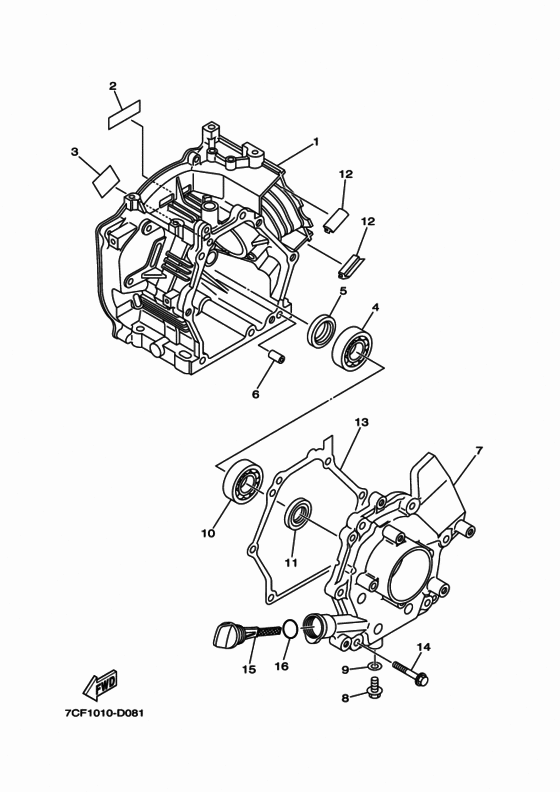

Crankcase Diagram Yamaha EF2000IS
- Model code
- 7CF1
- Year
- 2015
- Sales region
- Japan (020)
- Colour
- ﾊﾟ-ﾌﾟﾘﾂｼﾕ ﾌﾞﾙ- ｿﾘﾂﾄﾞ 3
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7CN-E5121-60-00 Crankcase 2 |
7CN-E5121-60-00 |
from US $333.94 |
||
|
2
|
2
7CP-E5315-00-00 Seal, Crankcase |
7CP-E5315-00-00 |
from US $1.35 |
||
|
3
|
3
7CN-E5472-00-00 Seal, Air Duct |
7CN-E5472-00-00 |
from US $1.70 |
||
|
4
|
4
93306-205XE-00 Bearing |
93306-205XE-00 |
from US $25.22 |
||
|
5
|
5
931-02258-06-00 Oil Seal |
931-02258-06-00 |
from US $9.63 |
||
| replacement | |||||
|
5
|
5
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
6
|
6
995-30080-16-00
Pin, Dowel
|
995-30080-16-00 |
— | ||
| replacement | |||||
|
6
|
6
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
7
|
7
7CN-E5421-80-00 Cover, Crankcase 2 |
7CN-E5421-80-00 |
from US $83.59 |
||
|
8
|
8
95022-10016-00 Bolt, Flange |
95022-10016-00 |
from US $1.56 |
||
|
9
|
9
90430-10801-00 Gasket |
90430-10801-00 |
from US $1.70 |
||
|
10
|
10
93306-255Y3-00 Bearing |
93306-255Y3-00 |
from US $17.99 |
||
|
11
|
11
931-02258-06-00 Oil Seal |
931-02258-06-00 |
from US $9.63 |
||
| replacement | |||||
|
11
|
11
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
12
|
12
7CP-E5494-00-00 Seal, Protector |
7CP-E5494-00-00 |
from US $2.55 |
||
|
13
|
13
7CN-E5451-01-00 Gasket, Crankcase Cover 1 |
7CN-E5451-01-00 |
from US $5.10 |
||
| replacement | |||||
|
13
|
13
7CN-E5451-10-00 GASKET, CRANKCASE CO |
7CN-E5451-10-00 |
from US $5.10 |
||
|
14
|
14
95822-08035-00 Bolt, Flange |
95822-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
15
|
15
7CN-E5362-20-00 Plug, Oil Level |
7CN-E5362-20-00 |
from US $7.23 |
||
|
16
|
16
93210-22805-00 O-Ring |
93210-22805-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
93210-22344-00 O-Ring |
93210-22344-00 |
from US $1.70 |
||
