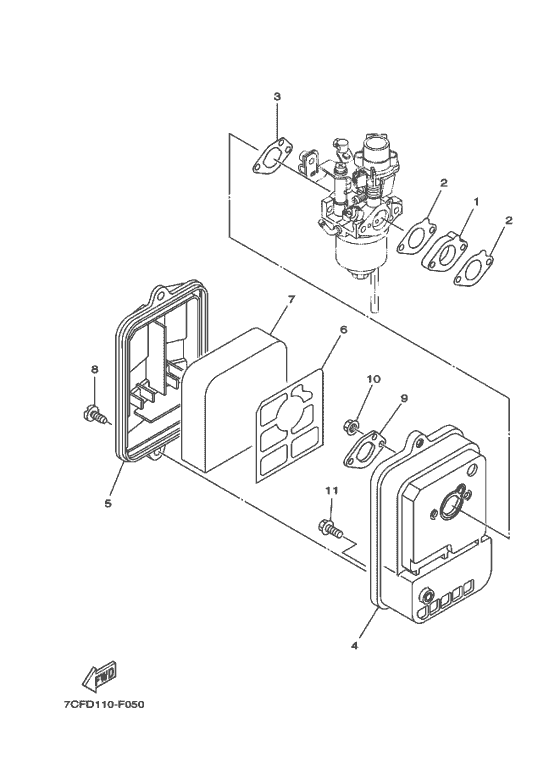

Intake Diagram Yamaha EF2000IS
- Model code
- 7CF1
- Year
- 2015
- Sales region
- Japan (020)
- Colour
- ﾊﾟ-ﾌﾟﾘﾂｼﾕ ﾌﾞﾙ- ｿﾘﾂﾄﾞ 3
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7CN-E3596-10-00 Joint, Carburetor 2 |
7CN-E3596-10-00 |
from US $4.64 |
||
|
2
|
2
7CN-E3557-12-00 Gasket |
7CN-E3557-12-00 |
from US $1.05 |
||
|
3
|
3
7CN-E3567-12-00 Gasket |
7CN-E3567-12-00 |
from US $1.05 |
||
|
4
|
4
7CN-E4411-40-00 Case, Air Cleaner 1 |
7CN-E4411-40-00 |
from US $13.02 |
||
|
5
|
5
7CN-E4412-00-00 Cap, Cleaner Case 1 |
7CN-E4412-00-00 |
from US $5.09 |
||
|
6
|
6
7CN-E4468-01-00 Plate, Element Fitting |
7CN-E4468-01-00 |
from US $1.80 |
||
|
7
|
7
7CN-E4451-00-00 Element, Air Cleaner |
7CN-E4451-00-00 |
from US $4.49 |
||
|
8
|
8
90154-06823-00 Screw, Binding |
90154-06823-00 |
from US $1.80 |
||
| replacement | |||||
|
8
|
8
90154-06014-00 Screw, Binding |
90154-06014-00 |
from US $1.80 |
||
|
9
|
9
7CN-E4477-20-00 Plate |
7CN-E4477-20-00 |
from US $3.14 |
||
|
10
|
10
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $0.90 |
||
|
11
|
11
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $0.90 |
||
| replacement | |||||
|
11
|
11
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $0.90 |
||
