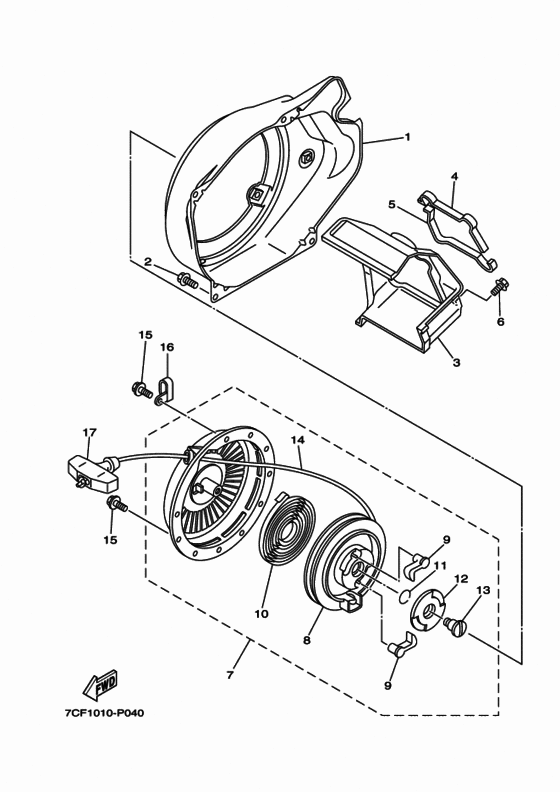

エアシユラウド & スタータ Diagram Yamaha EF2000IS
- Model code
- 7CF1
- Year
- 2015
- Sales region
- Japan (020)
- Colour
- ﾊﾟ-ﾌﾟﾘﾂｼﾕ ﾌﾞﾙ- ｿﾘﾂﾄﾞ 3
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7CN-E2610-21-00 Fan Case Assy |
7CN-E2610-21-00 |
from US $25.50 |
||
|
2
|
2
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
2
|
2
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
2
|
2
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
3
|
3
7CN-E2651-01-00 Air Shroud, Cylinder 1 |
7CN-E2651-01-00 |
from US $16.01 |
||
|
4
|
4
7CP-E2658-00-00 Damper, Air Shroud 1 |
7CP-E2658-00-00 |
from US $1.28 |
||
|
5
|
5
7CP-E2659-00-00 Damper, Air Shroud 2 |
7CP-E2659-00-00 |
from US $1.28 |
||
|
6
|
6
958-22060-12-00
Bolt, Flange
|
958-22060-12-00 |
— | ||
| replacements | |||||
|
6
|
6
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
6
|
6
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
7
|
7
7CP-E5710-02-00 Starter Assy |
7CP-E5710-02-00 |
from US $64.80 |
||
|
8
|
8
7CN-E5714-02-00 Drum, Sheave |
7CN-E5714-02-00 |
from US $10.06 |
||
| replacement | |||||
|
8
|
8
7CN-E5714-03-00 DRUM, SHEAVE |
7CN-E5714-03-00 |
from US $10.06 |
||
|
9
|
9
7CN-E5741-01-00 Pawl, Drive |
7CN-E5741-01-00 |
from US $2.27 |
||
|
10
|
10
7CN-E5713-00-00 Spring, Starter |
7CN-E5713-00-00 |
from US $14.85 |
||
|
11
|
11
7CN-E5715-00-00 Spring, Friction |
7CN-E5715-00-00 |
from US $1.28 |
||
|
12
|
12
7CN-E5716-01-00 Plate, Drive |
7CN-E5716-01-00 |
from US $3.40 |
||
|
13
|
13
7CN-E5793-00-00 Screw |
7CN-E5793-00-00 |
from US $2.27 |
||
|
14
|
14
7CP-E5751-00-00 Wire, Starter |
7CP-E5751-00-00 |
from US $6.80 |
||
|
15
|
15
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
16
|
16
7CN-F627E-00-00 Clamp, Wire |
7CN-F627E-00-00 |
from US $1.98 |
||
|
17
|
17
7TD-15755-00-00 Handle, Starter |
7TD-15755-00-00 |
from US $5.38 |
||
| replacement | |||||
|
17
|
17
7TD-15755-01-00 Handle, Starter |
7TD-15755-01-00 |
from US $5.38 |
||
