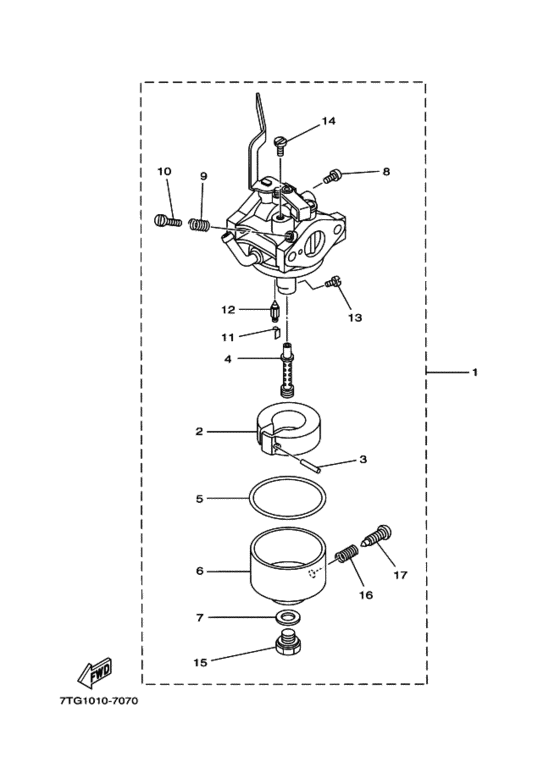

Carburetor Diagram Yamaha EF2300A
- Model code
- EF2300A
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7NJ-14101-00-00 Carburetor Assembly 1キヤブレタアセンブリ １; |
7NJ-14101-00-00 |
US $169.94 |
||
|
2
|
2
7LG-14185-00-00 Float．フロート; |
7LG-14185-00-00 |
from US $19.41 |
||
|
3
|
3
22F-14186-00-00 Pin, Float．ピン，フロート; |
22F-14186-00-00 |
from US $2.75 |
||
|
4
|
4
7NJ-1495F-1A-00 Nozzle, Main．ノズル，メイン; |
7NJ-1495F-1A-00 |
from US $15.87 |
||
|
5
|
5
7G0-14184-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバ; |
7G0-14184-00-00 |
from US $7.65 |
||
|
6
|
6
7EG-14181-00-00 Body, Float Chamber 1．ボデー，フロートチヤンバ １; |
7EG-14181-00-00 |
from US $52.64 |
||
|
7
|
7
7G0-14227-00-00 Washer．ワツシヤ; |
7G0-14227-00-00 |
from US $2.55 |
||
|
8
|
8
78F-14486-00-00 Screw, Rod．スクリユ，ロツド; |
78F-14486-00-00 |
from US $3.54 |
||
|
9
|
9
73A-14212-00-00 Spring．スプリング; |
73A-14212-00-00 |
from US $1.70 |
||
|
10
|
10
7LV-14211-00-00 Screw, Pilot Adjusting．スクリユ，パイロツトアジヤステイング; |
7LV-14211-00-00 |
from US $3.97 |
||
|
11
|
11
7EG-14159-00-00 Clip．クリツプ; |
7EG-14159-00-00 |
from US $2.55 |
||
|
12
|
12
7LG-14150-11-00 Needle Assy．ニードルアセンブリ; |
7LG-14150-11-00 |
from US $26.33 |
||
|
13
|
13
1HX-1423E-36-00 Jet, Main (#91.3)．ジエツト，メイン; ＃９１．３ |
1HX-1423E-36-00 |
US $12.61 |
||
|
14
|
14
620-14142-42-00 Jet, Main (#42.5)．ジエツト， パイロツト ; ＃４２．５ |
620-14142-42-00 |
US $17.43 |
||
|
15
|
15
7NJ-14162-00-00 Bolt, Holding．ボルト，ホールデイング; |
7NJ-14162-00-00 |
from US $4.11 |
||
|
16
|
16
73A-14212-00-00 Spring．スプリング; |
73A-14212-00-00 |
from US $1.70 |
||
|
17
|
17
7E1-14191-00-00 Plug, Drain．プラグ，ドレーン; |
7E1-14191-00-00 |
from US $4.39 |
