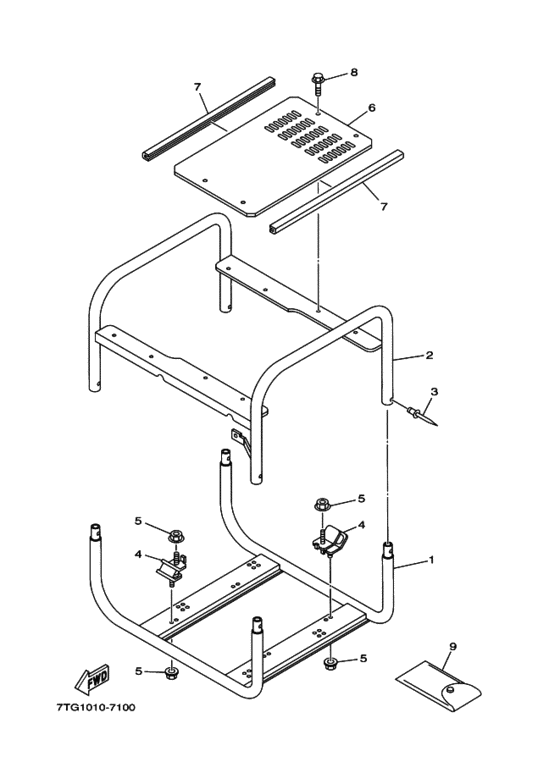

Frame Diagram Yamaha EF2300A
- Model code
- EF2300A
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7NJ-22840-00-00 Frame Compフレームコンプリート; |
7NJ-22840-00-00 |
US $94.66 |
||
|
2
|
2
7TG-22850-00-00
Frame Comp. 2
|
7TG-22850-00-00 |
— | ||
|
3
|
3
90267-48N00-00 Rivet, Blind |
90267-48N00-00 |
from US $1.28 |
||
|
4
|
4
7LG-22891-00-00 Insulator, Mountingインシユレータ，マウンテイング; |
7LG-22891-00-00 |
from US $15.44 |
||
|
5
|
5
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
6
|
6
7TG-22862-00-00 Cover, Upperカバー， アツパー; |
7TG-22862-00-00 |
US $107.57 |
||
|
7
|
7
7TG-2214F-00-00 Damper 1 |
7TG-2214F-00-00 |
from US $1.35 |
||
|
8
|
8
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
9
|
9
7H6-28100-00-00 Tool Kitツールキツト; |
7H6-28100-00-00 |
from US $14.88 |
||
| replacement | |||||
|
9
|
9
7CT-F8100-00-00 Tool Kitツールキツト; |
7CT-F8100-00-00 |
from US $14.88 |
||
