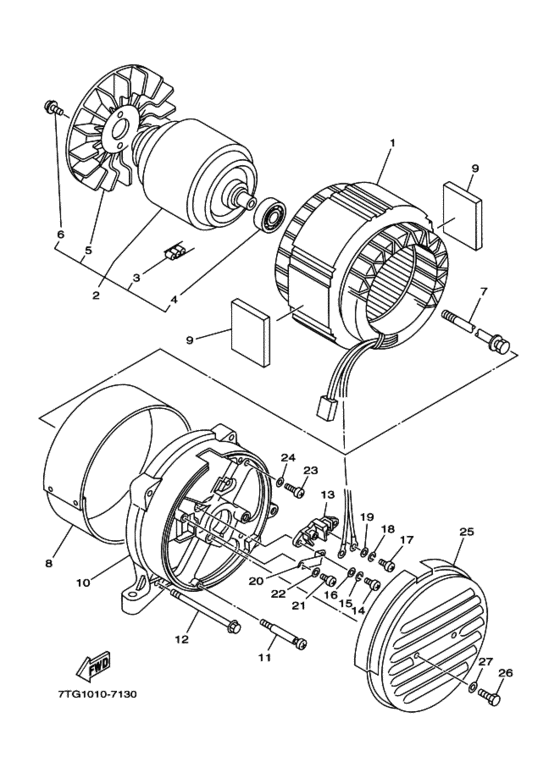

Generator Diagram Yamaha EF2300A
- Model code
- EF2300A
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7NJ-87150-00-00 Stator Assyステータアセンブリ; ６０ＨＺ用 |
7NJ-87150-00-00 |
US $547.27 |
||
|
1
|
1
7NJ-87150-10-00 Stator Assyステータアセンブリ; ５０ＨＺ用 |
7NJ-87150-10-00 |
US $547.27 |
||
|
2
|
2
7NJ-87160-00-00 Rotor Assemblyロータアセンブリ; |
7NJ-87160-00-00 |
from US $564.08 |
||
|
3
|
3
7NJ-87115-00-00 Rectifier Assembly 2．レクチフアイヤアセンブリ ２; |
7NJ-87115-00-00 |
from US $25.85 |
||
|
4
|
4
933-06203-45-00 Bearing．ベアリング; |
933-06203-45-00 |
from US $25.93 |
||
| replacement | |||||
|
4
|
4
93306-20328-00 Bearing．ベアリング; |
93306-20328-00 |
from US $25.93 |
||
|
5
|
5
7LG-87172-01-00 Fan, Generatorフアン，ゼネレータ; |
7LG-87172-01-00 |
US $27.72 |
||
|
6
|
6
90159-06032-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
90159-06032-00 |
from US $2.69 |
||
|
7
|
7
7LG-81152-00-00 Boltボルト; |
7LG-81152-00-00 |
from US $9.92 |
||
|
8
|
8
7NJ-87153-00-00 Cover, Statorカバー，ステータ; |
7NJ-87153-00-00 |
from US $16.04 |
||
|
9
|
9
7LG-87159-00-00 Seal, Statorシール，スタータ; |
7LG-87159-00-00 |
from US $1.13 |
||
|
10
|
10
7NJ-87131-00-00 Frame, Rearフレーム，リヤ; |
7NJ-87131-00-00 |
from US $112.05 |
||
|
11
|
11
7NJ-87192-00-00 Screw, Statorスクリユ，ステータ; |
7NJ-87192-00-00 |
from US $4.04 |
||
|
12
|
12
95827-06105-00 Bolt, Flange |
95827-06105-00 |
from US $2.83 |
||
|
13
|
13
7NJ-87220-00-00 Terminal Sub Assembly 1ターミナルサブアセンブリ １; |
7NJ-87220-00-00 |
from US $15.58 |
||
|
14
|
14
985-07050-14-00 Screw, Pan Headスクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.34 |
||
|
15
|
15
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
16
|
16
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
17
|
17
985-07050-14-00 Screw, Pan Headスクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.34 |
||
|
18
|
18
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
19
|
19
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
20
|
20
7NJ-88195-00-00 Holder, Connectorホルダ，コネクタ; |
7NJ-88195-00-00 |
from US $10.28 |
||
|
21
|
21
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
21
|
21
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
22
|
22
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
23
|
23
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
23
|
23
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
24
|
24
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
25
|
25
7LG-87174-00-98 Cover, Rear Endカバー，リヤエンド; |
7LG-87174-00-98 |
from US $14.96 |
||
|
26
|
26
97007-06010-00 Boltボルト; |
97007-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
97017-06010-00 Boltボルト; |
97017-06010-00 |
from US $1.34 |
||
|
27
|
27
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
